Magnitude |
:4 |
| Date & Time (UTC) | 2020-04-10 13:19:54.8 |
| Date & Time (Local) | 1399/1/22 17:49:54.8 |

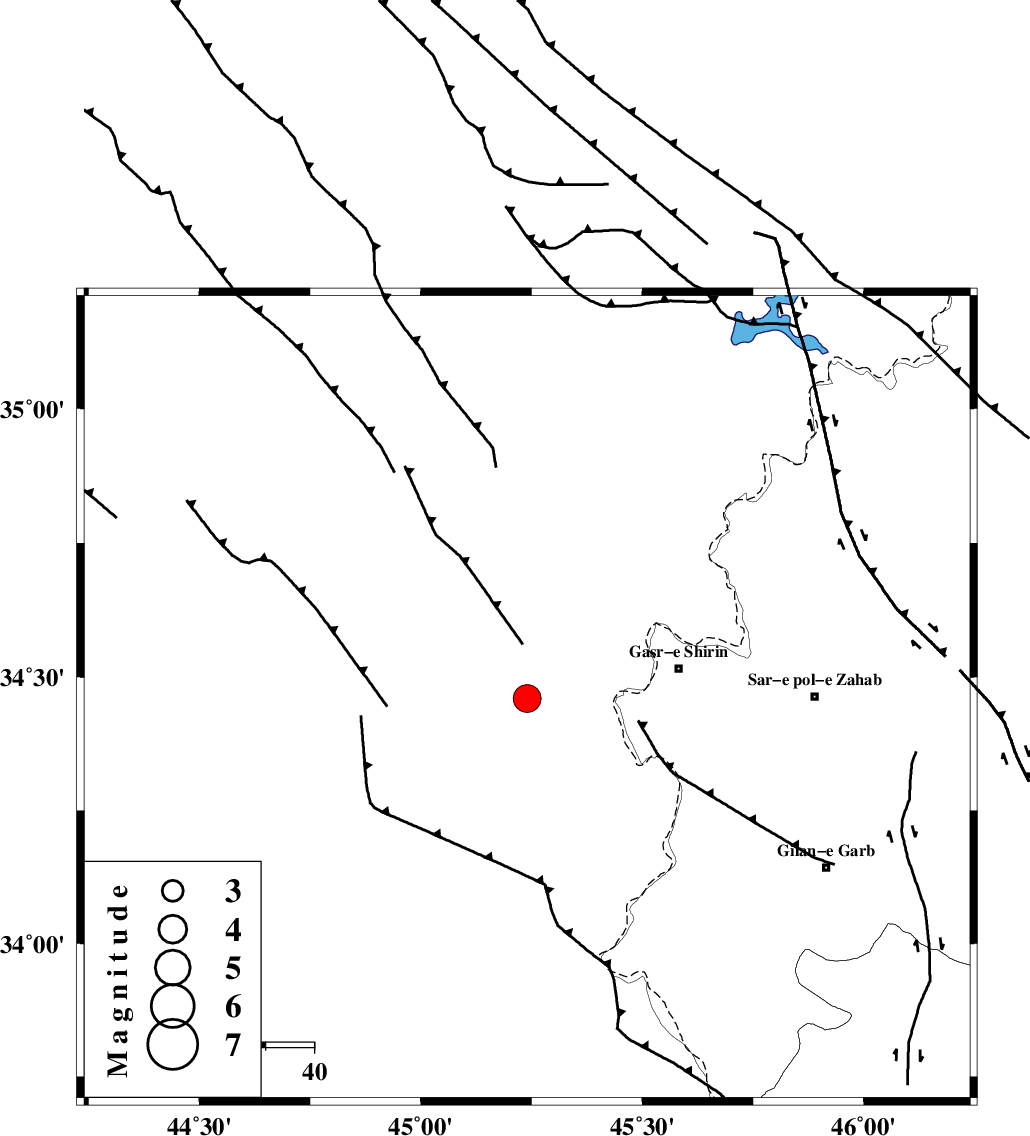

| Location | Lat:34.46 Lon: 45.24 |
| Region | Iraq, 32 km -West of Qasr-E-Shirin |
Nearest Cities |
|
| 22 km North West of Khosravi, Kermanshah Province | |
| 32 km West of Qasr-E-Shirin, Kermanshah Province | |
| 33 km North West of Seyyed sohrab, Kermanshah Province | |
| 40 km West of Aqabarar, Kermanshah Province | |
| 49 km West of Qareh belagh, Kermanshah Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| MFF8 (Length: 48 km) , Distance to epicenter: 49 km | |
| ZFF4 (Length: 128 km) , Distance to epicenter: 63 km | |
| MFF7 (Length: 99 km) , Distance to epicenter: 83 km | |
| Number of Phases | 17 |
| RMS | 0.4 |
| Number of Stations | 14 |
| Error in Latitude | >4 km |
| Error in Longitude | 0 km |
| Error in Depth | 9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 152925 | IIEES SC | SRSL | Z | 490 | 1 | 2020-04-10 13:20:54 | 2020-04-12 12:53:00 | n |
| 152926 | IIEES SC | MAHB | Z | 370 | 1 | 2020-04-10 13:21:23 | 2020-04-12 12:53:00 | n |
| 152927 | IIEES SC | AZR | Z | 680 | 1 | 2020-04-10 13:21:53 | 2020-04-12 12:53:00 | n |
| 152928 | IIEES SC | ZNJK | Z | 4.2 | 1 | 2020-04-10 13:22:09 | 2020-04-12 12:53:00 | n |
| 152929 | IIEES SC | QABG | Z | 23 | 1 | 2020-04-10 13:22:08 | 2020-04-12 12:53:00 | n |
| 152930 | IIEES SC | GTMR | Z | 220 | 1 | 2020-04-10 13:21:41 | 2020-04-12 12:53:00 | n |
| 152931 | IIEES SC | KHMZ | Z | 100 | 1 | 2020-04-10 13:22:17 | 2020-04-12 12:53:00 | n |
| 152932 | IIEES SC | AMIS | Z | 150 | 1 | 2020-04-10 13:22:20 | 2020-04-12 12:53:00 | n |
| 152933 | IIEES SC | THKV | Z | 50 | 1 | 2020-04-10 13:23:02 | 2020-04-12 12:53:00 | n |
| 152934 | IIEES SC | GHVR | Z | 380 | 1 | 2020-04-10 13:21:48 | 2020-04-12 12:53:00 | n |
| 152935 | IIEES SC | CHTH | Z | 16 | 1 | 2020-04-10 13:22:46 | 2020-04-12 12:53:00 | n |
| 152936 | IIEES SC | KLNJ | Z | 55 | 1 | 2020-04-10 13:22:48 | 2020-04-12 12:53:00 | n |
| 152937 | IIEES SC | NASN | Z | 23 | 1 | 2020-04-10 13:22:58 | 2020-04-12 12:53:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | SRSL | N | IS | I | 2020-04-10 13:20:50 | -0.3 | y | 200 | 5 | |||
| IIEES SC | SRSL | Z | IP | I | 2020-04-10 13:20:26 | 0 | y | 200 | 5 | |||
| IIEES SC | SNGE | N | IS | I | 2020-04-10 13:21:00 | 7 | n | 4 | 200 | 70 | ||
| IIEES SC | SNGE | Z | IP | I | 2020-04-10 13:20:34 | 6.4 | n | 4 | 200 | 70 | ||
| IIEES SC | MAHB | Z | IP | I | 2020-04-10 13:20:35 | 0.3 | y | 255 | 9 | |||
| IIEES SC | NSR4 | Z | IP | I | 2020-04-10 13:20:45 | 0.9 | n | 4 | 333 | 165 | ||
| IIEES SC | AZR | Z | IP | I | 2020-04-10 13:20:48 | 0.4 | y | 366 | 11 | |||
| IIEES SC | ZNJK | Z | IP | I | 2020-04-10 13:20:52 | -0.4 | y | 400 | 52 | |||
| IIEES SC | QABG | Z | IP | I | 2020-04-10 13:20:55 | 0.2 | y | 422 | 71 | |||
| IIEES SC | GTMR | Z | IP | I | 2020-04-10 13:20:55 | -0.4 | y | 422 | 122 | |||
| IIEES SC | KHMZ | Z | IP | I | 2020-04-10 13:20:58 | -0.1 | y | 444 | 100 | |||
| IIEES SC | AMIS | Z | IP | I | 2020-04-10 13:21:03 | -0.5 | y | 489 | 129 | |||
| IIEES SC | THKV | Z | IP | I | 2020-04-10 13:21:11 | 1.1 | y | 533 | 73 | |||
| IIEES SC | GHVR | Z | IP | I | 2020-04-10 13:21:11 | 0.3 | y | 556 | 90 | |||
| IIEES SC | CHTH | Z | IP | I | 2020-04-10 13:21:13 | 1.2 | y | 556 | 73 | |||
| IIEES SC | KLNJ | Z | IP | I | 2020-04-10 13:21:30 | -0.6 | y | 711 | 123 | |||
| IIEES SC | NASN | Z | IP | I | 2020-04-10 13:21:33 | -0.3 | y | 722 | 105 | |||
