Magnitude |
:3.2 |
| Date & Time (UTC) | 2020-04-18 21:43:06.6 |
| Date & Time (Local) | 1399/1/31 02:13:06.6 |

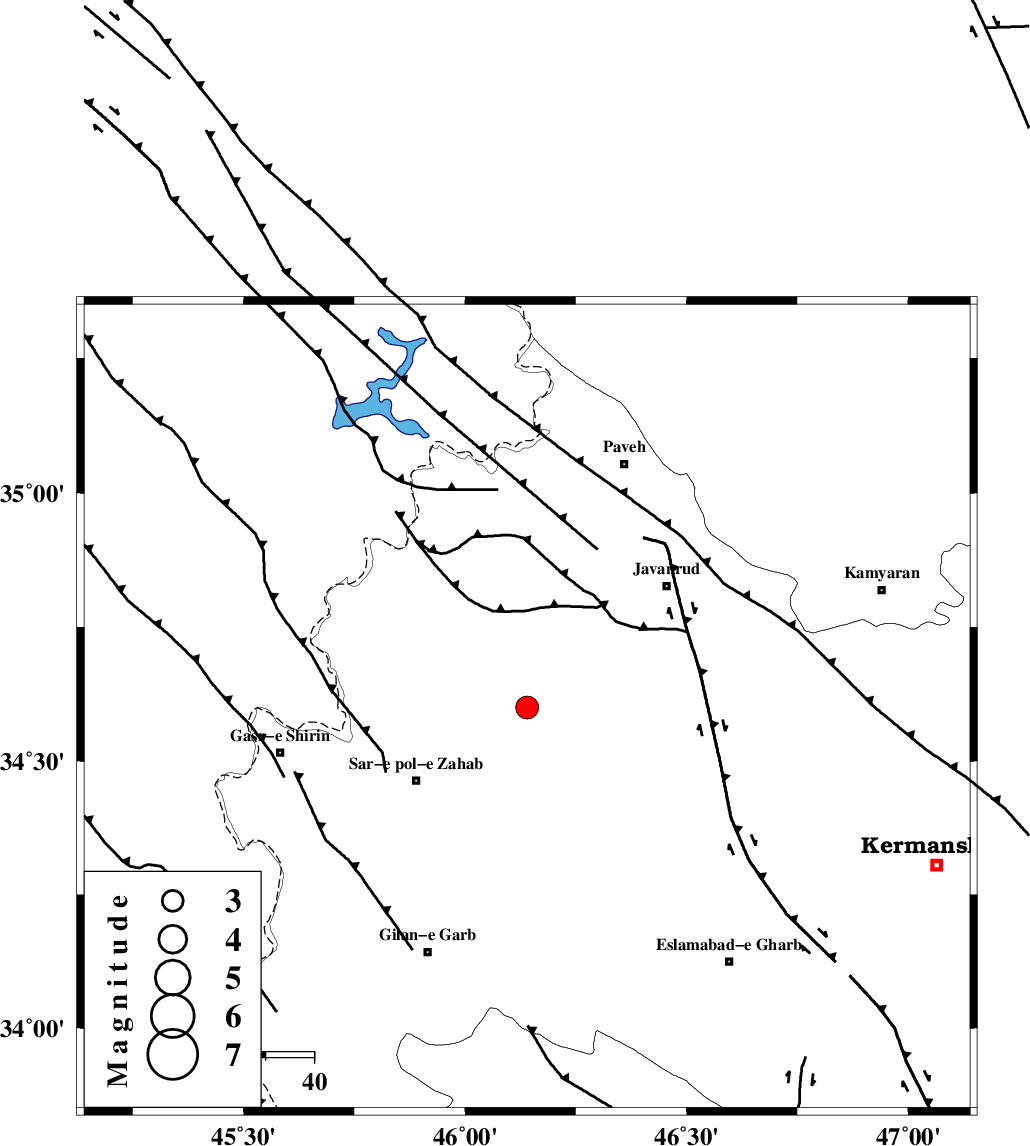

| Location | Lat:34.6 Lon: 46.14 |
| Region | Kermanshah Province, 28 km North-East of Sar-e pol-e zahab |
Nearest Cities |
|
| 14 km South of Qolqoleh, Kermanshah Province | |
| 18 km West of Mirabad, Kermanshah Province | |
| 19 km North of Rijab, Kermanshah Province | |
| 20 km North West of Zavleh olia, Kermanshah Province | |
| 21 km East of Bazmirabad, Kermanshah Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| HZF4 (Length: 492 km) , Distance to epicenter: 19 km | |
| MFF8 (Length: 48 km) , Distance to epicenter: 25 km | |
| SARTAKHT_F (Length: 78 km) , Distance to epicenter: 70 km | |
| Number of Phases | 11 |
| RMS | 0.6 |
| Number of Stations | 8 |
| Error in Latitude | >5 km |
| Error in Longitude | 0 km |
| Error in Depth | 18 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 153086 | IIEES SC | SRSL | Z | 370 | 1 | 2020-04-18 21:44:07 | 2020-04-19 10:09:00 | n |
| 153087 | IIEES SC | MAHB | Z | 200 | 1 | 2020-04-18 21:44:20 | 2020-04-19 10:09:00 | n |
| 153088 | IIEES SC | ZNJK | Z | 4.7 | 1 | 2020-04-18 21:44:59 | 2020-04-19 10:09:00 | n |
| 153089 | IIEES SC | QABG | Z | 5.3 | 1 | 2020-04-18 21:44:50 | 2020-04-19 10:09:00 | n |
| 153090 | IIEES SC | AZR | Z | 280 | 1 | 2020-04-18 21:44:56 | 2020-04-19 10:09:00 | n |
| 153091 | IIEES SC | GTMR | Z | 28 | 1 | 2020-04-18 21:45:05 | 2020-04-19 10:09:00 | n |
| 153092 | IIEES SC | KHMZ | Z | 26 | 1 | 2020-04-18 21:45:04 | 2020-04-19 10:09:00 | n |
| 153093 | IIEES SC | GRMI | Z | 4.4 | 1 | 2020-04-18 21:45:37 | 2020-04-19 10:09:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | SNGE | Z | IP | I | 2020-04-18 21:43:30 | 3 | n | 4 | 122 | 64 | ||
| IIEES SC | SRSL | Z | IP | I | 2020-04-18 21:43:37 | -0.8 | y | 189 | 340 | |||
| IIEES SC | MAHB | Z | IP | I | 2020-04-18 21:43:45 | 0.5 | y | 244 | 351 | |||
| IIEES SC | ZNJK | Z | IP | I | 2020-04-18 21:43:55 | 0.4 | y | 322 | 45 | |||
| IIEES SC | QABG | Z | IP | I | 2020-04-18 21:43:56 | -0.5 | y | 333 | 69 | |||
| IIEES SC | AZR | Z | IP | I | 2020-04-18 21:43:59 | 2 | y | 344 | 358 | |||
| IIEES SC | GTMR | Z | IP | I | 2020-04-18 21:43:59 | 0.1 | y | 366 | 130 | |||
| IIEES SC | KHMZ | Z | IP | I | 2020-04-18 21:44:00 | -0.1 | y | 366 | 105 | |||
| IIEES SC | GHVR | Z | IP | I | 2020-04-18 21:44:19 | 5.9 | n | 4 | 467 | 92 | ||
| IIEES SC | CHTH | Z | IP | I | 2020-04-18 21:44:22 | 8.7 | n | 4 | 478 | 72 | ||
| IIEES SC | GRMI | Z | IP | I | 2020-04-18 21:44:16 | -0.1 | y | 489 | 19 | |||
