Magnitude |
:3.3 |
| Date & Time (UTC) | 2020-04-20 12:22:41.1 |
| Date & Time (Local) | 1399/2/1 16:52:41.1 |

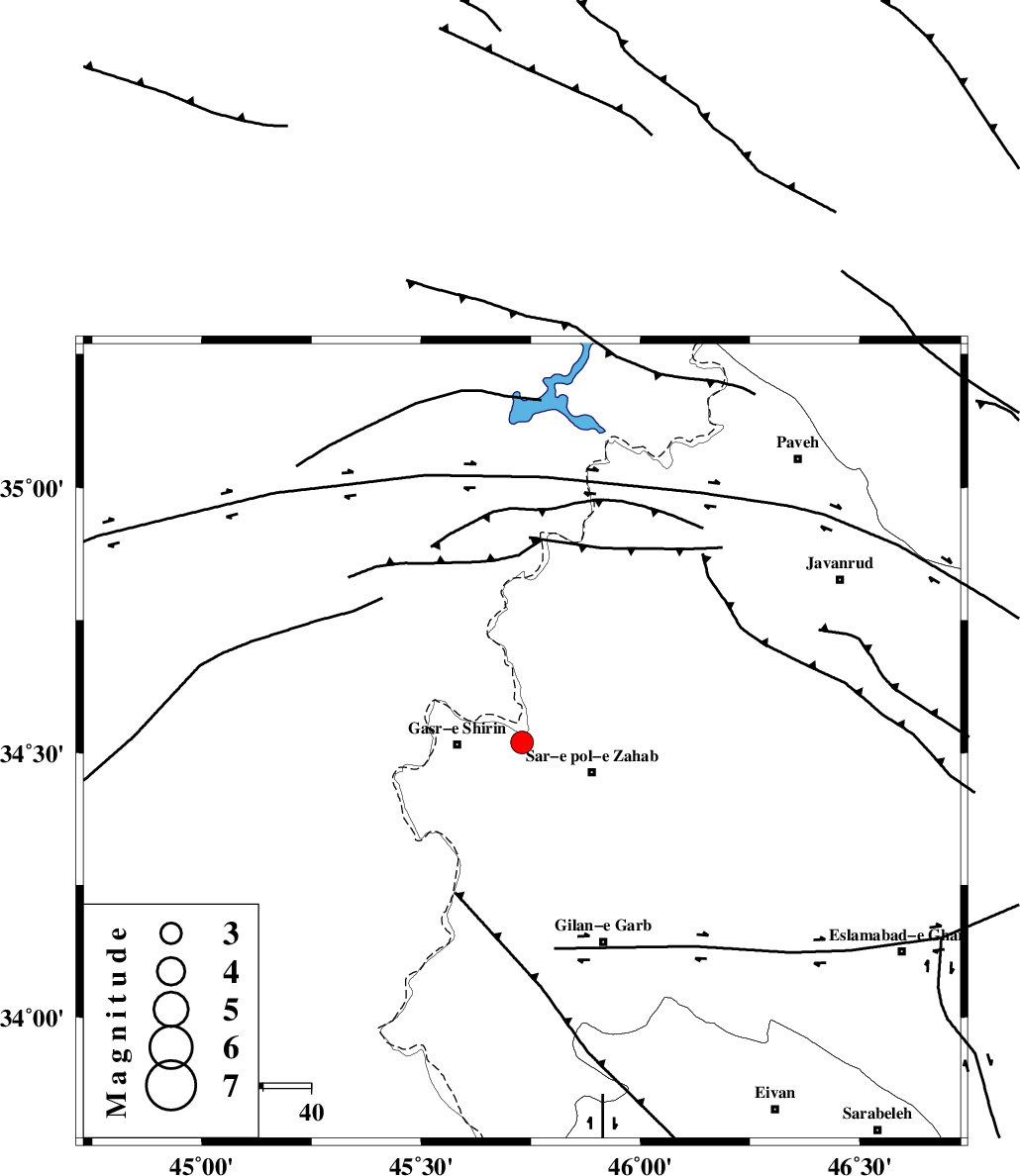

| Location | Lat:34.52 Lon: 45.73 |
| Region | Kermanshah Province, 13 km -East of Qasr-E-Shirin |
Nearest Cities |
|
| 6 km North of Qareh belagh, Kermanshah Province | |
| 6 km of Mirmiru, Kermanshah Province | |
| 6 km of Aqabarar, Kermanshah Province | |
| 13 km North East of Qasr-E-Shirin, Kermanshah Province | |
| 15 km North East of Seyyed sohrab, Kermanshah Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| MFF8 (Length: 48 km) , Distance to epicenter: 8 km | |
| HZF4 (Length: 492 km) , Distance to epicenter: 53 km | |
| ZFF4 (Length: 128 km) , Distance to epicenter: 69 km | |
| Number of Phases | 15 |
| RMS | 0.5 |
| Number of Stations | 10 |
| Error in Latitude | >5 km |
| Error in Longitude | 0 km |
| Error in Depth | 15 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 153347 | IIEES SC | SRSL | Z | 190 | 1 | 2020-04-20 12:23:40 | 2020-04-28 08:34:00 | n |
| 153348 | IIEES SC | MAHB | Z | 130 | 1 | 2020-04-20 12:24:04 | 2020-04-28 08:34:00 | n |
| 153349 | IIEES SC | AZR | Z | 320 | 1 | 2020-04-20 12:24:33 | 2020-04-28 08:34:00 | n |
| 153350 | IIEES SC | ZNJK | Z | 4.2 | 1 | 2020-04-20 12:25:03 | 2020-04-28 08:34:00 | n |
| 153351 | IIEES SC | QABG | Z | 7.2 | 1 | 2020-04-20 12:24:42 | 2020-04-28 08:34:00 | n |
| 153352 | IIEES SC | GTMR | Z | 54 | 1 | 2020-04-20 12:24:37 | 2020-04-28 08:34:00 | n |
| 153353 | IIEES SC | GHVR | Z | 300 | 1 | 2020-04-20 12:24:10 | 2020-04-28 08:34:00 | n |
| 153354 | IIEES SC | GRMI | Z | 8.8 | 1 | 2020-04-20 12:25:32 | 2020-04-28 08:34:00 | n |
| 153355 | IIEES SC | CHTH | Z | 7.9 | 1 | 2020-04-20 12:25:46 | 2020-04-28 08:34:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | SNGE | N | IS | I | 2020-04-20 12:23:34 | 6.4 | n | 4 | 155 | 67 | ||
| IIEES SC | SNGE | Z | IP | I | 2020-04-20 12:23:13 | 5.3 | n | 4 | 155 | 67 | ||
| IIEES SC | SRSL | Z | IP | I | 2020-04-20 12:23:12 | 0 | y | 189 | 352 | |||
| IIEES SC | MAHB | Z | IP | I | 2020-04-20 12:23:19 | -0.6 | y | 244 | 360 | |||
| IIEES SC | AZR | Z | IP | I | 2020-04-20 12:23:33 | 0.8 | y | 355 | 4 | |||
| IIEES SC | ZNJK | Z | IP | I | 2020-04-20 12:23:33 | -0.1 | y | 355 | 48 | |||
| IIEES SC | QABG | Z | IP | I | 2020-04-20 12:23:36 | 0.9 | y | 378 | 69 | |||
| IIEES SC | GTMR | Z | IP | I | 2020-04-20 12:23:37 | 0 | y | 389 | 126 | |||
| IIEES SC | KHMZ | N | IS | I | 2020-04-20 12:24:19 | -3.6 | n | 4 | 400 | 103 | ||
| IIEES SC | KHMZ | Z | IP | I | 2020-04-20 12:23:47 | 8.8 | n | 4 | 400 | 103 | ||
| IIEES SC | AMIS | Z | IP | I | 2020-04-20 12:23:44 | -1.3 | n | 4 | 455 | 134 | ||
| IIEES SC | GHVR | Z | IP | I | 2020-04-20 12:23:51 | -0.3 | y | 511 | 91 | |||
| IIEES SC | GRMI | Z | IP | I | 2020-04-20 12:23:52 | -0.2 | y | 511 | 22 | |||
| IIEES SC | CHTH | Z | IP | I | 2020-04-20 12:23:53 | -0.3 | y | 511 | 73 | |||
| IIEES SC | KLNJ | Z | IP | I | 2020-04-20 12:24:13 | -0.1 | y | 678 | 125 | |||
