Magnitude |
:3 |
| Date & Time (UTC) | 2020-05-10 21:10:15.3 |
| Date & Time (Local) | 1399/2/22 01:40:15.3 |
| Location | Lat:33.77 Lon: 48.1 |
| Region | Lorestan Province, 22 km -West of Aleshtar |
Nearest Cities |
|
| 14 km South of Firuz Abad, Lorestan Province | |
| 19 km West of Siyahpush, Lorestan Province | |
| 20 km South West of Dehrahim, Lorestan Province | |
| 22 km West of Aleshtar, Lorestan Province | |
| 24 km North of Sarabboreh, Lorestan Province | |
| Depth | 10 km |
| Agency | |

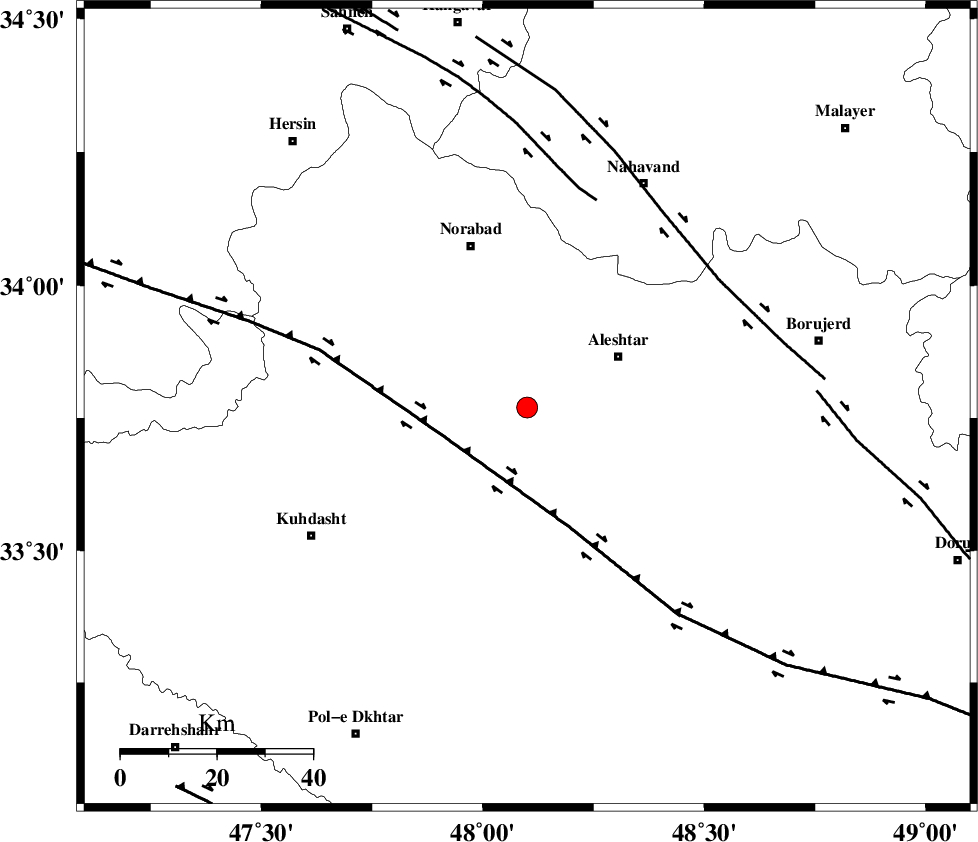

Faults within 150 km: |
|
| HZF4 (Length: 492 km) , Distance to epicenter: 19 km | |
| SAHANEH_F (Length: 77 km) , Distance to epicenter: 46 km | |
| NAHAVAND_F (Length: 102 km) , Distance to epicenter: 48 km | |
| Number of Phases | 15 |
| RMS | 0.7 |
| Number of Stations | 15 |
| Error in Latitude | >2 km |
| Error in Longitude | 0 km |
| Error in Depth | 10 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 153780 | IIEES SC | SNGE | Z | 130 | 1 | 2020-05-10 21:11:09 | 2020-05-11 02:20:00 | n |
| 153781 | IIEES SC | GTMR | Z | 210 | 1 | 2020-05-10 21:11:06 | 2020-05-11 02:20:00 | n |
| 153782 | IIEES SC | KHMZ | Z | 120 | 1 | 2020-05-10 21:11:08 | 2020-05-11 02:20:00 | n |
| 153783 | IIEES SC | ILBA | Z | 45 | 1 | 2020-05-10 21:11:13 | 2020-05-11 02:20:00 | n |
| 153784 | IIEES SC | QABG | Z | 7.8 | 1 | 2020-05-10 21:11:14 | 2020-05-11 02:20:00 | n |
| 153785 | IIEES SC | AMIS | Z | 59 | 1 | 2020-05-10 21:11:33 | 2020-05-11 02:20:00 | n |
| 153786 | IIEES SC | GHVR | Z | 560 | 1 | 2020-05-10 21:11:30 | 2020-05-11 02:20:00 | n |
| 153787 | IIEES SC | ZNJK | Z | 6.9 | 1 | 2020-05-10 21:11:22 | 2020-05-11 02:20:00 | n |
| 153788 | IIEES SC | THKV | Z | 25 | 1 | 2020-05-10 21:12:04 | 2020-05-11 02:20:00 | n |
| 153789 | IIEES SC | CHTH | Z | 12 | 1 | 2020-05-10 21:12:07 | 2020-05-11 02:20:00 | n |
| 153790 | IIEES SC | SRSL | Z | 19 | 1 | 2020-05-10 21:12:14 | 2020-05-11 02:20:00 | n |
| 153791 | IIEES SC | DAMV | Z | 15 | 1 | 2020-05-10 21:12:23 | 2020-05-11 02:20:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | SNGE | N | IS | I | 2020-05-10 21:11:02 | -0.2 | y | 166 | 335 | |||
| IIEES SC | SNGE | Z | IP | I | 2020-05-10 21:10:43 | 0.9 | y | 166 | 335 | |||
| IIEES SC | GTMR | N | IS | I | 2020-05-10 21:11:05 | 0.6 | y | 166 | 147 | |||
| IIEES SC | GTMR | Z | IP | I | 2020-05-10 21:10:42 | -0.7 | y | 166 | 147 | |||
| IIEES SC | KHMZ | N | IS | I | 2020-05-10 21:11:04 | -0.8 | y | 177 | 91 | |||
| IIEES SC | KHMZ | Z | IP | I | 2020-05-10 21:10:44 | 0.6 | y | 177 | 91 | |||
| IIEES SC | ILBA | Z | IP | I | 2020-05-10 21:10:44 | -0.1 | y | 177 | 265 | |||
| IIEES SC | QABG | Z | IP | I | 2020-05-10 21:10:55 | 0.5 | y | 255 | 32 | |||
| IIEES SC | AMIS | Z | IP | I | 2020-05-10 21:10:55 | -0.2 | y | 255 | 155 | |||
| IIEES SC | GHVR | Z | IP | I | 2020-05-10 21:11:02 | 1.2 | y | 300 | 75 | |||
| IIEES SC | ZNJK | Z | IP | I | 2020-05-10 21:11:02 | -1.5 | y | 322 | 9 | |||
| IIEES SC | THKV | Z | IP | I | 2020-05-10 21:11:08 | 1.2 | y | 344 | 47 | |||
| IIEES SC | CHTH | Z | IP | I | 2020-05-10 21:11:07 | -1.1 | y | 366 | 49 | |||
| IIEES SC | SRSL | Z | IP | I | 2020-05-10 21:11:09 | 0.7 | y | 366 | 318 | |||
| IIEES SC | DAMV | Z | IP | I | 2020-05-10 21:11:14 | -0.5 | y | 411 | 60 | |||
