Magnitude |
:3.4 |
| Date & Time (UTC) | 2020-05-11 23:47:28.0 |
| Date & Time (Local) | 1399/2/23 04:17:28.0 |

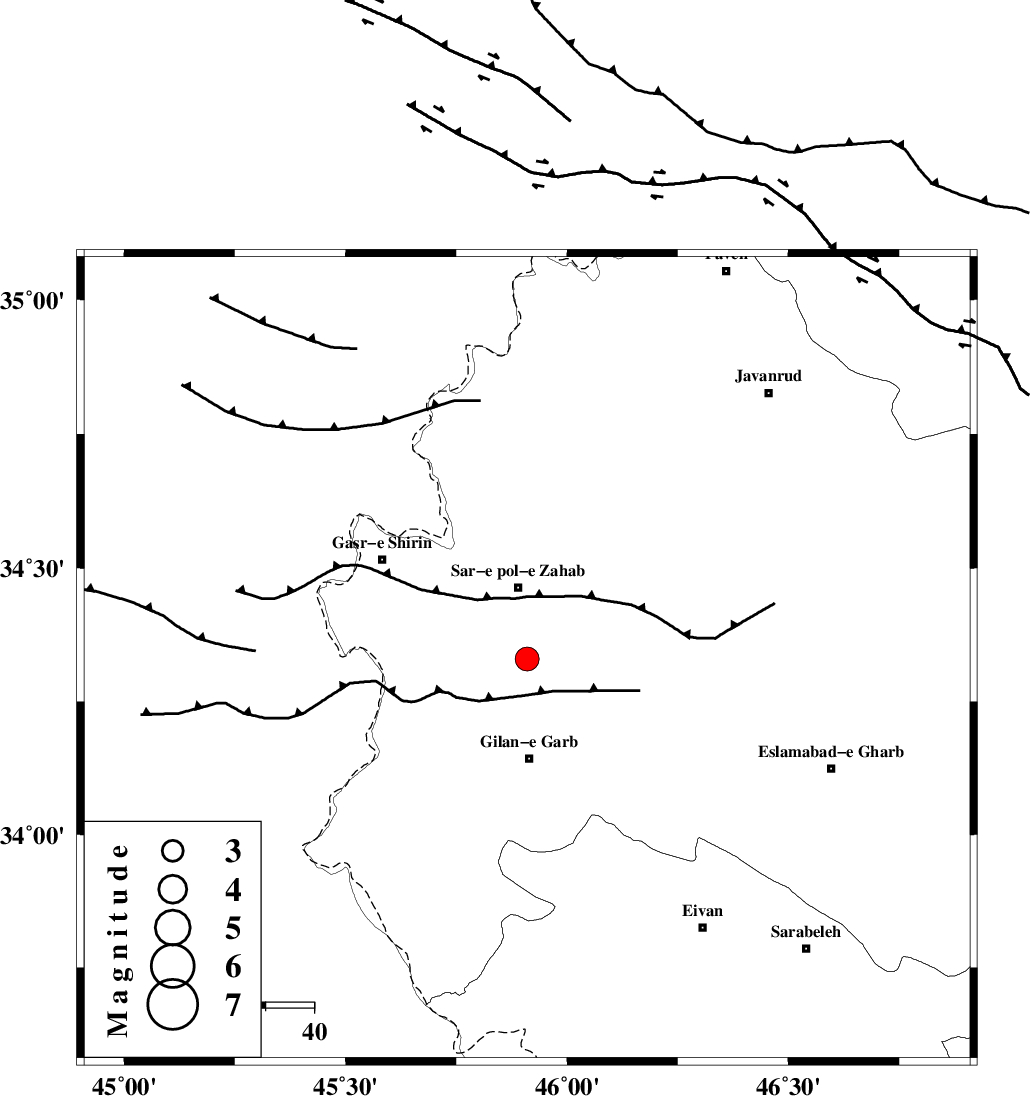

| Location | Lat:34.33 Lon: 45.91 |
| Region | Kermanshah Province, 15 km South of Sar-e pol-e zahab |
Nearest Cities |
|
| 5 km North of Chub baghan, Kermanshah Province | |
| 8 km of Tarkveys, Kermanshah Province | |
| 15 km South of Sar-e pol-e zahab, Kermanshah Province | |
| 18 km South West of Rijab, Kermanshah Province | |
| 21 km North of Gilan-E-Gharb, Kermanshah Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| MFF8 (Length: 48 km) , Distance to epicenter: 13 km | |
| MFF7 (Length: 99 km) , Distance to epicenter: 51 km | |
| HZF4 (Length: 492 km) , Distance to epicenter: 54 km | |
| Number of Phases | 11 |
| RMS | 0.5 |
| Number of Stations | 11 |
| Error in Latitude | >3 km |
| Error in Longitude | 0 km |
| Error in Depth | 11 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 153800 | IIEES SC | ILBA | Z | 340 | 1 | 2020-05-11 23:48:00 | 2020-05-12 09:55:00 | n |
| 153801 | IIEES SC | SNGE | Z | 460 | 1 | 2020-05-11 23:48:20 | 2020-05-12 09:55:00 | n |
| 153802 | IIEES SC | SRSL | Z | 1300 | 1 | 2020-05-11 23:48:30 | 2020-05-12 09:55:00 | n |
| 153803 | IIEES SC | MAHB | Z | 520 | 1 | 2020-05-11 23:48:49 | 2020-05-12 09:55:00 | n |
| 153804 | IIEES SC | GTMR | Z | 60 | 1 | 2020-05-11 23:49:27 | 2020-05-12 09:55:00 | n |
| 153805 | IIEES SC | ZNJK | Z | 18 | 1 | 2020-05-11 23:49:16 | 2020-05-12 09:55:00 | n |
| 153806 | IIEES SC | QABG | Z | 12 | 1 | 2020-05-11 23:49:25 | 2020-05-12 09:55:00 | n |
| 153807 | IIEES SC | AZR | Z | 710 | 1 | 2020-05-11 23:49:23 | 2020-05-12 09:55:00 | n |
| 153808 | IIEES SC | ASAO | Z | 50 | 1 | 2020-05-11 23:49:26 | 2020-05-12 09:55:00 | n |
| 153809 | IIEES SC | KHMZ | Z | 35 | 1 | 2020-05-11 23:49:26 | 2020-05-12 09:55:00 | n |
| 153810 | IIEES SC | AMIS | Z | 49 | 1 | 2020-05-11 23:49:39 | 2020-05-12 09:55:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | ILBA | Z | IP | I | 2020-05-11 23:47:42 | 0.2 | y | 77 | 161 | |||
| IIEES SC | SNGE | Z | IP | I | 2020-05-11 23:47:53 | -0.4 | y | 155 | 57 | |||
| IIEES SC | SRSL | Z | IP | I | 2020-05-11 23:48:01 | -0.8 | y | 211 | 348 | |||
| IIEES SC | MAHB | Z | IP | I | 2020-05-11 23:48:10 | 0.6 | y | 266 | 356 | |||
| IIEES SC | GTMR | Z | IP | I | 2020-05-11 23:48:19 | -0.8 | y | 366 | 125 | |||
| IIEES SC | ZNJK | Z | IP | I | 2020-05-11 23:48:20 | -0.5 | y | 366 | 44 | |||
| IIEES SC | QABG | Z | IP | I | 2020-05-11 23:48:22 | 0.6 | y | 366 | 65 | |||
| IIEES SC | AZR | Z | IP | I | 2020-05-11 23:48:22 | 0.4 | y | 366 | 1 | |||
| IIEES SC | ASAO | Z | IP | I | 2020-05-11 23:48:23 | 0.6 | y | 378 | 86 | |||
| IIEES SC | KHMZ | Z | IP | I | 2020-05-11 23:48:23 | 0.4 | y | 378 | 100 | |||
| IIEES SC | AMIS | Z | IP | I | 2020-05-11 23:48:29 | -0.4 | y | 433 | 133 | |||
