Magnitude |
:3.1 |
| Date & Time (UTC) | 2020-05-16 00:43:06.1 |
| Date & Time (Local) | 1399/2/27 05:13:06.1 |

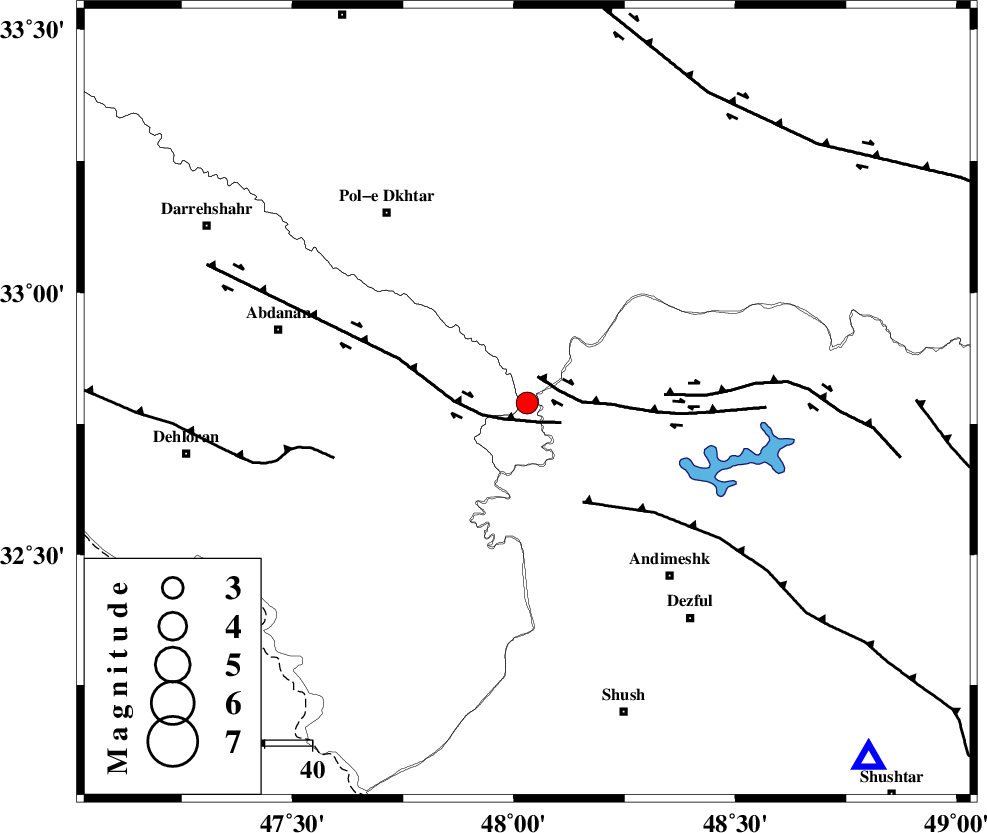

| Location | Lat:32.79 Lon: 48.03 |
| Region | Lorestan Province, 47 km North-West of Andimeshk |
Nearest Cities |
|
| 20 km North West of Bidruyeh, Khoozestan Province | |
| 24 km North West of Hoseinieh, Khoozestan Province | |
| 28 km North West of Sorkhakan, Khoozestan Province | |
| 45 km South East of Sarabbagh, Ilam Province | |
| 47 km South East of Sarab hammam, Lorestan Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 5 km | |
| BALARUD_F_Z3 (Length: 53 km) , Distance to epicenter: 6 km | |
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 24 km | |
| Number of Phases | 11 |
| RMS | 0.5 |
| Number of Stations | 11 |
| Error in Latitude | >3 km |
| Error in Longitude | 0 km |
| Error in Depth | 15 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 153829 | IIEES SC | GTMR | Z | 420 | 1 | 2020-05-16 00:43:44 | 2020-05-18 11:22:00 | n |
| 153830 | IIEES SC | AMIS | Z | 310 | 1 | 2020-05-16 00:44:01 | 2020-05-18 11:22:00 | n |
| 153831 | IIEES SC | ILBA | Z | 120 | 1 | 2020-05-16 00:44:06 | 2020-05-18 11:22:00 | n |
| 153832 | IIEES SC | KHMZ | Z | 75 | 1 | 2020-05-16 00:44:12 | 2020-05-18 11:22:00 | n |
| 153833 | IIEES SC | SNGE | Z | 40 | 1 | 2020-05-16 00:44:29 | 2020-05-18 11:22:00 | n |
| 153834 | IIEES SC | ASAO | Z | 82 | 1 | 2020-05-16 00:44:27 | 2020-05-18 11:22:00 | n |
| 153835 | IIEES SC | GHVR | Z | 730 | 1 | 2020-05-16 00:45:19 | 2020-05-18 11:22:00 | n |
| 153836 | IIEES SC | QABG | Z | 3.1 | 1 | 2020-05-16 00:45:00 | 2020-05-18 11:22:00 | n |
| 153837 | IIEES SC | KLNJ | Z | 37 | 1 | 2020-05-16 00:44:59 | 2020-05-18 11:22:00 | n |
| 153838 | IIEES SC | ZNJK | Z | 5.5 | 1 | 2020-05-16 00:45:18 | 2020-05-18 11:22:00 | n |
| 153839 | IIEES SC | DAMV | Z | 23 | 1 | 2020-05-16 00:44:21 | 2020-05-18 11:22:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GTMR | Z | IP | I | 2020-05-16 00:43:23 | -1.5 | y | 111 | 109 | |||
| IIEES SC | AMIS | Z | IP | I | 2020-05-16 00:43:34 | 0.2 | y | 166 | 136 | |||
| IIEES SC | ILBA | Z | IP | I | 2020-05-16 00:43:37 | 0 | y | 189 | 299 | |||
| IIEES SC | KHMZ | Z | IP | I | 2020-05-16 00:43:40 | -0.3 | y | 211 | 60 | |||
| IIEES SC | SNGE | Z | IP | I | 2020-05-16 00:43:46 | -0.3 | y | 266 | 346 | |||
| IIEES SC | ASAO | Z | IP | I | 2020-05-16 00:43:48 | 0.4 | y | 266 | 44 | |||
| IIEES SC | GHVR | Z | IP | I | 2020-05-16 00:43:59 | 0.9 | y | 355 | 58 | |||
| IIEES SC | QABG | Z | IP | I | 2020-05-16 00:43:58 | 0.3 | y | 355 | 24 | |||
| IIEES SC | KLNJ | Z | IP | I | 2020-05-16 00:44:00 | -2.2 | y | 389 | 120 | |||
| IIEES SC | ZNJK | Z | IP | I | 2020-05-16 00:44:08 | 0.1 | y | 433 | 8 | |||
| IIEES SC | DAMV | Z | IP | I | 2020-05-16 00:44:12 | -2.1 | y | 478 | 49 | |||
