Magnitude |
:5.7 |
| Date & Time (UTC) | 2020-06-09 17:18:11.8 |
| Date & Time (Local) | 1399/3/20 21:48:11.8 |

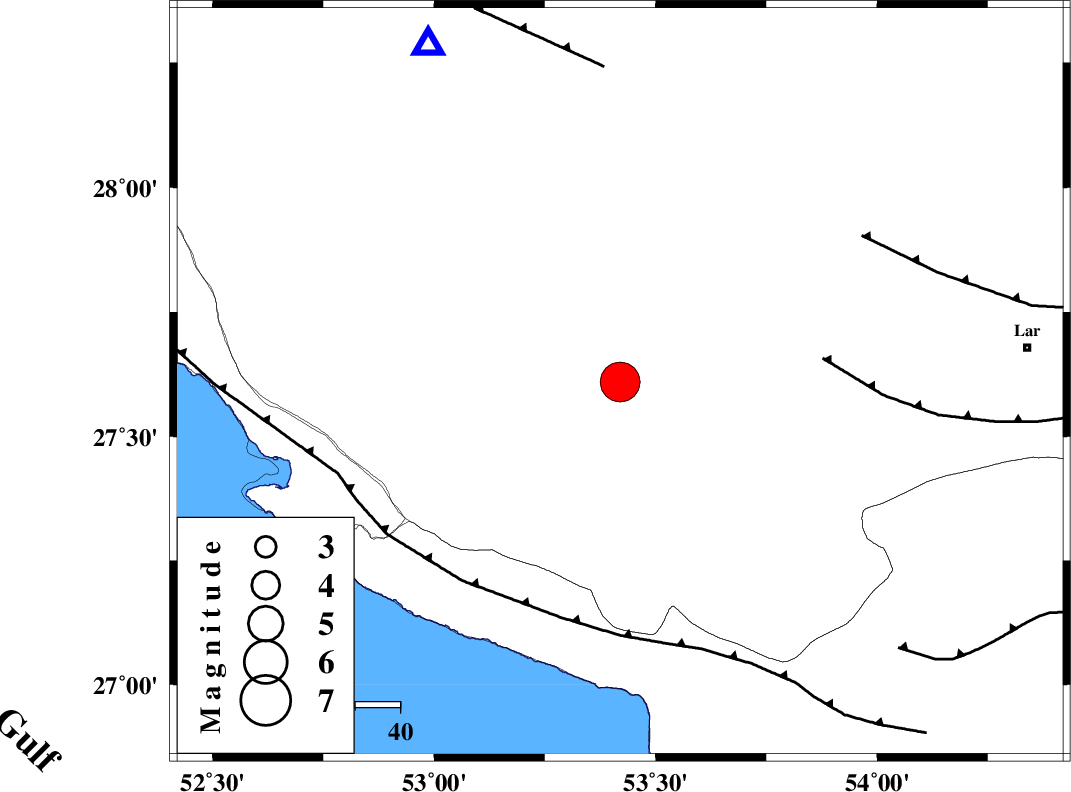

| Location | Lat:27.61 Lon: 53.42 |
| Region | Fars Province, 40 km North-East of Lamerd |
Nearest Cities |
|
| 10 km North West of Fedagh, Fars Province | |
| 23 km North of Beyram, Fars Province | |
| 24 km South West of Ard, Fars Province | |
| 29 km South of Khonj, Fars Province | |
| 34 km South West of Fishur, Fars Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| LAR_F (Length: 99 km) , Distance to epicenter: 45 km | |
| MFF3 (Length: 292 km) , Distance to epicenter: 54 km | |
| BERIZ_F (Length: 49 km) , Distance to epicenter: 63 km | |
| Number of Phases | 28 |
| RMS | 0.5 |
| Number of Stations | 28 |
| Error in Latitude | >2 km |
| Error in Longitude | 0 km |
| Error in Depth | 553 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 154207 | IIEES SC | AHRM | Z | 14000 | 1 | 2020-06-09 17:19:57 | 2020-06-09 10:04:00 | n |
| 154208 | IIEES SC | BNDS | Z | 16000 | 1 | 2020-06-09 17:20:21 | 2020-06-09 10:04:00 | n |
| 154209 | IIEES SC | KLNJ | Z | 16000 | 1 | 2020-06-09 17:21:01 | 2020-06-09 10:04:00 | n |
| 154210 | IIEES SC | NASN | Z | 2600 | 1 | 2020-06-09 17:21:34 | 2020-06-09 10:04:00 | n |
| 154211 | IIEES SC | AMIS | Z | 11000 | 1 | 2020-06-09 17:21:49 | 2020-06-09 10:04:00 | n |
| 154212 | IIEES SC | GTMR | Z | 8200 | 1 | 2020-06-09 17:22:10 | 2020-06-09 10:04:00 | n |
| 154213 | IIEES SC | BSRN | Z | 890 | 1 | 2020-06-09 17:22:14 | 2020-06-09 10:04:00 | n |
| 154214 | IIEES SC | CHBR | Z | 600 | 1 | 2020-06-09 17:21:50 | 2020-06-09 10:04:00 | n |
| 154215 | IIEES SC | KHMZ | Z | 2400 | 1 | 2020-06-09 17:22:20 | 2020-06-09 10:04:00 | n |
| 154216 | IIEES SC | TABS | Z | 1300 | 1 | 2020-06-09 17:22:21 | 2020-06-09 10:04:00 | n |
| 154217 | IIEES SC | AMR2 | Z | 4700 | 1 | 2020-06-09 17:21:56 | 2020-06-09 10:04:00 | n |
| 154218 | IIEES SC | NSR4 | Z | 18000 | 1 | 2020-06-09 17:21:48 | 2020-06-09 10:04:00 | n |
| 154219 | IIEES SC | ANJ | Z | 260 | 1 | 2020-06-09 17:20:46 | 2020-06-09 10:04:00 | n |
| 154220 | IIEES SC | SRVN | Z | 260 | 1 | 2020-06-09 17:22:00 | 2020-06-09 10:04:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | AHRM | Z | IP | I | 2020-06-09 17:18:52 | 0.9 | y | 255 | 304 | |||
| IIEES SC | BNDS | Z | IP | I | 2020-06-09 17:18:53 | -0.2 | y | 278 | 95 | |||
| IIEES SC | KLNJ | Z | IP | I | 2020-06-09 17:19:11 | -0.2 | y | 422 | 335 | |||
| IIEES SC | NASN | Z | IP | I | 2020-06-09 17:19:32 | 0.6 | y | 578 | 354 | |||
| IIEES SC | AMIS | Z | IP | I | 2020-06-09 17:19:33 | -0.9 | y | 600 | 318 | |||
| IIEES SC | GTMR | Z | IP | I | 2020-06-09 17:19:43 | -1.4 | y | 678 | 322 | |||
| IIEES SC | BSRN | Z | IP | I | 2020-06-09 17:19:50 | -0.6 | y | 733 | 49 | |||
| IIEES SC | CHBR | Z | IP | I | 2020-06-09 17:19:51 | 0.1 | y | 733 | 108 | |||
| IIEES SC | KHMZ | Z | IP | I | 2020-06-09 17:19:53 | -0.6 | y | 756 | 334 | |||
| IIEES SC | TABS | Z | IP | I | 2020-06-09 17:19:54 | 0.1 | y | 756 | 28 | |||
| IIEES SC | AMR2 | Z | IP | I | 2020-06-09 17:19:55 | -0.2 | y | 778 | 309 | |||
| IIEES SC | NSR4 | N | IP | I | 2020-06-09 17:20:01 | -0.8 | y | 822 | 302 | |||
| IIEES SC | ANJ | Z | IP | I | 2020-06-09 17:20:09 | 0.7 | y | 878 | 3 | |||
| IIEES SC | SRVN | Z | IP | I | 2020-06-09 17:20:11 | 0.8 | y | 889 | 91 | |||
| IIEES SC | DAMV | Z | IP | I | 2020-06-09 17:20:11 | -0.2 | y | 900 | 351 | |||
| IIEES SC | RAYN | Z | IP | I | 2020-06-09 17:20:13 | 0 | y | 911 | 240 | |||
| IIEES SC | SHRT | Z | IP | I | 2020-06-09 17:20:17 | 1 | y | 945 | 45 | |||
| IIEES SC | CHTH | Z | IP | I | 2020-06-09 17:20:16 | -0.8 | y | 945 | 347 | |||
| IIEES SC | THKV | Z | IP | I | 2020-06-09 17:20:18 | -0.1 | y | 956 | 345 | |||
| IIEES SC | ILBA | Z | IP | I | 2020-06-09 17:20:17 | -1.7 | y | 956 | 314 | |||
| IIEES SC | QABG | Z | IP | I | 2020-06-09 17:20:19 | -1 | y | 967 | 338 | |||
| IIEES SC | GLO | Z | IP | I | 2020-06-09 17:20:24 | 1.7 | y | 989 | 2 | |||
| IIEES SC | SBZV | Z | IP | I | 2020-06-09 17:20:30 | -0.6 | y | 1056 | 22 | |||
| IIEES SC | GIDE | Z | IP | I | 2020-06-09 17:20:34 | -0.4 | y | 1089 | 342 | |||
| IIEES SC | ZNJK | Z | IP | I | 2020-06-09 17:20:35 | -1.4 | y | 1100 | 336 | |||
| IIEES SC | AKL | Z | IP | I | 2020-06-09 17:20:39 | 0.6 | y | 1112 | 27 | |||
| IIEES SC | MRVT | Z | IP | I | 2020-06-09 17:20:43 | 1.1 | y | 1145 | 13 | |||
| IIEES SC | BJRD | Z | IP | I | 2020-06-09 17:20:47 | 0.6 | y | 1178 | 18 | |||
