Magnitude |
:3.6 |
| Date & Time (UTC) | 2020-06-11 08:04:06.3 |
| Date & Time (Local) | 1399/3/22 12:34:06.3 |

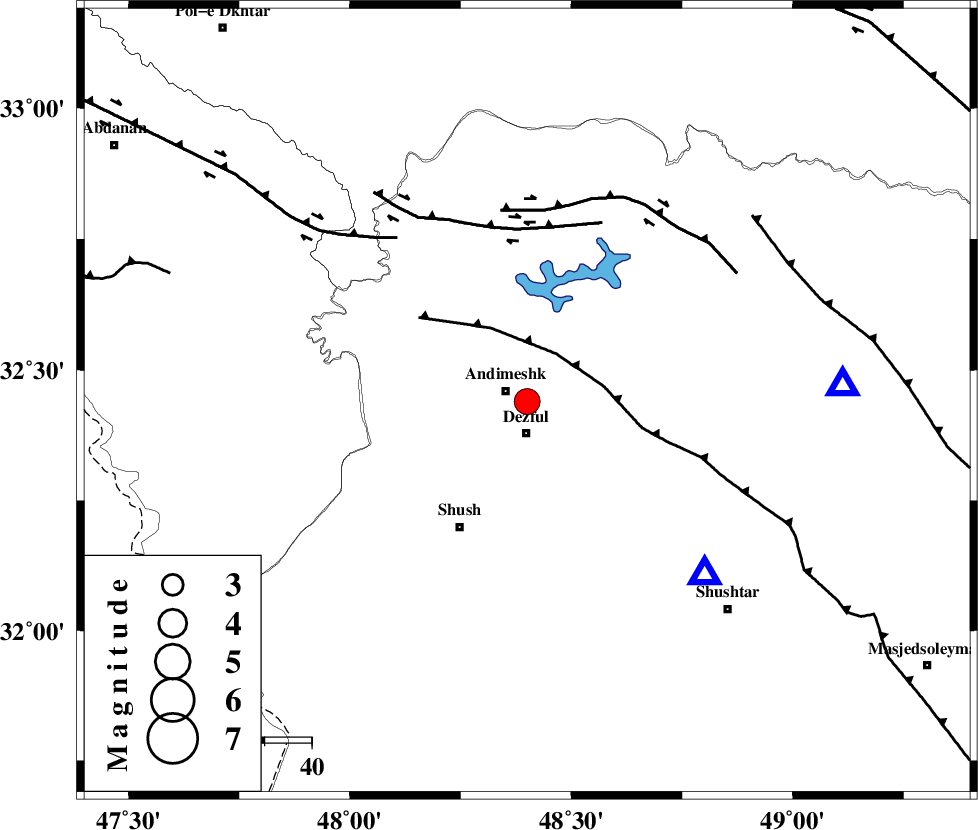

| Location | Lat:32.44 Lon: 48.4 |
| Region | Khoozestan Province, 7 km of Dezful |
Nearest Cities |
|
| 5 km of Andimeshk, Khoozestan Province | |
| 7 km North of Dezful, Khoozestan Province | |
| 16 km North of Shamsabad, Khoozestan Province | |
| 25 km North West of Mahur berenji, Khoozestan Province | |
| 30 km South East of Hoseinieh, Khoozestan Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 12 km | |
| BALARUD_F_Z3 (Length: 53 km) , Distance to epicenter: 37 km | |
| BALARUD_F_Z2 (Length: 58 km) , Distance to epicenter: 41 km | |
| Number of Phases | 19 |
| RMS | 0.4 |
| Number of Stations | 18 |
| Error in Latitude | >3 km |
| Error in Longitude | 0 km |
| Error in Depth | 4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 154419 | IIEES SC | GTMR | Z | 1300 | 1 | 2020-06-11 08:04:35 | 2020-06-13 10:36:00 | n |
| 154420 | IIEES SC | KHMZ | Z | 270 | 1 | 2020-06-11 08:05:12 | 2020-06-13 10:36:00 | n |
| 154421 | IIEES SC | ILBA | Z | 230 | 1 | 2020-06-11 08:05:24 | 2020-06-13 10:36:00 | n |
| 154422 | IIEES SC | ASAO | Z | 260 | 1 | 2020-06-11 08:05:31 | 2020-06-13 10:36:00 | n |
| 154423 | IIEES SC | SNGE | Z | 230 | 1 | 2020-06-11 08:05:45 | 2020-06-13 10:36:00 | n |
| 154424 | IIEES SC | GHVR | Z | 770 | 1 | 2020-06-11 08:07:14 | 2020-06-13 10:36:00 | n |
| 154425 | IIEES SC | NASN | Z | 41 | 1 | 2020-06-11 08:06:16 | 2020-06-13 10:36:00 | n |
| 154426 | IIEES SC | THKV | Z | 93 | 1 | 2020-06-11 08:06:27 | 2020-06-13 10:36:00 | n |
| 154427 | IIEES SC | CHTH | Z | 33 | 1 | 2020-06-11 08:06:24 | 2020-06-13 10:36:00 | n |
| 154428 | IIEES SC | ZNJK | Z | 17 | 1 | 2020-06-11 08:05:56 | 2020-06-13 10:36:00 | n |
| 154429 | IIEES SC | DAMV | Z | 4.2 | 1 | 2020-06-11 08:07:06 | 2020-06-13 10:36:00 | n |
| 154430 | IIEES SC | SRSL | Z | 62 | 1 | 2020-06-11 08:06:30 | 2020-06-13 10:36:00 | n |
| 154431 | IIEES SC | GIDE | Z | 110 | 1 | 2020-06-11 08:06:56 | 2020-06-13 10:36:00 | n |
| 154432 | IIEES SC | GLO | Z | 69 | 1 | 2020-06-11 08:07:38 | 2020-06-13 10:36:00 | n |
| 154433 | IIEES SC | GRMI | Z | 8.4 | 1 | 2020-06-11 08:07:39 | 2020-06-13 10:36:00 | n |
| 154434 | IIEES SC | SHRO | Z | 2.6 | 1 | 2020-06-11 08:07:12 | 2020-06-13 10:36:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GTMR | Z | IP | I | 2020-06-11 08:04:18 | -0.1 | y | 66 | 87 | |||
| IIEES SC | KHMZ | N | IS | I | 2020-06-11 08:05:04 | -0.4 | n | 4 | 200 | 45 | ||
| IIEES SC | KHMZ | Z | IP | I | 2020-06-11 08:04:39 | -0.4 | y | 200 | 45 | |||
| IIEES SC | ILBA | Z | IP | I | 2020-06-11 08:04:44 | -0.2 | y | 244 | 303 | |||
| IIEES SC | ASAO | Z | IP | I | 2020-06-11 08:04:49 | 0.4 | y | 278 | 33 | |||
| IIEES SC | SNGE | Z | IP | I | 2020-06-11 08:04:53 | 0.3 | y | 311 | 342 | |||
| IIEES SC | GHVR | Z | IP | I | 2020-06-11 08:04:57 | 0.1 | y | 344 | 49 | |||
| IIEES SC | QABG | Z | IP | I | 2020-06-11 08:05:02 | 0.4 | y | 378 | 17 | |||
| IIEES SC | NASN | Z | IP | I | 2020-06-11 08:05:07 | 0.6 | y | 411 | 84 | |||
| IIEES SC | THKV | Z | IP | I | 2020-06-11 08:05:11 | 0.7 | y | 444 | 31 | |||
| IIEES SC | CHTH | Z | IP | I | 2020-06-11 08:05:11 | -0.6 | y | 455 | 33 | |||
| IIEES SC | ZNJK | Z | IP | I | 2020-06-11 08:05:13 | 0 | y | 467 | 3 | |||
| IIEES SC | DAMV | Z | IP | I | 2020-06-11 08:05:13 | -0.9 | y | 489 | 43 | |||
| IIEES SC | SRSL | Z | IP | I | 2020-06-11 08:05:16 | 0 | y | 500 | 327 | |||
| IIEES SC | GIDE | Z | IP | I | 2020-06-11 08:05:18 | -0.2 | y | 511 | 16 | |||
| IIEES SC | GLO | Z | IP | I | 2020-06-11 08:05:39 | 1.3 | y | 678 | 48 | |||
| IIEES SC | GRMI | Z | IP | I | 2020-06-11 08:05:42 | -0.3 | y | 711 | 356 | |||
| IIEES SC | SHRO | Z | IP | I | 2020-06-11 08:05:53 | -0.7 | y | 800 | 61 | |||
| IIEES SC | RAYN | Z | IP | I | 2020-06-11 08:06:21 | -0.8 | y | 1034 | 196 | |||
