Magnitude |
:4.3 |
| Date & Time (UTC) | 2020-06-16 00:04:14.5 |
| Date & Time (Local) | 1399/3/27 04:34:14.5 |

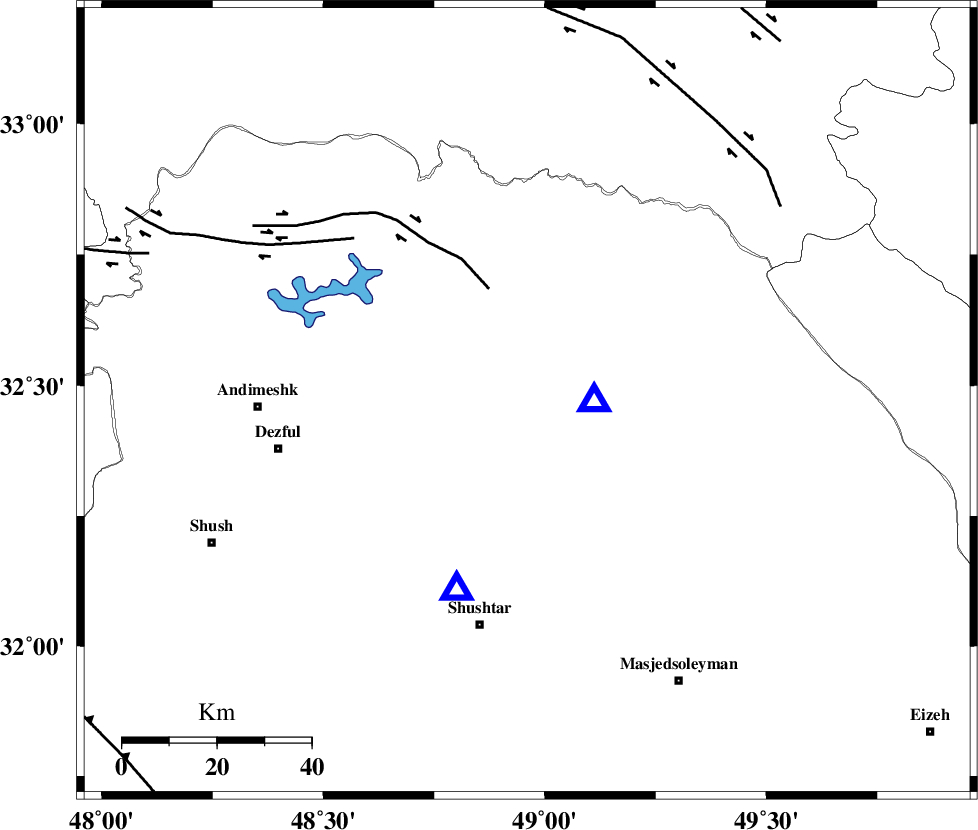

| Location | Lat:32.47 Lon: 48.96 |
| Region | Khoozestan Province, 17 km -West of Lali |
Nearest Cities |
|
| 12 km East of Sardasht, Khoozestan Province | |
| 17 km North West of Lali, Khoozestan Province | |
| 27 km North West of Jaefarabad, Khoozestan Province | |
| 29 km North East of Gatvand, Khoozestan Province | |
| 29 km North East of Mahur berenji, Khoozestan Province | |
| Depth | 16 km |
| Agency | |
Faults within 150 km: |
|
| MFF2 (Length: 205 km) , Distance to epicenter: 21 km | |
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 22 km | |
| BALARUD_F_Z2 (Length: 58 km) , Distance to epicenter: 25 km | |
| Number of Phases | 33 |
| RMS | 0.5 |
| Number of Stations | 27 |
| Error in Latitude | >1 km |
| Error in Longitude | 0 km |
| Error in Depth | 3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 154638 | IIEES SC | AMIS | Z | 8700 | 1 | 2020-06-16 00:04:50 | 2020-06-16 07:43:00 | n |
| 154639 | IIEES SC | KHMZ | Z | 2800 | 1 | 2020-06-16 00:05:07 | 2020-06-16 07:43:00 | n |
| 154640 | IIEES SC | ASAO | Z | 2300 | 1 | 2020-06-16 00:05:33 | 2020-06-16 07:43:00 | n |
| 154641 | IIEES SC | ILBA | Z | 550 | 1 | 2020-06-16 00:05:51 | 2020-06-16 07:43:00 | n |
| 154642 | IIEES SC | KLNJ | Z | 1300 | 1 | 2020-06-16 00:05:52 | 2020-06-16 07:43:00 | n |
| 154643 | IIEES SC | GHVR | Z | 1700 | 1 | 2020-06-16 00:05:53 | 2020-06-16 07:43:00 | n |
| 154644 | IIEES SC | SNGE | Z | 650 | 1 | 2020-06-16 00:05:54 | 2020-06-16 07:43:00 | n |
| 154645 | IIEES SC | NASN | Z | 310 | 1 | 2020-06-16 00:06:08 | 2020-06-16 07:43:00 | n |
| 154646 | IIEES SC | THKV | Z | 480 | 1 | 2020-06-16 00:06:26 | 2020-06-16 07:43:00 | n |
| 154647 | IIEES SC | CHTH | Z | 260 | 1 | 2020-06-16 00:06:22 | 2020-06-16 07:43:00 | n |
| 154648 | IIEES SC | DAMV | Z | 3.8 | 1 | 2020-06-16 00:06:39 | 2020-06-16 07:43:00 | n |
| 154649 | IIEES SC | AHRM | Z | 120 | 1 | 2020-06-16 00:06:10 | 2020-06-16 07:43:00 | n |
| 154650 | IIEES SC | ZNJK | Z | 61 | 1 | 2020-06-16 00:06:13 | 2020-06-16 07:43:00 | n |
| 154651 | IIEES SC | SRSL | Z | 210 | 1 | 2020-06-16 00:06:24 | 2020-06-16 07:43:00 | n |
| 154652 | IIEES SC | YZKH | Z | 120 | 1 | 2020-06-16 00:07:18 | 2020-06-16 07:43:00 | n |
| 154653 | IIEES SC | MAHB | Z | 180 | 1 | 2020-06-16 00:06:42 | 2020-06-16 07:43:00 | n |
| 154654 | IIEES SC | MAHB | Z | 200 | 0.67 | 2020-06-16 00:05:34 | 2020-06-16 07:43:00 | n |
| 154655 | IIEES SC | ANJ | Z | 24 | 1 | 2020-06-16 00:07:19 | 2020-06-16 07:43:00 | n |
| 154656 | IIEES SC | ANJ | Z | 39 | 0.67 | 2020-06-16 00:05:33 | 2020-06-16 07:43:00 | n |
| 154657 | IIEES SC | GLO | Z | 330 | 1 | 2020-06-16 00:07:41 | 2020-06-16 07:43:00 | n |
| 154658 | IIEES SC | GLO | Z | 170 | 0.8 | 2020-06-16 00:05:44 | 2020-06-16 07:43:00 | n |
| 154659 | IIEES SC | SHRO | Z | 2.5 | 1 | 2020-06-16 00:06:28 | 2020-06-16 07:43:00 | n |
| 154660 | IIEES SC | SHRO | Z | 27 | 0.79 | 2020-06-16 00:06:06 | 2020-06-16 07:43:00 | n |
| 154661 | IIEES SC | TABS | Z | 39 | 1 | 2020-06-16 00:08:08 | 2020-06-16 07:43:00 | n |
| 154662 | IIEES SC | TABS | Z | 41 | 0.64 | 2020-06-16 00:06:08 | 2020-06-16 07:43:00 | n |
| 154663 | IIEES SC | MRVT | Z | 11 | 1 | 2020-06-16 00:08:36 | 2020-06-16 07:43:00 | n |
| 154664 | IIEES SC | MRVT | Z | 7.1 | 0.94 | 2020-06-16 00:06:34 | 2020-06-16 07:43:00 | n |
| 154665 | IIEES SC | SBZV | Z | 21 | 0.73 | 2020-06-16 00:06:39 | 2020-06-16 07:43:00 | n |
| 154666 | IIEES SC | BSRN | Z | 8.2 | 0.61 | 2020-06-16 00:06:28 | 2020-06-16 07:43:00 | n |
| 154667 | IIEES SC | TBJM | Z | 6.4 | 1.1 | 2020-06-16 00:06:53 | 2020-06-16 07:43:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GTMR | Z | IP | I | 2020-06-16 00:04:17 | -0.6 | y | 11 | 90 | |||
| IIEES SC | AMIS | Z | IP | I | 2020-06-16 00:04:31 | 0.5 | y | 88 | 161 | |||
| IIEES SC | KHMZ | Z | IP | I | 2020-06-16 00:04:41 | -0.4 | y | 166 | 34 | |||
| IIEES SC | ASAO | Z | IP | I | 2020-06-16 00:04:54 | 1.1 | y | 255 | 23 | |||
| IIEES SC | ILBA | Z | IP | I | 2020-06-16 00:04:57 | -0.1 | y | 289 | 296 | |||
| IIEES SC | KLNJ | Z | IP | I | 2020-06-16 00:04:59 | -0.3 | y | 300 | 123 | |||
| IIEES SC | GHVR | Z | IP | I | 2020-06-16 00:05:01 | 1.4 | y | 311 | 44 | |||
| IIEES SC | SNGE | Z | IP | I | 2020-06-16 00:05:03 | 0.6 | y | 322 | 333 | |||
| IIEES SC | NASN | Z | IP | I | 2020-06-16 00:05:07 | 0.2 | y | 366 | 84 | |||
| IIEES SC | QABG | Z | IP | I | 2020-06-16 00:05:08 | 0.8 | y | 366 | 9 | |||
| IIEES SC | THKV | Z | IP | I | 2020-06-16 00:05:14 | 0.4 | y | 422 | 25 | |||
| IIEES SC | CHTH | Z | IP | I | 2020-06-16 00:05:15 | 0.1 | y | 433 | 28 | |||
| IIEES SC | DAMV | Z | IP | I | 2020-06-16 00:05:17 | 0.1 | y | 444 | 38 | |||
| IIEES SC | AHRM | Z | IP | I | 2020-06-16 00:05:18 | -0.7 | y | 455 | 151 | |||
| IIEES SC | ZNJK | Z | IP | I | 2020-06-16 00:05:20 | 0.4 | y | 467 | 357 | |||
| IIEES SC | SRSL | Z | IP | I | 2020-06-16 00:05:27 | 0.1 | y | 522 | 322 | |||
| IIEES SC | YZKH | Z | IP | I | 2020-06-16 00:05:27 | -0.5 | y | 533 | 91 | |||
| IIEES SC | MAHB | Z | IP | I | 2020-06-16 00:05:32 | 0.2 | y | 567 | 328 | |||
| IIEES SC | ANJ | Z | IP | I | 2020-06-16 00:05:32 | 0.1 | y | 567 | 54 | |||
| IIEES SC | GLO | Z | IP | I | 2020-06-16 00:05:41 | 1 | y | 633 | 45 | |||
| IIEES SC | SHRO | Z | IP | I | 2020-06-16 00:05:55 | -0.5 | y | 756 | 59 | |||
| IIEES SC | TABS | Z | IP | I | 2020-06-16 00:05:57 | -0.5 | y | 778 | 80 | |||
| IIEES SC | MRVT | Z | IP | I | 2020-06-16 00:06:09 | -0.5 | y | 867 | 48 | |||
| IIEES SC | SBZV | Z | IP | I | 2020-06-16 00:06:13 | -0.9 | y | 911 | 61 | |||
| IIEES SC | BSRN | Z | IP | I | 2020-06-16 00:06:20 | -1 | y | 956 | 93 | |||
| IIEES SC | SHRT | Z | IP | I | 2020-06-16 00:06:34 | 0 | y | 1067 | 83 | |||
| IIEES SC | TBJM | Z | IP | I | 2020-06-16 00:06:37 | -1.1 | y | 1100 | 74 | |||
| IIEES SC | MAHB | Z | IVmB_BB | 2020-06-16 00:05:34 | y | 1 | 567 | 328 | ||||
| IIEES SC | ANJ | Z | IVmB_BB | 2020-06-16 00:05:33 | y | 1 | 567 | 54 | ||||
| IIEES SC | GLO | Z | IVmB_BB | 2020-06-16 00:06:36 | y | 1 | 633 | 45 | ||||
| IIEES SC | SHRO | Z | IVmB_BB | 2020-06-16 00:06:29 | y | 1 | 756 | 59 | ||||
| IIEES SC | TABS | Z | IVmB_BB | 2020-06-16 00:06:45 | y | 1 | 778 | 80 | ||||
| IIEES SC | SBZV | Z | IVmB_BB | 2020-06-16 00:07:10 | y | 1 | 911 | 61 | ||||
