Magnitude |
:3.7 |
| Date & Time (UTC) | 2020-06-18 19:42:40.4 |
| Date & Time (Local) | 1399/3/30 00:12:40.4 |
| Location | Lat:35.28 Lon: 46.58 |
| Region | Kurdistan Province, 32 km North-East of Paveh |
Nearest Cities |
|
| 6 km of Nagol, Kurdistan Province | |
| 6 km North of Bisaran, Kurdistan Province | |
| 7 km North of Avihang, Kurdistan Province | |
| 14 km North of Baygalan, Kurdistan Province | |
| 15 km South of Shoysheh, Kurdistan Province | |
| Depth | 10 km |
| Agency | |

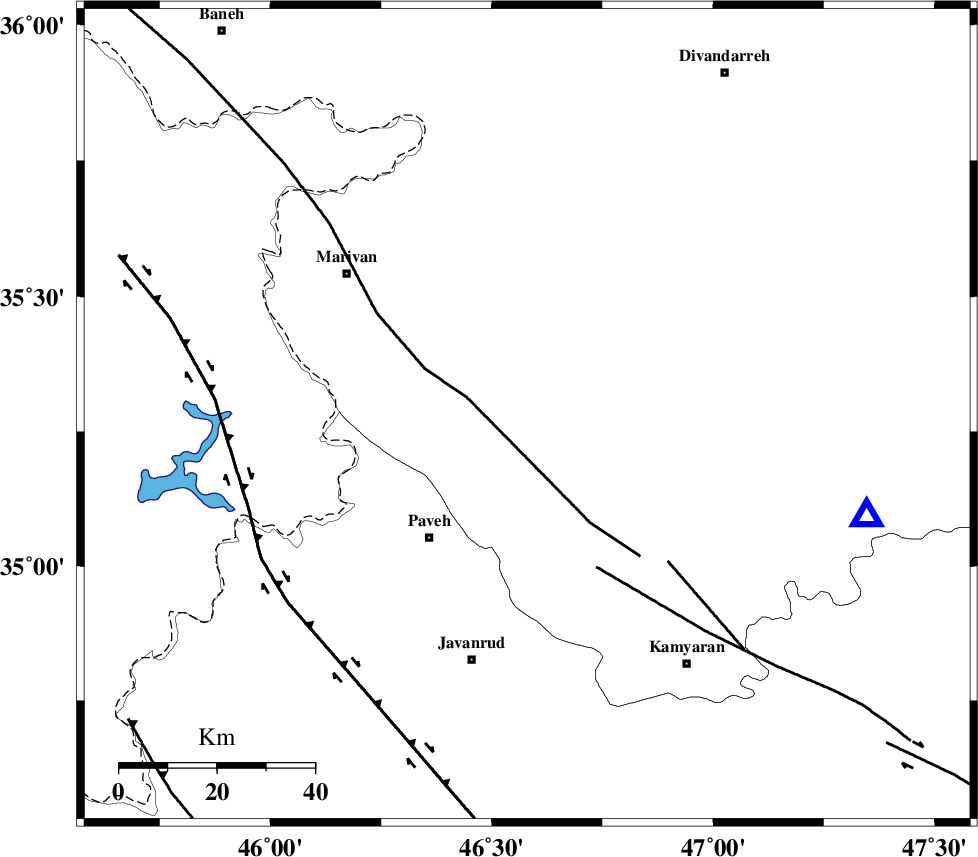

Faults within 150 km: |
|
| PIRANSHAHR_F (Length: 253 km) , Distance to epicenter: 13 km | |
| SARTAKHT_F (Length: 78 km) , Distance to epicenter: 34 km | |
| MORVARID_F (Length: 24 km) , Distance to epicenter: 42 km | |
| Number of Phases | 19 |
| RMS | 0.9 |
| Number of Stations | 17 |
| Error in Latitude | >2 km |
| Error in Longitude | 0 km |
| Error in Depth | 6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 154717 | IIEES SC | SNGE | Z | 2300 | 1 | 2020-06-18 19:43:04 | 2020-06-20 11:00:00 | n |
| 154718 | IIEES SC | SRSL | Z | 1300 | 1 | 2020-06-18 19:43:28 | 2020-06-20 11:00:00 | n |
| 154719 | IIEES SC | MAHB | Z | 610 | 1 | 2020-06-18 19:43:38 | 2020-06-20 11:00:00 | n |
| 154720 | IIEES SC | ILBA | Z | 450 | 1 | 2020-06-18 19:43:37 | 2020-06-20 11:00:00 | n |
| 154721 | IIEES SC | AZR | Z | 1600 | 1 | 2020-06-18 19:44:11 | 2020-06-20 11:00:00 | n |
| 154722 | IIEES SC | ASAO | Z | 110 | 1 | 2020-06-18 19:44:21 | 2020-06-20 11:00:00 | n |
| 154723 | IIEES SC | GIDE | Z | 220 | 1 | 2020-06-18 19:44:36 | 2020-06-20 11:00:00 | n |
| 154724 | IIEES SC | KHMZ | Z | 100 | 1 | 2020-06-18 19:44:32 | 2020-06-20 11:00:00 | n |
| 154725 | IIEES SC | GTMR | Z | 77 | 1 | 2020-06-18 19:44:43 | 2020-06-20 11:00:00 | n |
| 154726 | IIEES SC | GRMI | Z | 22 | 1 | 2020-06-18 19:44:46 | 2020-06-20 11:00:00 | n |
| 154727 | IIEES SC | NSR4 | Z | 940 | 1 | 2020-06-18 19:44:26 | 2020-06-20 11:00:00 | n |
| 154728 | IIEES SC | CHTH | Z | 21 | 1 | 2020-06-18 19:44:57 | 2020-06-20 11:00:00 | n |
| 154729 | IIEES SC | GHVR | Z | 910 | 1 | 2020-06-18 19:43:38 | 2020-06-20 11:00:00 | n |
| 154730 | IIEES SC | AMIS | Z | 63 | 1 | 2020-06-18 19:44:43 | 2020-06-20 11:00:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | SNGE | Z | IP | I | 2020-06-18 19:42:51 | -1.7 | y | 77 | 106 | |||
| IIEES SC | SRSL | N | IS | I | 2020-06-18 19:43:24 | 0.8 | y | 144 | 315 | |||
| IIEES SC | SRSL | Z | IP | I | 2020-06-18 19:43:03 | -1.3 | y | 144 | 315 | |||
| IIEES SC | MAHB | Z | IP | I | 2020-06-18 19:43:10 | -0.6 | y | 177 | 334 | |||
| IIEES SC | ILBA | N | IS | I | 2020-06-18 19:43:34 | 0.3 | y | 189 | 191 | |||
| IIEES SC | ILBA | Z | IP | I | 2020-06-18 19:43:10 | -0.4 | y | 189 | 191 | |||
| IIEES SC | AZR | Z | IP | I | 2020-06-18 19:43:23 | 0.6 | y | 266 | 349 | |||
| IIEES SC | QABG | Z | IP | I | 2020-06-18 19:43:24 | 1.5 | y | 278 | 80 | |||
| IIEES SC | ASAO | Z | IP | I | 2020-06-18 19:43:30 | 1.6 | y | 322 | 104 | |||
| IIEES SC | GIDE | Z | IP | I | 2020-06-18 19:43:31 | -1.1 | y | 355 | 59 | |||
| IIEES SC | KHMZ | Z | IP | I | 2020-06-18 19:43:33 | 1 | y | 355 | 119 | |||
| IIEES SC | GTMR | Z | IP | I | 2020-06-18 19:43:37 | 0.1 | y | 389 | 143 | |||
| IIEES SC | THKV | Z | IP | I | 2020-06-18 19:43:48 | 10.7 | n | 4 | 400 | 80 | ||
| IIEES SC | GRMI | Z | IP | I | 2020-06-18 19:43:40 | 0.9 | y | 411 | 17 | |||
| IIEES SC | NSR4 | Z | IP | I | 2020-06-18 19:43:39 | -0.3 | y | 411 | 185 | |||
| IIEES SC | CHTH | Z | IP | I | 2020-06-18 19:43:40 | 0 | y | 422 | 80 | |||
| IIEES SC | GHVR | Z | IP | I | 2020-06-18 19:43:42 | -0.1 | y | 433 | 102 | |||
| IIEES SC | AMIS | Z | IP | I | 2020-06-18 19:43:48 | 1.2 | y | 478 | 148 | |||
| IIEES SC | DAMV | Z | IP | I | 2020-06-18 19:43:54 | 4.5 | n | 4 | 489 | 85 | ||
