Magnitude |
:3.1 |
| Date & Time (UTC) | 2020-06-21 06:23:10.4 |
| Date & Time (Local) | 1399/4/1 10:53:10.4 |

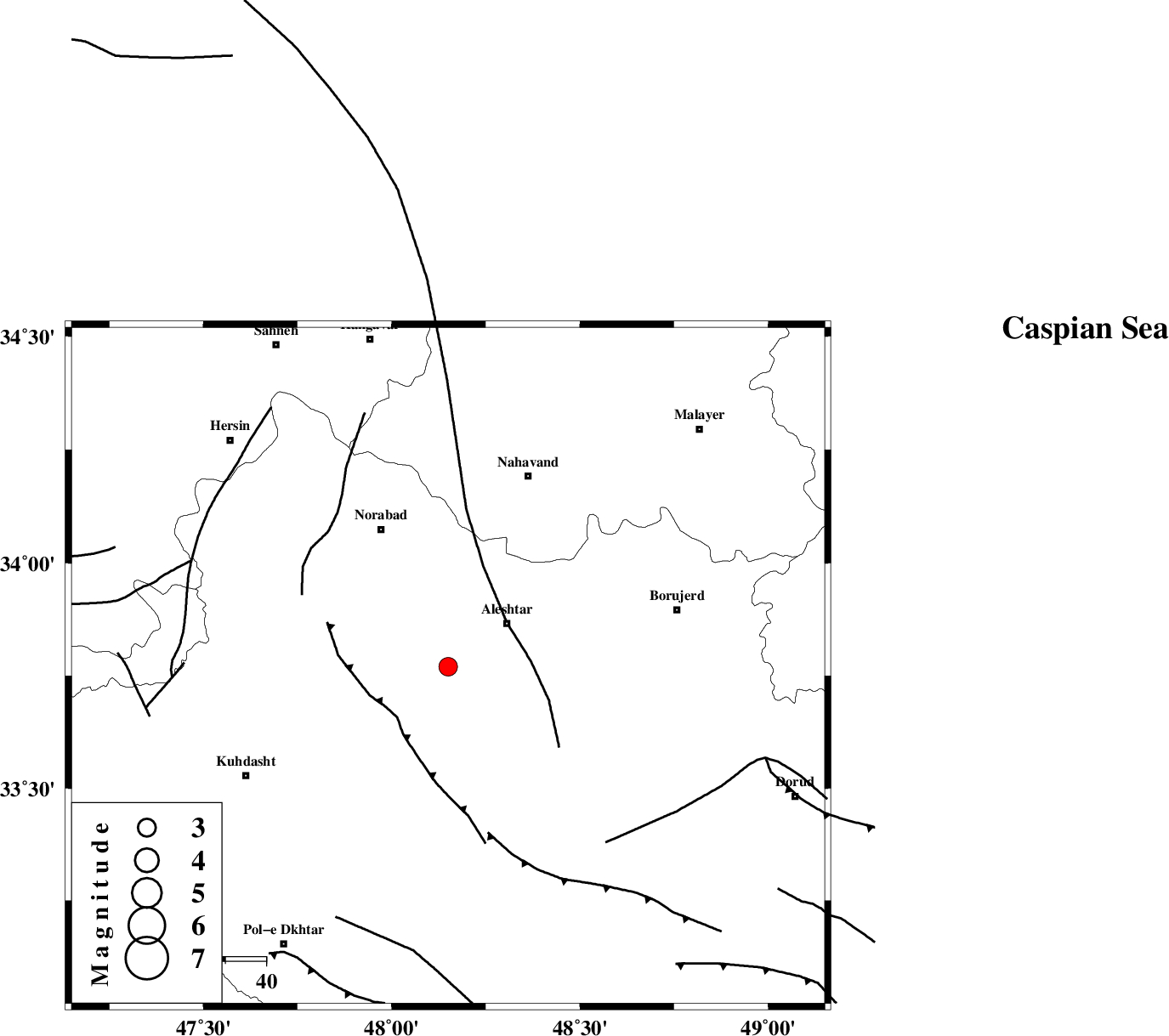

| Location | Lat:33.77 Lon: 48.15 |
| Region | Lorestan Province, 18 km -West of Aleshtar |
Nearest Cities |
|
| 14 km South of Firuz Abad, Lorestan Province | |
| 14 km West of Siyahpush, Lorestan Province | |
| 16 km South West of Dehrahim, Lorestan Province | |
| 18 km West of Aleshtar, Lorestan Province | |
| 25 km North West of Rebat namaki, Lorestan Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| HZF4 (Length: 492 km) , Distance to epicenter: 23 km | |
| NAHAVAND_F (Length: 102 km) , Distance to epicenter: 44 km | |
| SAHANEH_F (Length: 77 km) , Distance to epicenter: 45 km | |
| Number of Phases | 10 |
| RMS | 0.4 |
| Number of Stations | 10 |
| Error in Latitude | >2 km |
| Error in Longitude | 0 km |
| Error in Depth | 4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 154781 | IIEES SC | SNGE | Z | 160 | 1 | 2020-06-21 06:24:03 | 2020-06-21 12:39:00 | n |
| 154782 | IIEES SC | KHMZ | Z | 220 | 1 | 2020-06-21 06:24:04 | 2020-06-21 12:39:00 | n |
| 154783 | IIEES SC | GTMR | Z | 300 | 1 | 2020-06-21 06:24:01 | 2020-06-21 12:39:00 | n |
| 154784 | IIEES SC | ILBA | Z | 61 | 1 | 2020-06-21 06:24:08 | 2020-06-21 12:39:00 | n |
| 154785 | IIEES SC | ASAO | Z | 180 | 1 | 2020-06-21 06:24:11 | 2020-06-21 12:39:00 | n |
| 154786 | IIEES SC | AMIS | Z | 99 | 1 | 2020-06-21 06:24:25 | 2020-06-21 12:39:00 | n |
| 154787 | IIEES SC | THKV | Z | 35 | 1 | 2020-06-21 06:24:58 | 2020-06-21 12:39:00 | n |
| 154788 | IIEES SC | CHTH | Z | 17 | 1 | 2020-06-21 06:24:57 | 2020-06-21 12:39:00 | n |
| 154789 | IIEES SC | SRSL | Z | 29 | 1 | 2020-06-21 06:25:09 | 2020-06-21 12:39:00 | n |
| 154790 | IIEES SC | DAMV | Z | 4.2 | 1 | 2020-06-21 06:25:27 | 2020-06-21 12:39:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | SNGE | Z | IP | I | 2020-06-21 06:23:37 | 0.3 | y | 166 | 333 | |||
| IIEES SC | KHMZ | Z | IP | I | 2020-06-21 06:23:37 | -0.5 | y | 166 | 91 | |||
| IIEES SC | GTMR | Z | IP | I | 2020-06-21 06:23:37 | -0.1 | y | 166 | 148 | |||
| IIEES SC | ILBA | Z | IP | I | 2020-06-21 06:23:39 | 0 | y | 177 | 265 | |||
| IIEES SC | ASAO | Z | IP | I | 2020-06-21 06:23:41 | -0.2 | y | 189 | 64 | |||
| IIEES SC | AMIS | Z | IP | I | 2020-06-21 06:23:49 | 0.2 | y | 255 | 155 | |||
| IIEES SC | THKV | Z | IP | I | 2020-06-21 06:24:01 | 1.1 | y | 344 | 46 | |||
| IIEES SC | CHTH | Z | IP | I | 2020-06-21 06:24:04 | 1.3 | y | 355 | 49 | |||
| IIEES SC | SRSL | Z | IP | I | 2020-06-21 06:24:02 | -0.6 | y | 366 | 317 | |||
| IIEES SC | DAMV | Z | IP | I | 2020-06-21 06:24:08 | -0.4 | y | 411 | 60 | |||
