Magnitude |
:3.3 |
| Date & Time (UTC) | 2020-06-22 10:57:17.7 |
| Date & Time (Local) | 1399/4/2 15:27:17.7 |

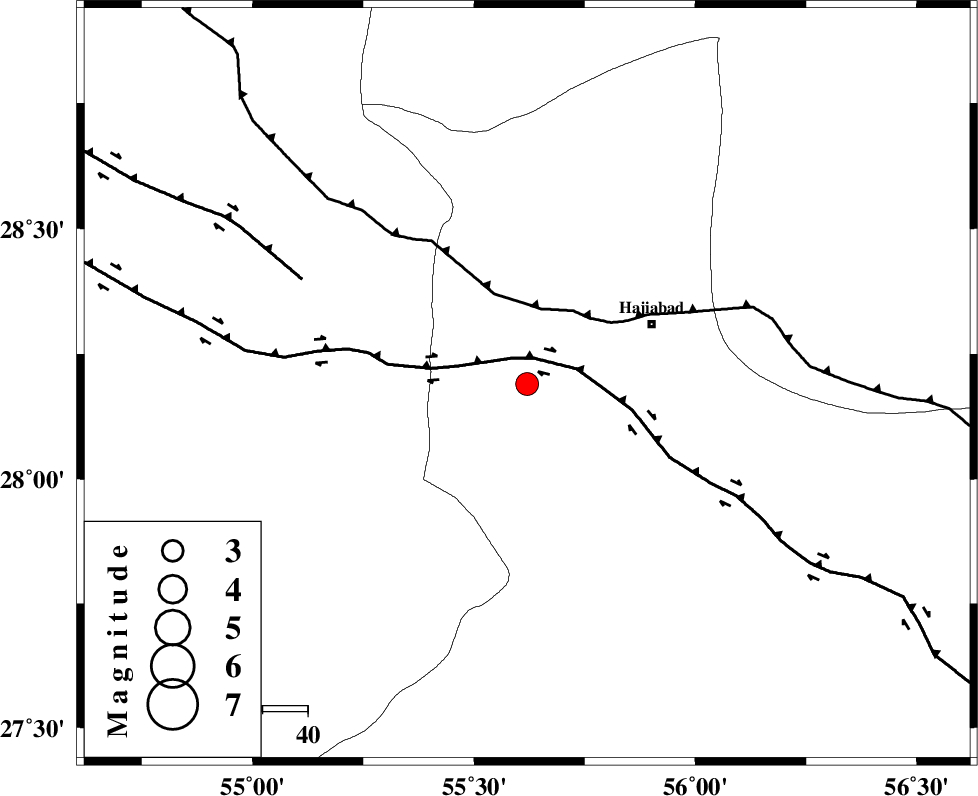

| Location | Lat:28.19 Lon: 55.62 |
| Region | Hormozgan Province, 31 km South-West of Hajiabad |
Nearest Cities |
|
| 31 km South West of Hajiabad, Hormozgan Province | |
| 41 km North East of Darz, Fars Province | |
| 43 km East of Fadami, Fars Province | |
| 43 km South East of Doborji, Fars Province | |
| 50 km South East of Tal bargah, Fars Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| HZF2 (Length: 437 km) , Distance to epicenter: 6 km | |
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 17 km | |
| HZF1 (Length: 102 km) , Distance to epicenter: 55 km | |
| Number of Phases | 8 |
| RMS | 0.3 |
| Number of Stations | 7 |
| Error in Latitude | >3 km |
| Error in Longitude | 0 km |
| Error in Depth | 17 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 154858 | IIEES SC | BNDS | Z | 970 | 1 | 2020-06-22 10:57:52 | 2020-06-23 11:34:00 | n |
| 154859 | IIEES SC | KRBR | Z | 170 | 1 | 2020-06-22 10:58:29 | 2020-06-23 11:34:00 | n |
| 154860 | IIEES SC | GHIR | Z | 16 | 1 | 2020-06-22 10:58:30 | 2020-06-23 11:34:00 | n |
| 154861 | IIEES SC | LMD1 | Z | 180 | 1 | 2020-06-22 10:58:43 | 2020-06-23 11:34:00 | n |
| 154862 | IIEES SC | YZKH | Z | 9.5 | 1 | 2020-06-22 11:00:03 | 2020-06-23 11:34:00 | n |
| 154863 | IIEES SC | KLNJ | Z | 16 | 1 | 2020-06-22 10:59:57 | 2020-06-23 11:34:00 | n |
| 154864 | IIEES SC | BSRN | Z | 11 | 1 | 2020-06-22 11:00:02 | 2020-06-23 11:34:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | BNDS | Z | IP | I | 2020-06-22 10:57:35 | -0.1 | y | 100 | 148 | |||
| IIEES SC | KRBR | Z | IP | I | 2020-06-22 10:57:54 | -0.1 | y | 222 | 29 | |||
| IIEES SC | GHIR | Z | IP | I | 2020-06-22 10:57:57 | -0.1 | y | 255 | 272 | |||
| IIEES SC | LMD1 | Z | IP | I | 2020-06-22 10:57:58 | 0.5 | y | 255 | 249 | |||
| IIEES SC | YZKH | Z | IP | I | 2020-06-22 10:58:25 | -0.1 | y | 478 | 348 | |||
| IIEES SC | KLNJ | Z | IP | I | 2020-06-22 10:58:27 | -0.6 | y | 500 | 309 | |||
| IIEES SC | ZHSF | Z | IP | I | 2020-06-22 10:58:37 | 6.1 | n | 4 | 522 | 73 | ||
| IIEES SC | BSRN | Z | IP | I | 2020-06-22 10:58:33 | 0.8 | y | 533 | 39 | |||
