Magnitude |
:4 |
| Date & Time (UTC) | 2020-07-01 05:16:30.9 |
| Date & Time (Local) | 1399/4/11 09:46:30.9 |

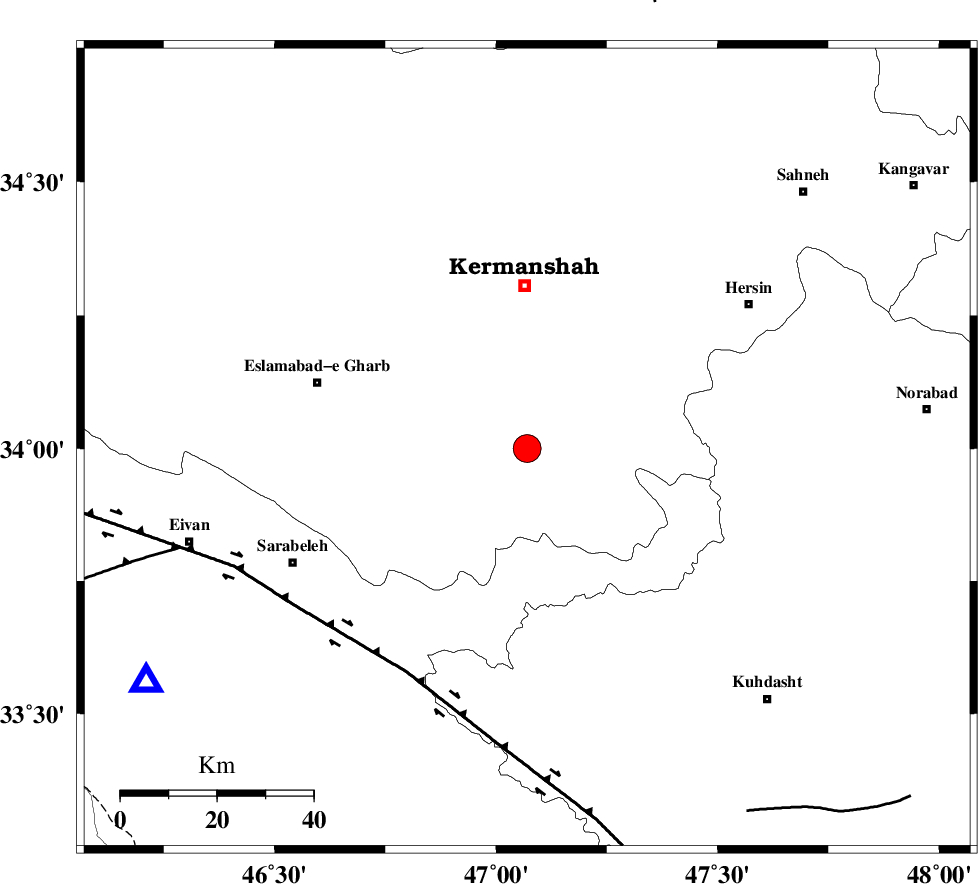

| Location | Lat:34 Lon: 47.07 |
| Region | Kermanshah Province, 34 km South of Kermanshah |
Nearest Cities |
|
| 8 km North of Buzhan, Kermanshah Province | |
| 10 km North of Chenar, Kermanshah Province | |
| 23 km South East of Helshi, Kermanshah Province | |
| 24 km North East of Qale-ye harsam, Kermanshah Province | |
| 28 km North East of Hamil, Kermanshah Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| HZF4 (Length: 492 km) , Distance to epicenter: 6 km | |
| SAHANEH_F (Length: 77 km) , Distance to epicenter: 77 km | |
| DINEHVAR_F (Length: 46 km) , Distance to epicenter: 80 km | |
| Number of Phases | 21 |
| RMS | 0.5 |
| Number of Stations | 18 |
| Error in Latitude | >3 km |
| Error in Longitude | 0 km |
| Error in Depth | 15 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 155195 | IIEES SC | ILBA | Z | 440 | 1 | 2020-07-01 05:17:11 | 2020-07-01 10:43:00 | n |
| 155196 | IIEES SC | SNGE | Z | 1000 | 1 | 2020-07-01 05:17:25 | 2020-07-01 10:43:00 | n |
| 155197 | IIEES SC | GTMR | Z | 990 | 1 | 2020-07-01 05:17:50 | 2020-07-01 10:43:00 | n |
| 155198 | IIEES SC | KHMZ | Z | 430 | 1 | 2020-07-01 05:18:05 | 2020-07-01 10:43:00 | n |
| 155199 | IIEES SC | ASAO | Z | 430 | 1 | 2020-07-01 05:18:04 | 2020-07-01 10:43:00 | n |
| 155200 | IIEES SC | SRSL | Z | 340 | 1 | 2020-07-01 05:18:08 | 2020-07-01 10:43:00 | n |
| 155201 | IIEES SC | ZNJK | Z | 59 | 1 | 2020-07-01 05:18:04 | 2020-07-01 10:43:00 | n |
| 155202 | IIEES SC | GHVR | Z | 600 | 1 | 2020-07-01 05:19:46 | 2020-07-01 10:43:00 | n |
| 155203 | IIEES SC | GIDE | Z | 310 | 1 | 2020-07-01 05:18:49 | 2020-07-01 10:43:00 | n |
| 155204 | IIEES SC | AZR | Z | 420 | 1 | 2020-07-01 05:18:58 | 2020-07-01 10:43:00 | n |
| 155205 | IIEES SC | CHTH | Z | 89 | 1 | 2020-07-01 05:18:42 | 2020-07-01 10:43:00 | n |
| 155206 | IIEES SC | DAMV | Z | 4.8 | 1 | 2020-07-01 05:18:06 | 2020-07-01 10:43:00 | n |
| 155207 | IIEES SC | GRMI | Z | 20 | 1 | 2020-07-01 05:19:32 | 2020-07-01 10:43:00 | n |
| 155208 | IIEES SC | KLNJ | Z | 140 | 1 | 2020-07-01 05:19:36 | 2020-07-01 10:43:00 | n |
| 155209 | IIEES SC | NASN | Z | 70 | 1 | 2020-07-01 05:19:37 | 2020-07-01 10:43:00 | n |
| 155210 | IIEES SC | GLO | Z | 110 | 1 | 2020-07-01 05:20:24 | 2020-07-01 10:43:00 | n |
| 155211 | IIEES SC | GLO | Z | 83 | 1.1 | 2020-07-01 05:18:30 | 2020-07-01 10:43:00 | n |
| 155212 | IIEES SC | TABS | Z | 14 | 1.08 | 2020-07-01 05:18:47 | 2020-07-01 10:43:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | ILBA | Z | IP | I | 2020-07-01 05:16:46 | 0 | y | 88 | 242 | |||
| IIEES SC | SNGE | Z | IP | I | 2020-07-01 05:16:49 | -2.2 | y | 122 | 12 | |||
| IIEES SC | GTMR | Z | IP | I | 2020-07-01 05:17:09 | -1 | y | 255 | 132 | |||
| IIEES SC | KHMZ | Z | IP | I | 2020-07-01 05:17:12 | -0.5 | y | 266 | 96 | |||
| IIEES SC | ASAO | Z | IP | I | 2020-07-01 05:17:13 | -0.1 | y | 278 | 77 | |||
| IIEES SC | SRSL | Z | IP | I | 2020-07-01 05:17:15 | 0.1 | y | 289 | 329 | |||
| IIEES SC | ZNJK | Z | IP | I | 2020-07-01 05:17:20 | 0.2 | y | 333 | 26 | |||
| IIEES SC | AMIS | Z | IP | I | 2020-07-01 05:17:20 | -0.2 | y | 333 | 141 | |||
| IIEES SC | GHVR | Z | IP | I | 2020-07-01 05:17:28 | 1.3 | y | 389 | 82 | |||
| IIEES SC | THKV | Z | IP | I | 2020-07-01 05:17:25 | -4.4 | n | 4 | 411 | 59 | ||
| IIEES SC | GIDE | Z | IP | I | 2020-07-01 05:17:30 | -0.4 | y | 411 | 38 | |||
| IIEES SC | AZR | Z | IP | I | 2020-07-01 05:17:31 | 0.1 | y | 422 | 346 | |||
| IIEES SC | CHTH | Z | IP | I | 2020-07-01 05:17:31 | -0.8 | y | 422 | 60 | |||
| IIEES SC | DAMV | Z | IP | I | 2020-07-01 05:17:39 | 0.4 | y | 489 | 68 | |||
| IIEES SC | GRMI | Z | IP | I | 2020-07-01 05:17:45 | -0.2 | y | 533 | 8 | |||
| IIEES SC | KLNJ | Z | IP | I | 2020-07-01 05:17:47 | 1.2 | y | 544 | 128 | |||
| IIEES SC | NASN | Z | IP | I | 2020-07-01 05:17:48 | 0.8 | y | 556 | 104 | |||
| IIEES SC | GLO | Z | IP | I | 2020-07-01 05:18:02 | -0.2 | y | 678 | 66 | |||
| IIEES SC | TABS | Z | IP | I | 2020-07-01 05:18:37 | 2.4 | y | 934 | 92 | |||
| IIEES SC | RAYN | 2 | IP | I | 2020-07-01 05:18:59 | -5.5 | n | 4 | 1167 | 188 | ||
| IIEES SC | GLO | Z | IVmB_BB | 2020-07-01 05:18:29 | y | 1 | 678 | 66 | ||||
