Magnitude |
:3.1 |
| Date & Time (UTC) | 2020-07-25 18:06:47.5 |
| Date & Time (Local) | 1399/5/4 22:36:47.5 |

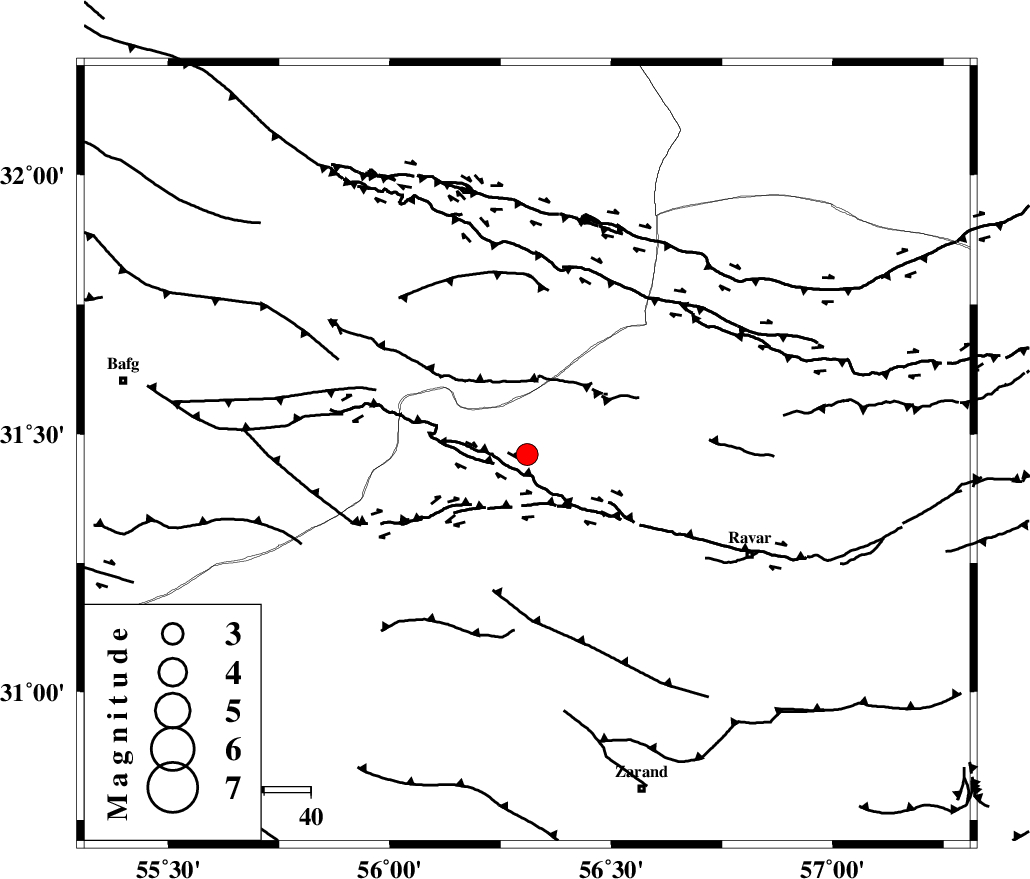

| Location | Lat:31.46 Lon: 56.31 |
| Region | Kerman Province, 52 km North-West of Ravar |
Nearest Cities |
|
| 5 km North of Kuhbanan, Kerman Province | |
| 11 km North of Jor, Kerman Province | |
| 25 km South of Asfih, Yazd Province | |
| 31 km East of Basab, Yazd Province | |
| 36 km North West of Toghroljerd, Kerman Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 9 km | |
| JAFARABAD_F (Length: 60 km) , Distance to epicenter: 28 km | |
| LAKARKUH_F (Length: 138 km) , Distance to epicenter: 64 km | |
| Number of Phases | 16 |
| RMS | 0.6 |
| Number of Stations | 11 |
| Error in Latitude | >4 km |
| Error in Longitude | 0 km |
| Error in Depth | 22 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 155821 | IIEES SC | KRBR | Z | 150 | 1 | 2020-07-25 18:07:46 | 2020-07-27 11:15:00 | n |
| 155822 | IIEES SC | YZKH | Z | 150 | 1 | 2020-07-25 18:07:47 | 2020-07-27 11:15:00 | n |
| 155823 | IIEES SC | TABS | Z | 36 | 1 | 2020-07-25 18:08:14 | 2020-07-27 11:15:00 | n |
| 155824 | IIEES SC | BSRN | Z | 46 | 1 | 2020-07-25 18:08:13 | 2020-07-27 11:15:00 | n |
| 155825 | IIEES SC | NASN | Z | 20 | 1 | 2020-07-25 18:08:37 | 2020-07-27 11:15:00 | n |
| 155826 | IIEES SC | SHRT | Z | 11 | 1 | 2020-07-25 18:09:08 | 2020-07-27 11:15:00 | n |
| 155827 | IIEES SC | SBZV | Z | 5.4 | 1 | 2020-07-25 18:09:54 | 2020-07-27 11:15:00 | n |
| 155828 | IIEES SC | SBZV | Z | 3.1 | 0.47 | 2020-07-25 18:08:12 | 2020-07-27 11:15:00 | n |
| 155829 | IIEES SC | TBJM | Z | 9.2 | 1 | 2020-07-25 18:09:54 | 2020-07-27 11:15:00 | n |
| 155830 | IIEES SC | TBJM | Z | 4.9 | 0.69 | 2020-07-25 18:08:29 | 2020-07-27 11:15:00 | n |
| 155831 | IIEES SC | AKL | Z | 2.3 | 1 | 2020-07-25 18:08:39 | 2020-07-27 11:15:00 | n |
| 155832 | IIEES SC | AKL | Z | 3.6 | 0.59 | 2020-07-25 18:08:41 | 2020-07-27 11:15:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | MEH | Z | IP | I | 2020-07-25 18:07:13 | -0.9 | y | 166 | 267 | |||
| IIEES SC | KRBR | Z | IP | I | 2020-07-25 18:07:15 | 0.2 | y | 166 | 165 | |||
| IIEES SC | YZKH | N | IS | I | 2020-07-25 18:07:44 | 1.6 | n | 4 | 189 | 302 | ||
| IIEES SC | YZKH | Z | IP | I | 2020-07-25 18:07:19 | 0.2 | y | 189 | 302 | |||
| IIEES SC | TABS | Z | IP | I | 2020-07-25 18:07:28 | 0.8 | y | 255 | 17 | |||
| IIEES SC | BSRN | Z | IP | I | 2020-07-25 18:07:28 | -0.9 | y | 278 | 78 | |||
| IIEES SC | NASN | Z | IP | I | 2020-07-25 18:07:41 | 0.8 | y | 366 | 294 | |||
| IIEES SC | SHRT | Z | IP | I | 2020-07-25 18:07:51 | -0.1 | y | 444 | 57 | |||
| IIEES SC | BNDS | Z | IP | I | 2020-07-25 18:07:56 | 4.4 | n | 4 | 455 | 182 | ||
| IIEES SC | KLNJ | Z | IP | I | 2020-07-25 18:07:55 | 3.5 | n | 4 | 455 | 264 | ||
| IIEES SC | ZHSF | Z | IP | I | 2020-07-25 18:07:53 | -1.1 | y | 478 | 116 | |||
| IIEES SC | SHRO | Z | IP | I | 2020-07-25 18:07:58 | 0.3 | n | 4 | 500 | 357 | ||
| IIEES SC | SBZV | Z | IP | I | 2020-07-25 18:08:04 | -0.5 | y | 556 | 12 | |||
| IIEES SC | TBJM | Z | IP | I | 2020-07-25 18:08:07 | 1.2 | y | 567 | 42 | |||
| IIEES SC | AKL | Z | IP | I | 2020-07-25 18:08:11 | -0.9 | y | 611 | 22 | |||
| IIEES SC | AKL | Z | IVmB_BB | 2020-07-25 18:08:21 | y | 1 | 611 | 22 | ||||
