Magnitude |
:3.8 |
| Date & Time (UTC) | 2020-08-01 08:37:59.9 |
| Date & Time (Local) | 1399/5/11 13:07:59.9 |
| Location | Lat:34.62 Lon: 45.42 |
| Region | Iraq, 19 km North-West of Qasr-E-Shirin |
Nearest Cities |
|
| 19 km North West of Qasr-E-Shirin, Kermanshah Province | |
| 24 km North West of Aqabarar, Kermanshah Province | |
| 25 km North of Khosravi, Kermanshah Province | |
| 25 km North West of Seyyed sohrab, Kermanshah Province | |
| 31 km South West of Tappeh rash, Kermanshah Province | |
| Depth | 16 km |
| Agency | |

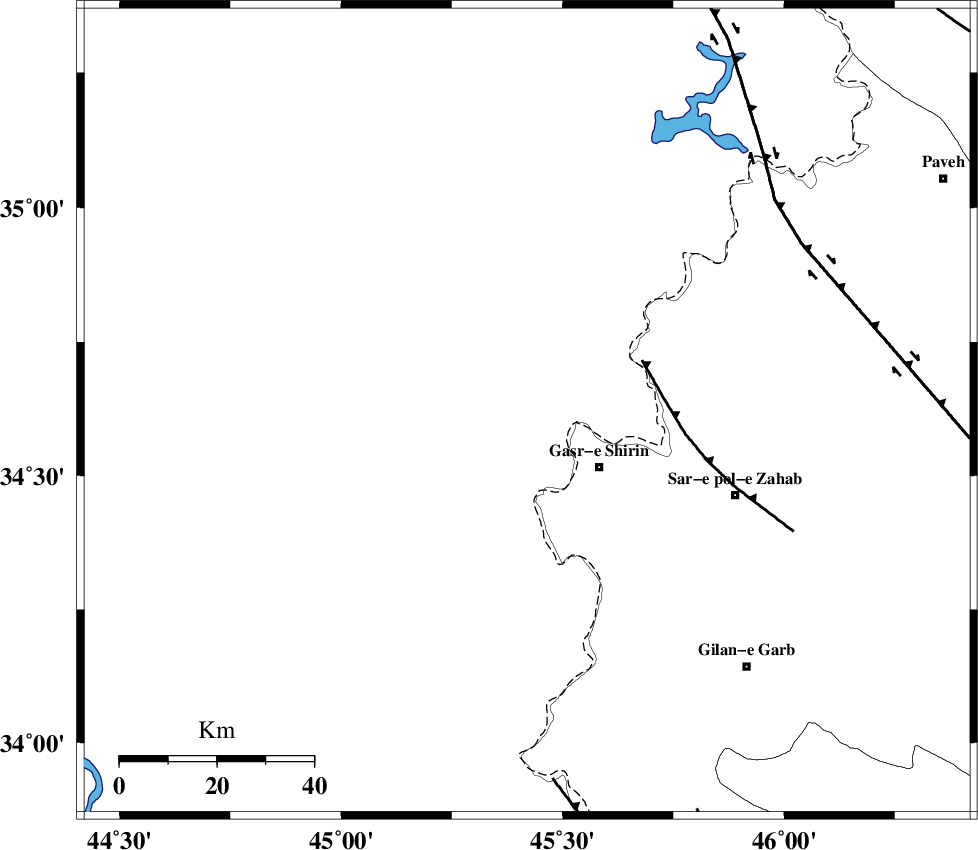

Faults within 150 km: |
|
| MFF8 (Length: 48 km) , Distance to epicenter: 26 km | |
| HZF4 (Length: 492 km) , Distance to epicenter: 66 km | |
| ZFF4 (Length: 128 km) , Distance to epicenter: 77 km | |
| Number of Phases | 14 |
| RMS | 0.6 |
| Number of Stations | 13 |
| Error in Latitude | >4 km |
| Error in Longitude | 0 km |
| Error in Depth | 7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 156002 | IIEES SC | ILBA | Z | 300 | 1 | 2020-08-01 08:38:42 | 2020-08-01 01:29:00 | n |
| 156003 | IIEES SC | SRSL | Z | 3500 | 1 | 2020-08-01 08:38:53 | 2020-08-01 01:29:00 | n |
| 156004 | IIEES SC | SNGE | Z | 520 | 1 | 2020-08-01 08:39:00 | 2020-08-01 01:29:00 | n |
| 156005 | IIEES SC | MAHB | Z | 1600 | 1 | 2020-08-01 08:39:11 | 2020-08-01 01:29:00 | n |
| 156006 | IIEES SC | AZR | Z | 2300 | 1 | 2020-08-01 08:39:48 | 2020-08-01 01:29:00 | n |
| 156007 | IIEES SC | ZNJK | Z | 48 | 1 | 2020-08-01 08:40:04 | 2020-08-01 01:29:00 | n |
| 156008 | IIEES SC | GTMR | Z | 47 | 1 | 2020-08-01 08:40:05 | 2020-08-01 01:29:00 | n |
| 156009 | IIEES SC | ASAO | Z | 76 | 1 | 2020-08-01 08:40:06 | 2020-08-01 01:29:00 | n |
| 156010 | IIEES SC | KHMZ | Z | 60 | 1 | 2020-08-01 08:39:52 | 2020-08-01 01:29:00 | n |
| 156011 | IIEES SC | GIDE | Z | 180 | 1 | 2020-08-01 08:40:26 | 2020-08-01 01:29:00 | n |
| 156012 | IIEES SC | GRMI | Z | 26 | 1 | 2020-08-01 08:40:38 | 2020-08-01 01:29:00 | n |
| 156013 | IIEES SC | THKV | Z | 47 | 1 | 2020-08-01 08:40:50 | 2020-08-01 01:29:00 | n |
| 156014 | IIEES SC | GHVR | Z | 450 | 1 | 2020-08-01 08:40:59 | 2020-08-01 01:29:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | ILBA | Z | IP | I | 2020-08-01 08:38:21 | -0.1 | y | 133 | 147 | |||
| IIEES SC | SRSL | Z | IP | I | 2020-08-01 08:38:28 | 0 | y | 177 | 0 | |||
| IIEES SC | SNGE | Z | IP | I | 2020-08-01 08:38:29 | 0 | y | 189 | 74 | |||
| IIEES SC | MAHB | Z | IP | I | 2020-08-01 08:38:36 | -0.5 | y | 244 | 6 | |||
| IIEES SC | AZR | Z | IP | I | 2020-08-01 08:38:51 | 1.3 | y | 344 | 9 | |||
| IIEES SC | ZNJK | Z | IP | I | 2020-08-01 08:38:53 | -0.4 | y | 378 | 52 | |||
| IIEES SC | GTMR | Z | IP | I | 2020-08-01 08:38:58 | -0.5 | y | 422 | 125 | |||
| IIEES SC | ASAO | Z | IP | I | 2020-08-01 08:39:00 | 0.3 | y | 422 | 91 | |||
| IIEES SC | KHMZ | Z | IP | I | 2020-08-01 08:39:01 | 0.1 | y | 433 | 103 | |||
| IIEES SC | GIDE | Z | IP | I | 2020-08-01 08:39:07 | 0.6 | y | 478 | 58 | |||
| IIEES SC | AMIS | Z | IP | I | 2020-08-01 08:39:04 | -3.5 | n | 4 | 489 | 132 | ||
| IIEES SC | GRMI | Z | IP | I | 2020-08-01 08:39:10 | -0.5 | y | 511 | 25 | |||
| IIEES SC | THKV | Z | IP | I | 2020-08-01 08:39:10 | -0.9 | y | 522 | 74 | |||
| IIEES SC | GHVR | Z | IP | I | 2020-08-01 08:39:15 | 1.4 | y | 533 | 92 | |||
