Magnitude |
:3.8 |
| Date & Time (UTC) | 2020-08-02 05:35:37.5 |
| Date & Time (Local) | 1399/5/12 10:05:37.5 |

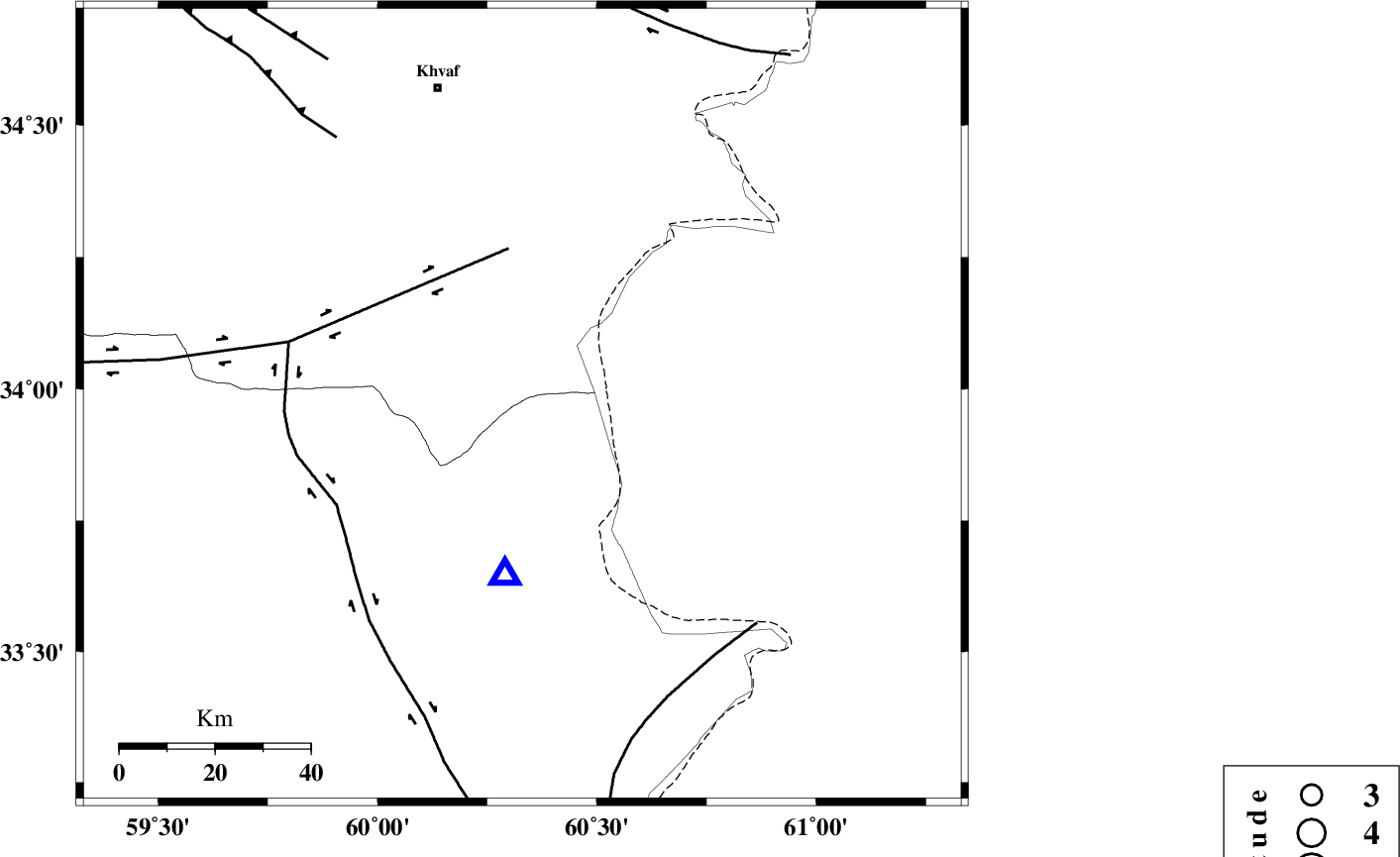

| Location | Lat:33.97 Lon: 60.33 |
| Region | , 69 km South-East of Khaf |
Nearest Cities |
|
| 10 km of Sirkhun, Khorasan(center) Province | |
| 20 km South of Chahkand, Khorasan(center) Province | |
| 29 km South of Niyazabad, Khorasan(center) Province | |
| 30 km South East of Pasgah-e chazul, Khorasan(center) Province | |
| 39 km North East of Shahdokht, Khorasan(south) Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| DASHT_E_BAYAZ_F (Length: 177 km) , Distance to epicenter: 33 km | |
| ABRIZ_F (Length: 114 km) , Distance to epicenter: 44 km | |
| PATARGAN_F (Length: 52 km) , Distance to epicenter: 67 km | |
| Number of Phases | 16 |
| RMS | 0.3 |
| Number of Stations | 12 |
| Error in Latitude | >2 km |
| Error in Longitude | 0 km |
| Error in Depth | 3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 156053 | IIEES SC | SHRT | Z | 15000 | 1 | 2020-08-02 05:35:50 | 2020-08-03 11:22:00 | n |
| 156054 | IIEES SC | TBJM | Z | 14000 | 1 | 2020-08-02 05:36:24 | 2020-08-03 11:22:00 | n |
| 156055 | IIEES SC | BSRN | Z | 180 | 1 | 2020-08-02 05:36:51 | 2020-08-03 11:22:00 | n |
| 156056 | IIEES SC | TABS | Z | 170 | 1 | 2020-08-02 05:37:19 | 2020-08-03 11:22:00 | n |
| 156057 | IIEES SC | AKL | Z | 210 | 1 | 2020-08-02 05:37:24 | 2020-08-03 11:22:00 | n |
| 156058 | IIEES SC | KAGH | Z | 82 | 1 | 2020-08-02 05:37:17 | 2020-08-03 11:22:00 | n |
| 156059 | IIEES SC | SBZV | Z | 110 | 1 | 2020-08-02 05:37:34 | 2020-08-03 11:22:00 | n |
| 156060 | IIEES SC | SHRO | Z | 2.4 | 1 | 2020-08-02 05:38:09 | 2020-08-03 11:22:00 | n |
| 156061 | IIEES SC | BJRD | Z | 24 | 1 | 2020-08-02 05:38:14 | 2020-08-03 11:22:00 | n |
| 156062 | IIEES SC | MRVT | Z | 19 | 1 | 2020-08-02 05:38:20 | 2020-08-03 11:22:00 | n |
| 156063 | IIEES SC | MRVT | Z | 13 | 0.83 | 2020-08-02 05:37:18 | 2020-08-03 11:22:00 | n |
| 156064 | IIEES SC | YZKH | Z | 43 | 1 | 2020-08-02 05:38:31 | 2020-08-03 11:22:00 | n |
| 156065 | IIEES SC | YZKH | Z | 40 | 0.7 | 2020-08-02 05:37:19 | 2020-08-03 11:22:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | SHRT | N | IS | I | 2020-08-02 05:35:49 | -0.3 | y | 33 | 186 | |||
| IIEES SC | SHRT | Z | IP | I | 2020-08-02 05:35:44 | 0 | y | 33 | 186 | |||
| IIEES SC | TBJM | Z | IP | I | 2020-08-02 05:36:01 | 0.2 | y | 144 | 360 | |||
| IIEES SC | BSRN | Z | IP | I | 2020-08-02 05:36:17 | 0.5 | y | 244 | 207 | |||
| IIEES SC | TABS | Z | IP | I | 2020-08-02 05:36:23 | 0.1 | y | 300 | 263 | |||
| IIEES SC | AKL | Z | IP | I | 2020-08-02 05:36:26 | 0.1 | y | 322 | 334 | |||
| IIEES SC | KAGH | Z | IP | I | 2020-08-02 05:36:26 | 0 | y | 333 | 354 | |||
| IIEES SC | SBZV | Z | IP | I | 2020-08-02 05:36:31 | -0.1 | y | 366 | 317 | |||
| IIEES SC | SHRO | Z | IP | I | 2020-08-02 05:36:41 | -0.8 | y | 455 | 300 | |||
| IIEES SC | ZHSF | Z | IP | I | 2020-08-02 05:36:40 | -5.4 | n | 4 | 489 | 175 | ||
| IIEES SC | BJRD | Z | IP | I | 2020-08-02 05:36:46 | -0.6 | y | 489 | 327 | |||
| IIEES SC | MRVT | Z | IP | I | 2020-08-02 05:36:55 | -0.3 | y | 556 | 317 | |||
| IIEES SC | YZKH | Z | IP | I | 2020-08-02 05:36:56 | 0.4 | y | 567 | 252 | |||
| IIEES SC | MEH | Z | IP | I | 2020-08-02 05:37:02 | 0.8 | n | 4 | 611 | 242 | ||
| IIEES SC | MRVT | Z | IVmB_BB | 2020-08-02 05:37:42 | y | 1 | 556 | 317 | ||||
| IIEES SC | YZKH | Z | IVmB_BB | 2020-08-02 05:37:24 | y | 1 | 567 | 252 | ||||
