Magnitude |
:5.2 |
| Date & Time (UTC) | 2020-08-09 09:16:19.9 |
| Date & Time (Local) | 1399/5/19 13:46:19.9 |

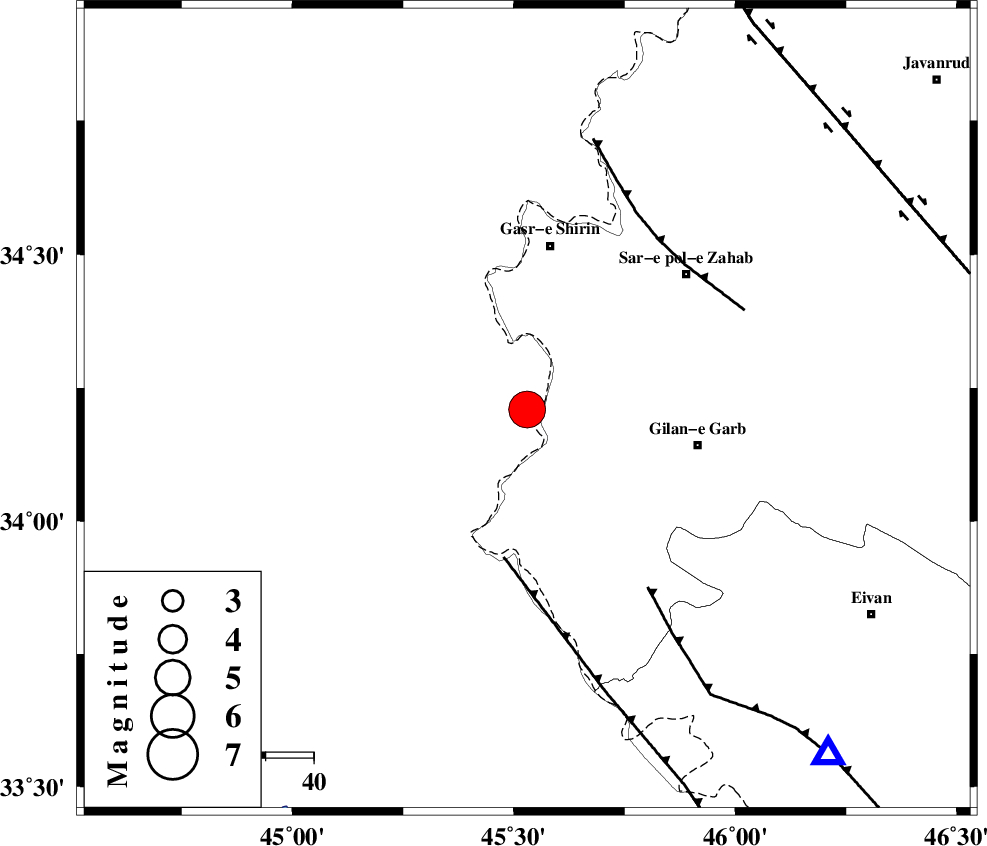

| Location | Lat:34.21 Lon: 45.53 |
| Region | Iraq, 34 km South of Qasr-E-Shirin |
Nearest Cities |
|
| 22 km South of Khosravi, Kermanshah Province | |
| 27 km South of Seyyed sohrab, Kermanshah Province | |
| 32 km South West of Chub baghan, Kermanshah Province | |
| 34 km South of Qasr-E-Shirin, Kermanshah Province | |
| 36 km North West of Gilan-E-Gharb, Kermanshah Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| ZFF4 (Length: 128 km) , Distance to epicenter: 31 km | |
| MFF8 (Length: 48 km) , Distance to epicenter: 45 km | |
| MFF7 (Length: 99 km) , Distance to epicenter: 45 km | |
| Number of Phases | 37 |
| RMS | 0.5 |
| Number of Stations | 38 |
| Error in Latitude | >1 km |
| Error in Longitude | 0 km |
| Error in Depth | 5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 156202 | IIEES SC | ILBA | Z | 16000 | 1 | 2020-08-09 09:16:57 | 2020-08-09 02:15:00 | n |
| 156203 | IIEES SC | SNGE | Z | 19000 | 1 | 2020-08-09 09:17:21 | 2020-08-09 02:15:00 | n |
| 156204 | IIEES SC | SRSL | Z | 14000 | 1 | 2020-08-09 09:17:28 | 2020-08-09 02:15:00 | n |
| 156205 | IIEES SC | MAHB | Z | 13000 | 1 | 2020-08-09 09:17:45 | 2020-08-09 02:15:00 | n |
| 156206 | IIEES SC | NSR4 | Z | 32000 | 1 | 2020-08-09 09:18:06 | 2020-08-09 02:15:00 | n |
| 156207 | IIEES SC | GTMR | Z | 3400 | 1 | 2020-08-09 09:18:28 | 2020-08-09 02:15:00 | n |
| 156208 | IIEES SC | AZR | Z | 13000 | 1 | 2020-08-09 09:18:20 | 2020-08-09 02:15:00 | n |
| 156209 | IIEES SC | ZNJK | Z | 420 | 1 | 2020-08-09 09:17:49 | 2020-08-09 02:15:00 | n |
| 156210 | IIEES SC | KHMZ | Z | 1800 | 1 | 2020-08-09 09:18:06 | 2020-08-09 02:15:00 | n |
| 156211 | IIEES SC | ASAO | Z | 2000 | 1 | 2020-08-09 09:18:30 | 2020-08-09 02:15:00 | n |
| 156212 | IIEES SC | AMIS | Z | 1600 | 1 | 2020-08-09 09:18:50 | 2020-08-09 02:15:00 | n |
| 156213 | IIEES SC | BSR2 | Z | 3500 | 1 | 2020-08-09 09:19:07 | 2020-08-09 02:15:00 | n |
| 156214 | IIEES SC | GIDE | Z | 2000 | 1 | 2020-08-09 09:18:55 | 2020-08-09 02:15:00 | n |
| 156215 | IIEES SC | THKV | Z | 1000 | 1 | 2020-08-09 09:19:11 | 2020-08-09 02:15:00 | n |
| 156216 | IIEES SC | GHVR | Z | 2300 | 1 | 2020-08-09 09:19:06 | 2020-08-09 02:15:00 | n |
| 156217 | IIEES SC | CHTH | Z | 2.5 | 1 | 2020-08-09 09:19:20 | 2020-08-09 02:15:00 | n |
| 156218 | IIEES SC | GRMI | Z | 350 | 1 | 2020-08-09 09:19:01 | 2020-08-09 02:15:00 | n |
| 156219 | IIEES SC | DAMV | Z | 450 | 1 | 2020-08-09 09:19:36 | 2020-08-09 02:15:00 | n |
| 156220 | IIEES SC | GLO | Z | 610 | 1 | 2020-08-09 09:19:39 | 2020-08-09 02:15:00 | n |
| 156221 | IIEES SC | AHRM | Z | 140 | 1 | 2020-08-09 09:19:29 | 2020-08-09 02:15:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | ILBA | N | IS | I | 2020-08-09 09:16:47 | -0.1 | y | 88 | 136 | |||
| IIEES SC | ILBA | Z | IP | I | 2020-08-09 09:16:35 | -0.1 | y | 88 | 136 | |||
| IIEES SC | SNGE | N | IP | I | 2020-08-09 09:16:51 | -0.6 | y | 189 | 60 | |||
| IIEES SC | SNGE | N | IS | I | 2020-08-09 09:17:15 | 0.4 | y | 189 | 60 | |||
| IIEES SC | SRSL | Z | IP | I | 2020-08-09 09:16:56 | 0.4 | y | 222 | 358 | |||
| IIEES SC | SRSL | Z | IS | I | 2020-08-09 09:17:23 | 1 | y | 222 | 358 | |||
| IIEES SC | MAHB | Z | IP | I | 2020-08-09 09:17:03 | 0.3 | y | 289 | 3 | |||
| IIEES SC | NSR4 | Z | IP | I | 2020-08-09 09:17:06 | 0.6 | y | 300 | 168 | |||
| IIEES SC | GTMR | Z | IP | I | 2020-08-09 09:17:15 | -0.7 | y | 389 | 120 | |||
| IIEES SC | AZR | Z | IP | I | 2020-08-09 09:17:16 | 0.1 | y | 389 | 6 | |||
| IIEES SC | ZNJK | Z | IP | I | 2020-08-09 09:17:17 | -0.1 | y | 400 | 46 | |||
| IIEES SC | QABG | Z | IP | I | 2020-08-09 09:17:18 | 0 | y | 400 | 66 | |||
| IIEES SC | KHMZ | Z | IP | I | 2020-08-09 09:17:18 | -1.5 | y | 411 | 97 | |||
| IIEES SC | ASAO | Z | IP | I | 2020-08-09 09:17:20 | 0.1 | y | 411 | 85 | |||
| IIEES SC | AMIS | Z | IP | I | 2020-08-09 09:17:23 | -1 | y | 455 | 129 | |||
| IIEES SC | BSR2 | Z | IP | I | 2020-08-09 09:17:27 | -0.2 | y | 478 | 156 | |||
| IIEES SC | GIDE | Z | IP | I | 2020-08-09 09:17:30 | 0.8 | y | 500 | 53 | |||
| IIEES SC | MRD | Z | IP | I | 2020-08-09 09:17:30 | -0.2 | y | 500 | 2 | |||
| IIEES SC | THKV | Z | IP | I | 2020-08-09 09:17:32 | -0.5 | y | 522 | 69 | |||
| IIEES SC | GHVR | Z | IP | I | 2020-08-09 09:17:33 | 0.1 | y | 522 | 87 | |||
| IIEES SC | CHTH | Z | IP | I | 2020-08-09 09:17:35 | -0.5 | y | 544 | 70 | |||
| IIEES SC | GRMI | Z | IP | I | 2020-08-09 09:17:36 | -0.8 | y | 556 | 23 | |||
| IIEES SC | DAMV | Z | IP | I | 2020-08-09 09:17:42 | -1.9 | y | 611 | 75 | |||
| IIEES SC | GNI | Z | IP | I | 2020-08-09 09:17:51 | 0.6 | y | 667 | 354 | |||
| IIEES SC | GLO | Z | IP | I | 2020-08-09 09:18:07 | 0.6 | y | 800 | 71 | |||
| IIEES SC | AHRM | N | IP | I | 2020-08-09 09:18:06 | -1.3 | y | 811 | 137 | |||
| IIEES SC | ARPR | Z | IP | I | 2020-08-09 09:18:12 | -0.3 | y | 845 | 310 | |||
| IIEES SC | SHRO | Z | IP | I | 2020-08-09 09:18:29 | 0.2 | y | 978 | 78 | |||
| IIEES SC | MRVT | Z | IP | I | 2020-08-09 09:18:35 | -0.3 | y | 1023 | 68 | |||
| IIEES SC | TABS | N | IP | I | 2020-08-09 09:18:39 | -1.8 | y | 1078 | 93 | |||
| IIEES SC | EIL | Z | IP | I | 2020-08-09 09:18:45 | -1.5 | y | 1123 | 243 | |||
| IIEES SC | SBZV | Z | IP | I | 2020-08-09 09:18:47 | -0.4 | y | 1123 | 78 | |||
| IIEES SC | BJRD | Z | IP | I | 2020-08-09 09:18:48 | -1.2 | y | 1145 | 70 | |||
| IIEES SC | AKL | Z | IP | I | 2020-08-09 09:19:00 | -1 | y | 1234 | 78 | |||
| IIEES SC | KAGH | Z | IP | I | 2020-08-09 09:19:14 | -0.1 | y | 1345 | 77 | |||
| IIEES SC | TBJM | Z | IP | I | 2020-08-09 09:19:15 | -1.4 | y | 1356 | 85 | |||
| IIEES SC | SHRT | Z | IP | I | 2020-08-09 09:19:15 | -1.9 | y | 1367 | 93 | |||
