Magnitude |
:3.3 |
| Date & Time (UTC) | 2020-08-12 08:11:21.6 |
| Date & Time (Local) | 1399/5/22 12:41:21.6 |

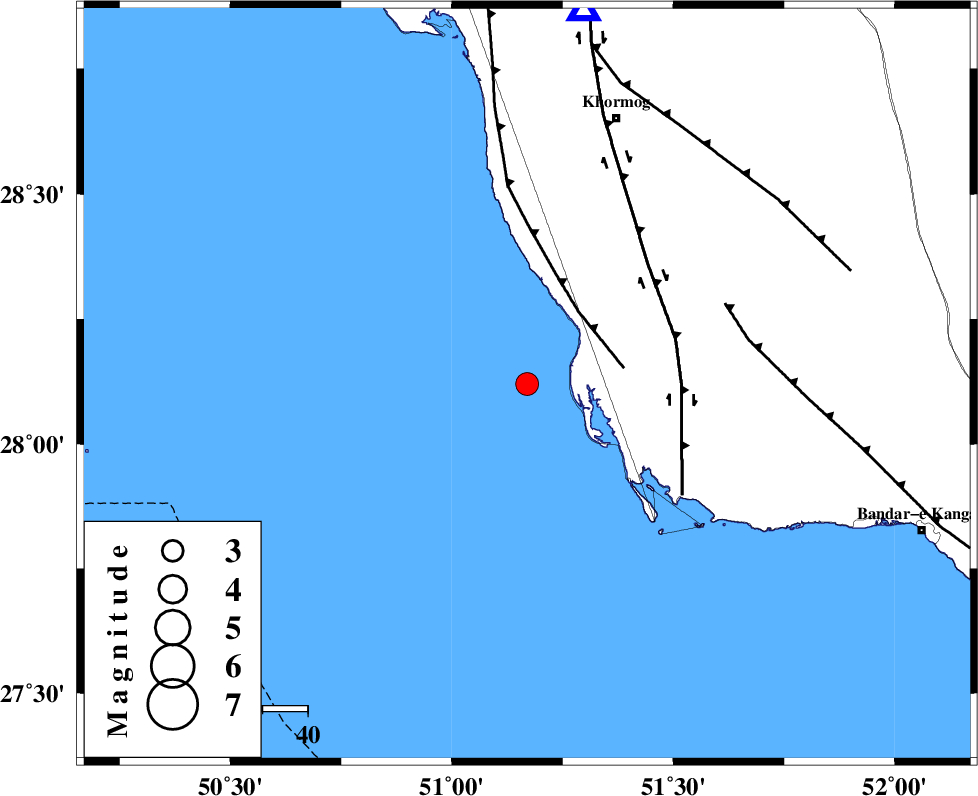

| Location | Lat:28.12 Lon: 51.17 |
| Region | Persian Gulf, 62 km South-West of Khormog |
Nearest Cities |
|
| 20 km West of Ziyarat, Bushehr Province | |
| 30 km North West of Bardkhun, Bushehr Province | |
| 35 km West of Abkesh, Bushehr Province | |
| 42 km South West of Kaki, Bushehr Province | |
| 44 km South West of Baduleh, Bushehr Province | |
| Depth | 13 km |
| Agency | |
Faults within 150 km: |
|
| ZFF2 (Length: 84 km) , Distance to epicenter: 20 km | |
| BORAZJAN_F (Length: 168 km) , Distance to epicenter: 34 km | |
| MFF3 (Length: 292 km) , Distance to epicenter: 47 km | |
| Number of Phases | 11 |
| RMS | 0.2 |
| Number of Stations | 10 |
| Error in Latitude | >3 km |
| Error in Longitude | 0 km |
| Error in Depth | 6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 156289 | IIEES SC | AHRM | Z | 120 | 1 | 2020-08-12 08:11:57 | 2020-08-16 10:38:00 | n |
| 156290 | IIEES SC | GHIR | Z | 0.24 | 1 | 2020-08-12 08:12:06 | 2020-08-16 10:38:00 | n |
| 156291 | IIEES SC | LMD1 | Z | 700 | 1 | 2020-08-12 08:12:38 | 2020-08-16 10:38:00 | n |
| 156292 | IIEES SC | KLNJ | Z | 50 | 1 | 2020-08-12 08:12:47 | 2020-08-16 10:38:00 | n |
| 156293 | IIEES SC | AMIS | Z | 58 | 1 | 2020-08-12 08:13:44 | 2020-08-16 10:38:00 | n |
| 156294 | IIEES SC | MEH | Z | 5.4 | 1 | 2020-08-12 08:13:09 | 2020-08-16 10:38:00 | n |
| 156295 | IIEES SC | GTMR | Z | 24 | 1 | 2020-08-12 08:14:02 | 2020-08-16 10:38:00 | n |
| 156296 | IIEES SC | NASN | Z | 7.3 | 1 | 2020-08-12 08:13:35 | 2020-08-16 10:38:00 | n |
| 156297 | IIEES SC | YZKH | Z | 9.2 | 1 | 2020-08-12 08:13:41 | 2020-08-16 10:38:00 | n |
| 156298 | IIEES SC | ASAO | Z | 8.1 | 1 | 2020-08-12 08:14:31 | 2020-08-16 10:38:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | AHRM | Z | IP | I | 2020-08-12 08:11:35 | -0.4 | y | 88 | 9 | |||
| IIEES SC | GHIR | Z | IP | I | 2020-08-12 08:11:51 | 0.1 | y | 177 | 84 | |||
| IIEES SC | LMD1 | Z | IP | I | 2020-08-12 08:11:56 | -0.1 | y | 211 | 114 | |||
| IIEES SC | KLNJ | Z | IP | I | 2020-08-12 08:12:09 | -0.1 | y | 322 | 7 | |||
| IIEES SC | AMIS | Z | IP | I | 2020-08-12 08:12:23 | 0.2 | y | 433 | 335 | |||
| IIEES SC | MEH | Z | IP | I | 2020-08-12 08:12:31 | 0.3 | y | 489 | 43 | |||
| IIEES SC | GTMR | Z | IP | I | 2020-08-12 08:12:34 | -0.1 | y | 522 | 338 | |||
| IIEES SC | NASN | Z | IP | I | 2020-08-12 08:12:37 | 0.3 | y | 544 | 17 | |||
| IIEES SC | YZKH | Z | IP | I | 2020-08-12 08:12:40 | -0.8 | y | 578 | 35 | |||
| IIEES SC | KRBR | Z | IP | I | 2020-08-12 08:12:43 | 1.1 | n | 4 | 578 | 69 | ||
| IIEES SC | ASAO | Z | IP | I | 2020-08-12 08:12:59 | 0.7 | y | 722 | 351 | |||
