Magnitude |
:3.3 |
| Date & Time (UTC) | 2020-08-15 18:17:50.0 |
| Date & Time (Local) | 1399/5/25 22:47:50.0 |

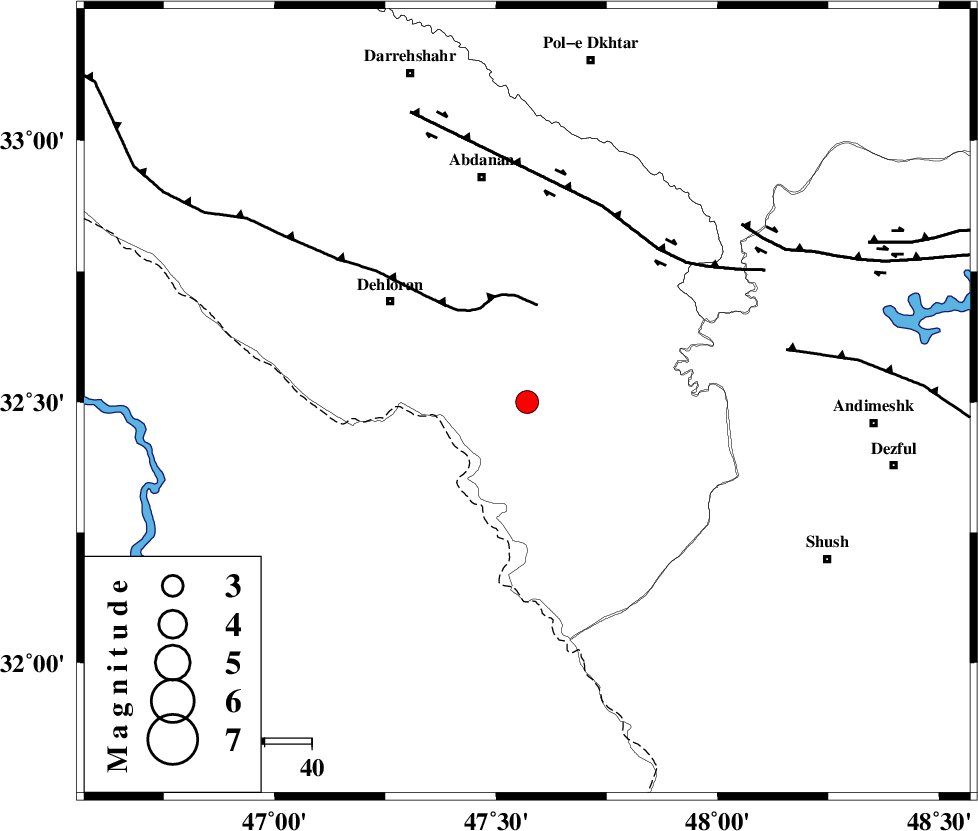

| Location | Lat:32.5 Lon: 47.57 |
| Region | Ilam Province, 36 km South-East of Dehloran |
Nearest Cities |
|
| 20 km East of Musian, Ilam Province | |
| 36 km South East of Dehloran, Ilam Province | |
| 44 km South of Sarabbagh, Ilam Province | |
| 49 km South East of Abdanan, Ilam Province | |
| 66 km South East of Bishehzar, Ilam Province | |
| Depth | 24 km |
| Agency | |
Faults within 150 km: |
|
| MFF6 (Length: 144 km) , Distance to epicenter: 21 km | |
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 43 km | |
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 56 km | |
| Number of Phases | 16 |
| RMS | 0.5 |
| Number of Stations | 16 |
| Error in Latitude | >3 km |
| Error in Longitude | 0 km |
| Error in Depth | 4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 156337 | IIEES SC | ILBA | Z | 180 | 1 | 2020-08-15 18:18:45 | 2020-08-17 10:15:00 | n |
| 156338 | IIEES SC | KHMZ | Z | 65 | 1 | 2020-08-15 18:19:07 | 2020-08-17 10:15:00 | n |
| 156339 | IIEES SC | SNGE | Z | 96 | 1 | 2020-08-15 18:19:17 | 2020-08-17 10:15:00 | n |
| 156340 | IIEES SC | ASAO | Z | 72 | 1 | 2020-08-15 18:19:23 | 2020-08-17 10:15:00 | n |
| 156341 | IIEES SC | GHVR | Z | 700 | 1 | 2020-08-15 18:19:29 | 2020-08-17 10:15:00 | n |
| 156342 | IIEES SC | KLNJ | Z | 31 | 1 | 2020-08-15 18:20:12 | 2020-08-17 10:15:00 | n |
| 156343 | IIEES SC | SRSL | Z | 41 | 1 | 2020-08-15 18:20:25 | 2020-08-17 10:15:00 | n |
| 156344 | IIEES SC | ZNJK | Z | 7 | 1 | 2020-08-15 18:19:56 | 2020-08-17 10:15:00 | n |
| 156345 | IIEES SC | THKV | Z | 19 | 1 | 2020-08-15 18:20:32 | 2020-08-17 10:15:00 | n |
| 156346 | IIEES SC | NASN | Z | 8 | 1 | 2020-08-15 18:20:17 | 2020-08-17 10:15:00 | n |
| 156347 | IIEES SC | CHTH | Z | 2.5 | 1 | 2020-08-15 18:20:49 | 2020-08-17 10:15:00 | n |
| 156348 | IIEES SC | MAHB | Z | 32 | 1 | 2020-08-15 18:19:54 | 2020-08-17 10:15:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | ILBA | N | IS | I | 2020-08-15 18:18:40 | 0.3 | y | 177 | 314 | |||
| IIEES SC | ILBA | Z | IP | I | 2020-08-15 18:18:18 | -0.3 | y | 177 | 314 | |||
| IIEES SC | AMIS | Z | IP | I | 2020-08-15 18:18:20 | 0.5 | y | 189 | 120 | |||
| IIEES SC | KHMZ | Z | IP | I | 2020-08-15 18:18:28 | -0.9 | y | 266 | 58 | |||
| IIEES SC | SNGE | Z | IP | I | 2020-08-15 18:18:33 | 0.4 | y | 289 | 356 | |||
| IIEES SC | ASAO | Z | IP | I | 2020-08-15 18:18:37 | 0.2 | y | 322 | 45 | |||
| IIEES SC | QABG | Z | IP | I | 2020-08-15 18:18:47 | 1 | y | 400 | 28 | |||
| IIEES SC | GHVR | Z | IP | I | 2020-08-15 18:18:47 | -0.2 | y | 411 | 57 | |||
| IIEES SC | KLNJ | Z | IP | I | 2020-08-15 18:18:48 | -0.4 | y | 411 | 113 | |||
| IIEES SC | SRSL | N | IS | I | 2020-08-15 18:19:41 | 0.1 | y | 455 | 334 | |||
| IIEES SC | SRSL | Z | IP | I | 2020-08-15 18:18:53 | -0.6 | y | 455 | 334 | |||
| IIEES SC | ZNJK | Z | IP | I | 2020-08-15 18:18:55 | -0.7 | y | 478 | 12 | |||
| IIEES SC | THKV | Z | IP | I | 2020-08-15 18:18:57 | 0.5 | y | 489 | 39 | |||
| IIEES SC | NASN | Z | IP | I | 2020-08-15 18:18:58 | 0.2 | y | 489 | 86 | |||
| IIEES SC | CHTH | Z | IP | I | 2020-08-15 18:18:59 | 0.1 | y | 500 | 41 | |||
| IIEES SC | MAHB | Z | IP | I | 2020-08-15 18:18:59 | -0.2 | y | 500 | 340 | |||
