Magnitude |
:3.9 |
| Date & Time (UTC) | 2020-08-22 18:40:26.0 |
| Date & Time (Local) | 1399/6/1 23:10:26.0 |

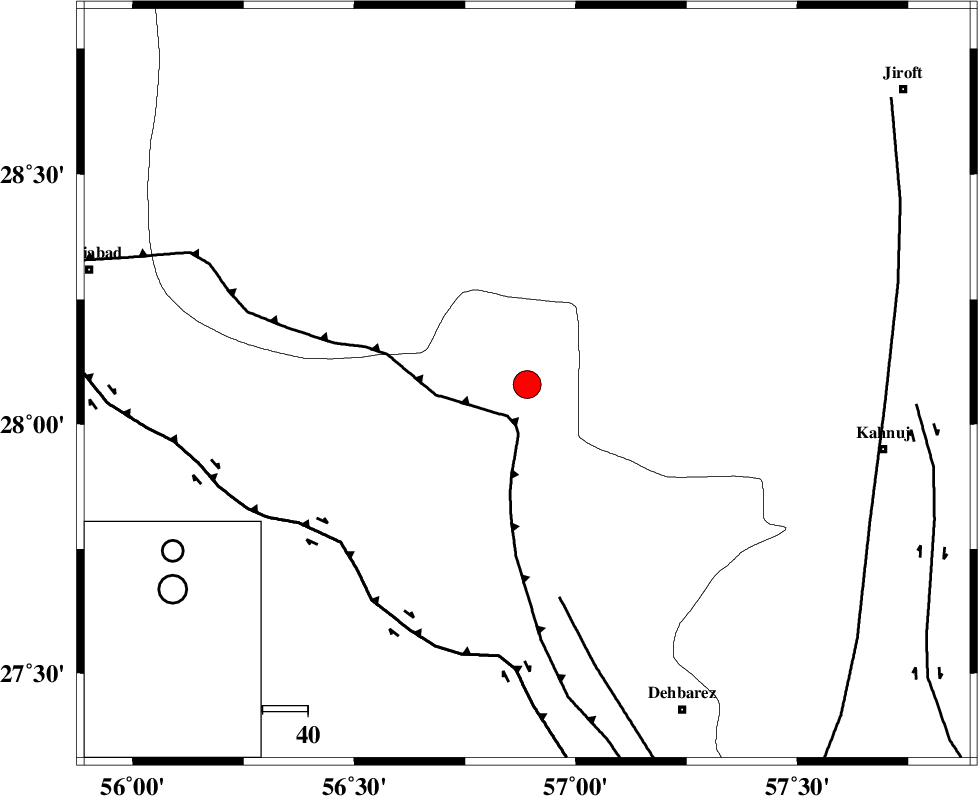

| Location | Lat:28.08 Lon: 56.89 |
| Region | Hormozgan Province, 80 km North-West of Kahnuj |
Nearest Cities |
|
| 29 km South of Sarkhan, Kerman Province | |
| 37 km North West of Faryab, Kerman Province | |
| 44 km South West of Hurpasefid, Kerman Province | |
| 48 km North West of Fariab, Hormozgan Province | |
| 50 km North West of Ziaratali, Hormozgan Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 8 km | |
| ZENDAN_MINAB_F_Z1 (Length: 183 km) , Distance to epicenter: 48 km | |
| HZF2 (Length: 437 km) , Distance to epicenter: 54 km | |
| Number of Phases | 25 |
| RMS | 1 |
| Number of Stations | 18 |
| Error in Latitude | >3 km |
| Error in Longitude | 0 km |
| Error in Depth | 14 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 156463 | IIEES SC | BNDS | Z | 1700 | 1 | 2020-08-22 18:41:06 | 2020-08-23 10:04:00 | n |
| 156464 | IIEES SC | KRBR | Z | 1200 | 1 | 2020-08-22 18:41:32 | 2020-08-23 10:04:00 | n |
| 156465 | IIEES SC | LMD1 | Z | 390 | 1 | 2020-08-22 18:42:36 | 2020-08-23 10:04:00 | n |
| 156466 | IIEES SC | ZHSF | Z | 50 | 1 | 2020-08-22 18:42:00 | 2020-08-23 10:04:00 | n |
| 156467 | IIEES SC | CHBR | Z | 180 | 1 | 2020-08-22 18:42:16 | 2020-08-23 10:04:00 | n |
| 156468 | IIEES SC | BSRN | Z | 69 | 1 | 2020-08-22 18:42:50 | 2020-08-23 10:04:00 | n |
| 156469 | IIEES SC | YZKH | Z | 44 | 1 | 2020-08-22 18:43:16 | 2020-08-23 10:04:00 | n |
| 156470 | IIEES SC | SRVN | Z | 26 | 1 | 2020-08-22 18:43:25 | 2020-08-23 10:04:00 | n |
| 156471 | IIEES SC | KLNJ | Z | 61 | 1 | 2020-08-22 18:42:57 | 2020-08-23 10:04:00 | n |
| 156472 | IIEES SC | KLNJ | Z | 24 | 0.62 | 2020-08-22 18:42:02 | 2020-08-23 10:04:00 | n |
| 156473 | IIEES SC | TABS | Z | 42 | 1 | 2020-08-22 18:43:50 | 2020-08-23 10:04:00 | n |
| 156474 | IIEES SC | TABS | Z | 50 | 1.2 | 2020-08-22 18:42:13 | 2020-08-23 10:04:00 | n |
| 156475 | IIEES SC | NASN | Z | 14 | 1 | 2020-08-22 18:43:21 | 2020-08-23 10:04:00 | n |
| 156476 | IIEES SC | NASN | Z | 10 | 0.85 | 2020-08-22 18:41:54 | 2020-08-23 10:04:00 | n |
| 156477 | IIEES SC | SHRT | Z | 18 | 1 | 2020-08-22 18:44:05 | 2020-08-23 10:04:00 | n |
| 156478 | IIEES SC | SHRT | Z | 20 | 0.91 | 2020-08-22 18:42:29 | 2020-08-23 10:04:00 | n |
| 156479 | IIEES SC | AMIS | Z | 44 | 1 | 2020-08-22 18:43:45 | 2020-08-23 10:04:00 | n |
| 156480 | IIEES SC | AMIS | Z | 11 | 1.22 | 2020-08-22 18:42:33 | 2020-08-23 10:04:00 | n |
| 156481 | IIEES SC | GTMR | Z | 15 | 0.55 | 2020-08-22 18:42:31 | 2020-08-23 10:04:00 | n |
| 156482 | IIEES SC | KHMZ | Z | 41 | 0.68 | 2020-08-22 18:42:25 | 2020-08-23 10:04:00 | n |
| 156483 | IIEES SC | SBZV | Z | 6.1 | 1 | 2020-08-22 18:42:31 | 2020-08-23 10:04:00 | n |
| 156484 | IIEES SC | AKL | Z | 4.9 | 1.01 | 2020-08-22 18:42:37 | 2020-08-23 10:04:00 | n |
| 156485 | IIEES SC | ASAO | Z | 8.4 | 0.59 | 2020-08-22 18:42:33 | 2020-08-23 10:04:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | BNDS | Z | IP | I | 2020-08-22 18:40:43 | -0.1 | y | 100 | 223 | |||
| IIEES SC | KRBR | Z | IP | I | 2020-08-22 18:41:01 | 0.6 | y | 211 | 357 | |||
| IIEES SC | LMD1 | Z | IP | I | 2020-08-22 18:41:21 | 0.8 | y | 378 | 257 | |||
| IIEES SC | ZHSF | Z | IP | I | 2020-08-22 18:41:23 | -2.1 | y | 411 | 66 | |||
| IIEES SC | CHBR | Z | IP | I | 2020-08-22 18:41:29 | -1 | y | 455 | 128 | |||
| IIEES SC | BSRN | Z | IP | I | 2020-08-22 18:41:33 | -0.1 | y | 478 | 27 | |||
| IIEES SC | YZKH | Z | IP | I | 2020-08-22 18:41:38 | -1.3 | y | 522 | 335 | |||
| IIEES SC | SRVN | Z | IP | I | 2020-08-22 18:41:44 | 1.6 | y | 544 | 98 | |||
| IIEES SC | KLNJ | Z | IP | I | 2020-08-22 18:41:49 | -0.9 | y | 611 | 302 | |||
| IIEES SC | TABS | Z | IP | I | 2020-08-22 18:41:51 | 0.8 | y | 622 | 2 | |||
| IIEES SC | NASN | Z | IP | I | 2020-08-22 18:41:54 | -1.2 | y | 656 | 323 | |||
| IIEES SC | SHRT | Z | IP | I | 2020-08-22 18:42:02 | 1.3 | y | 700 | 28 | |||
| IIEES SC | AMIS | Z | IP | I | 2020-08-22 18:42:15 | -2 | y | 834 | 298 | |||
| IIEES SC | GTMR | Z | IP | I | 2020-08-22 18:42:23 | -1.9 | y | 889 | 303 | |||
| IIEES SC | KHMZ | Z | IP | I | 2020-08-22 18:42:25 | -2.6 | y | 911 | 313 | |||
| IIEES SC | SBZV | Z | IP | I | 2020-08-22 18:42:28 | -0.6 | y | 922 | 4 | |||
| IIEES SC | AKL | Z | IP | I | 2020-08-22 18:42:34 | 1.2 | y | 956 | 11 | |||
| IIEES SC | ASAO | Z | IP | I | 2020-08-22 18:42:33 | -1.9 | y | 967 | 318 | |||
| IIEES SC | ILBA | E | IP | I | 2020-08-22 18:42:56 | -6.3 | n | 4 | 1189 | 301 | ||
| IIEES SC | SNGE | E | IP | I | 2020-08-22 18:42:58 | -4.5 | n | 4 | 1189 | 311 | ||
| IIEES SC | RAYN | 2 | IP | I | 2020-08-22 18:43:00 | -8.5 | n | 4 | 1245 | 246 | ||
| IIEES SC | TABS | Z | IVmB_BB | 2020-08-22 18:42:19 | y | 1 | 622 | 2 | ||||
| IIEES SC | AMIS | Z | IVmB_BB | 2020-08-22 18:43:15 | y | 1 | 834 | 298 | ||||
| IIEES SC | KHMZ | Z | IVmB_BB | 2020-08-22 18:42:25 | y | 1 | 911 | 313 | ||||
| IIEES SC | AKL | Z | IVmB_BB | 2020-08-22 18:42:36 | y | 1 | 956 | 11 | ||||
