Magnitude |
:3.6 |
| Date & Time (UTC) | 2020-08-23 20:00:35.3 |
| Date & Time (Local) | 1399/6/3 00:30:35.3 |

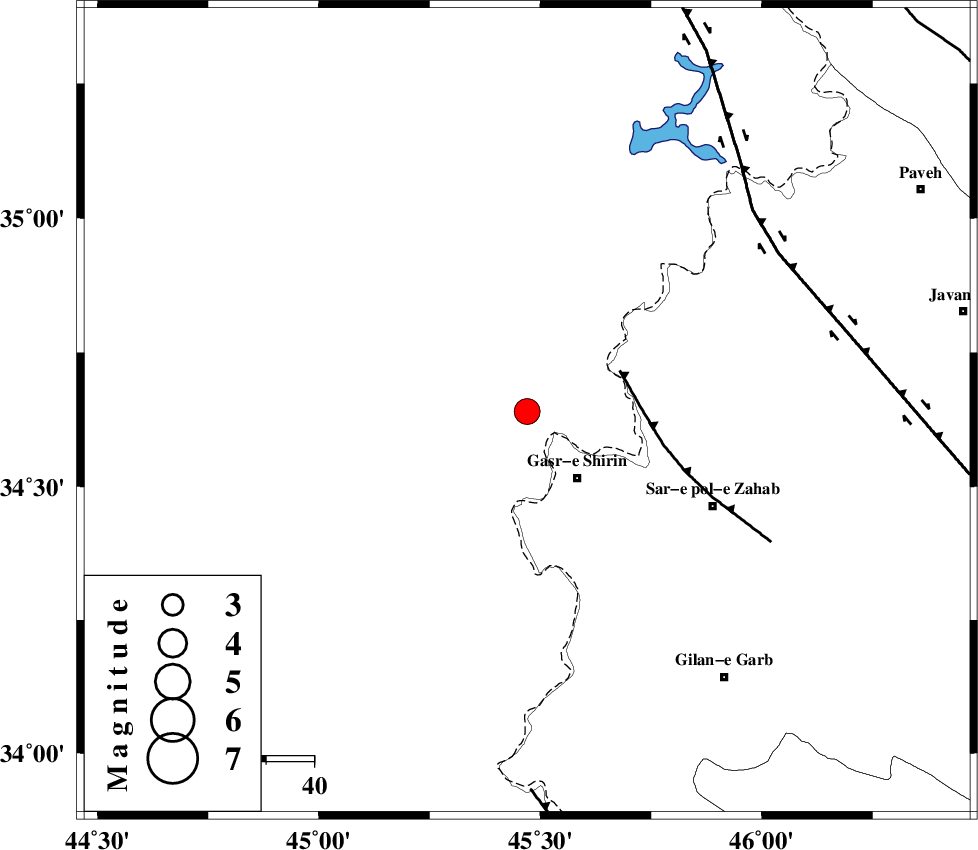

| Location | Lat:34.64 Lon: 45.47 |
| Region | Iraq, 17 km North-West of Qasr-E-Shirin |
Nearest Cities |
|
| 17 km North West of Qasr-E-Shirin, Kermanshah Province | |
| 21 km North West of Aqabarar, Kermanshah Province | |
| 25 km North West of Seyyed sohrab, Kermanshah Province | |
| 26 km South West of Tappeh rash, Kermanshah Province | |
| 27 km North of Khosravi, Kermanshah Province | |
| Depth | 41 km |
| Agency | |
Faults within 150 km: |
|
| MFF8 (Length: 48 km) , Distance to epicenter: 21 km | |
| HZF4 (Length: 492 km) , Distance to epicenter: 61 km | |
| ZFF4 (Length: 128 km) , Distance to epicenter: 79 km | |
| Number of Phases | 10 |
| RMS | 0.5 |
| Number of Stations | 9 |
| Error in Latitude | >5 km |
| Error in Longitude | 0 km |
| Error in Depth | 652 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 156601 | IIEES SC | ILBA | Z | 87 | 1 | 2020-08-23 20:01:32 | 2020-08-24 12:05:00 | n |
| 156602 | IIEES SC | SRSL | Z | 1500 | 1 | 2020-08-23 20:01:26 | 2020-08-24 12:05:00 | n |
| 156603 | IIEES SC | SNGE | Z | 580 | 1 | 2020-08-23 20:01:28 | 2020-08-24 12:05:00 | n |
| 156604 | IIEES SC | MAHB | Z | 1400 | 1 | 2020-08-23 20:01:40 | 2020-08-24 12:05:00 | n |
| 156605 | IIEES SC | AZR | Z | 2000 | 1 | 2020-08-23 20:02:17 | 2020-08-24 12:05:00 | n |
| 156606 | IIEES SC | ZNJK | Z | 33 | 1 | 2020-08-23 20:02:32 | 2020-08-24 12:05:00 | n |
| 156607 | IIEES SC | GTMR | Z | 33 | 1 | 2020-08-23 20:02:56 | 2020-08-24 12:05:00 | n |
| 156608 | IIEES SC | ASAO | Z | 43 | 1 | 2020-08-23 20:02:52 | 2020-08-24 12:05:00 | n |
| 156609 | IIEES SC | KHMZ | Z | 33 | 1 | 2020-08-23 20:02:55 | 2020-08-24 12:05:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | ILBA | Z | IP | I | 2020-08-23 20:00:56 | -0.1 | y | 133 | 149 | |||
| IIEES SC | SRSL | Z | IP | I | 2020-08-23 20:01:02 | -0.2 | y | 177 | 359 | |||
| IIEES SC | SNGE | Z | IP | I | 2020-08-23 20:01:02 | -0.6 | y | 177 | 74 | |||
| IIEES SC | MAHB | Z | IP | I | 2020-08-23 20:01:09 | -0.3 | y | 233 | 5 | |||
| IIEES SC | AZR | Z | IP | I | 2020-08-23 20:01:23 | 0.5 | y | 344 | 8 | |||
| IIEES SC | ZNJK | Z | IP | I | 2020-08-23 20:01:27 | 1 | y | 366 | 52 | |||
| IIEES SC | QABG | Z | IP | I | 2020-08-23 20:01:39 | 9.5 | n | 4 | 389 | 72 | ||
| IIEES SC | GTMR | Z | IP | I | 2020-08-23 20:01:32 | 0.4 | y | 411 | 125 | |||
| IIEES SC | ASAO | Z | IP | I | 2020-08-23 20:01:33 | 0.3 | y | 422 | 91 | |||
| IIEES SC | KHMZ | Z | IP | I | 2020-08-23 20:01:33 | -0.7 | y | 422 | 104 | |||
