Magnitude |
:3.2 |
| Date & Time (UTC) | 2020-09-04 02:23:51.7 |
| Date & Time (Local) | 1399/6/14 06:53:51.7 |

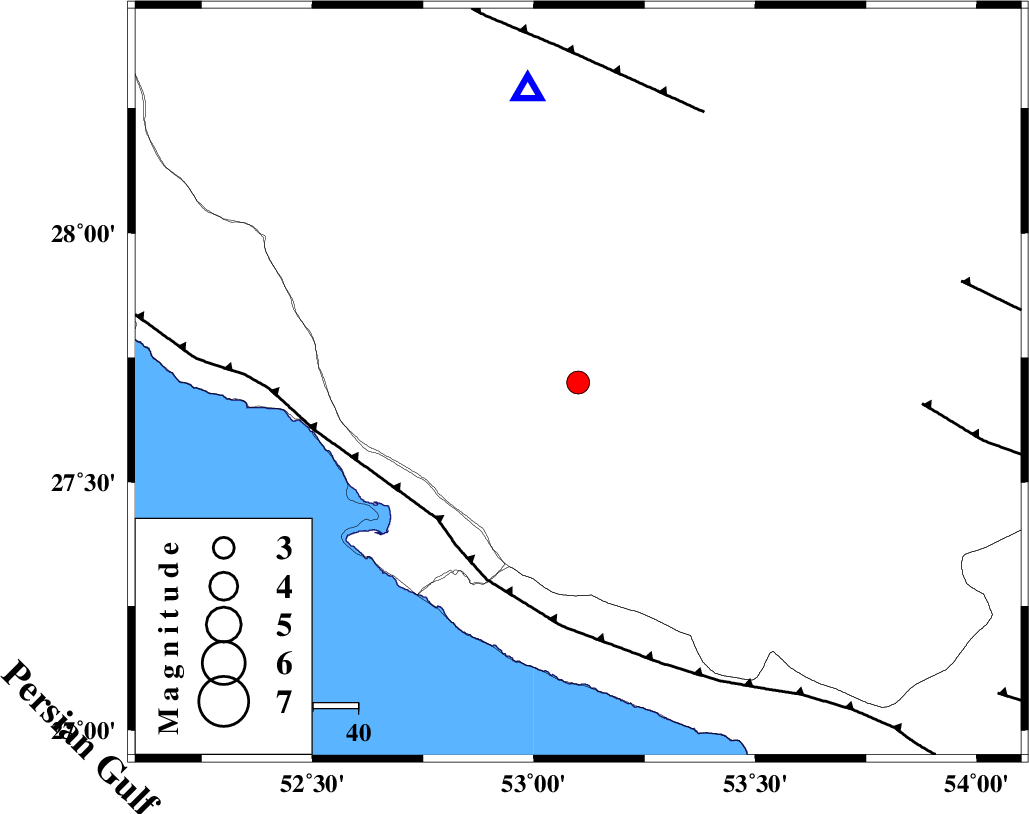

| Location | Lat:27.7 Lon: 53.1 |
| Region | Fars Province, 27 km North-East of Mehr |
Nearest Cities |
|
| 16 km North East of Alamarvdasht, Fars Province | |
| 27 km North East of Mehr, Fars Province | |
| 31 km North East of Khoozi, Fars Province | |
| 32 km North East of Ardavan-e olia, Fars Province | |
| 37 km South West of Khonj, Fars Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| MFF3 (Length: 292 km) , Distance to epicenter: 44 km | |
| QIR_F (Length: 130 km) , Distance to epicenter: 67 km | |
| LAR_F (Length: 99 km) , Distance to epicenter: 77 km | |
| Number of Phases | 12 |
| RMS | 0.4 |
| Number of Stations | 11 |
| Error in Latitude | >2 km |
| Error in Longitude | 0 km |
| Error in Depth | 3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 156767 | IIEES SC | LMD1 | Z | 2800 | 1 | 2020-09-04 02:24:09 | 2020-09-05 12:16:00 | n |
| 156768 | IIEES SC | GHIR | Z | 0.22 | 1 | 2020-09-04 02:24:08 | 2020-09-05 12:16:00 | n |
| 156769 | IIEES SC | AHRM | Z | 17 | 1 | 2020-09-04 02:25:15 | 2020-09-05 12:16:00 | n |
| 156770 | IIEES SC | BNDS | Z | 48 | 1 | 2020-09-04 02:25:30 | 2020-09-05 12:16:00 | n |
| 156771 | IIEES SC | KRBR | Z | 24 | 1 | 2020-09-04 02:26:13 | 2020-09-05 12:16:00 | n |
| 156772 | IIEES SC | YZKH | Z | 5.7 | 1 | 2020-09-04 02:26:34 | 2020-09-05 12:16:00 | n |
| 156773 | IIEES SC | NASN | Z | 9.9 | 1 | 2020-09-04 02:26:10 | 2020-09-05 12:16:00 | n |
| 156774 | IIEES SC | AMIS | Z | 4.2 | 0.5 | 2020-09-04 02:25:13 | 2020-09-05 12:16:00 | n |
| 156775 | IIEES SC | GTMR | Z | 8.4 | 1 | 2020-09-04 02:26:43 | 2020-09-05 12:16:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | LMD1 | Z | IP | I | 2020-09-04 02:23:59 | -0.1 | y | 44 | 171 | |||
| IIEES SC | GHIR | Z | IP | I | 2020-09-04 02:24:03 | -0.4 | y | 66 | 350 | |||
| IIEES SC | AHRM | Z | IP | I | 2020-09-04 02:24:28 | 1 | y | 222 | 306 | |||
| IIEES SC | BNDS | Z | IP | I | 2020-09-04 02:24:38 | 0.1 | y | 300 | 96 | |||
| IIEES SC | KLNJ | Z | IP | I | 2020-09-04 02:24:48 | -0.3 | y | 389 | 338 | |||
| IIEES SC | MEH | Z | IP | I | 2020-09-04 02:24:54 | 0.5 | y | 433 | 20 | |||
| IIEES SC | KRBR | Z | IP | I | 2020-09-04 02:24:54 | 0.3 | y | 433 | 55 | |||
| IIEES SC | YZKH | Z | IP | I | 2020-09-04 02:25:06 | -0.7 | y | 533 | 15 | |||
| IIEES SC | NASN | Z | IP | I | 2020-09-04 02:25:09 | -0.7 | y | 567 | 357 | |||
| IIEES SC | AMIS | Z | IP | I | 2020-09-04 02:25:11 | -0.1 | y | 578 | 320 | |||
| IIEES SC | GTMR | Z | IP | I | 2020-09-04 02:25:20 | -0.5 | y | 656 | 324 | |||
| IIEES SC | AMIS | Z | IVmB_BB | 2020-09-04 02:26:10 | y | 1 | 578 | 320 | ||||
