Magnitude |
:3.7 |
| Date & Time (UTC) | 2020-09-06 10:21:57.3 |
| Date & Time (Local) | 1399/6/16 14:51:57.3 |

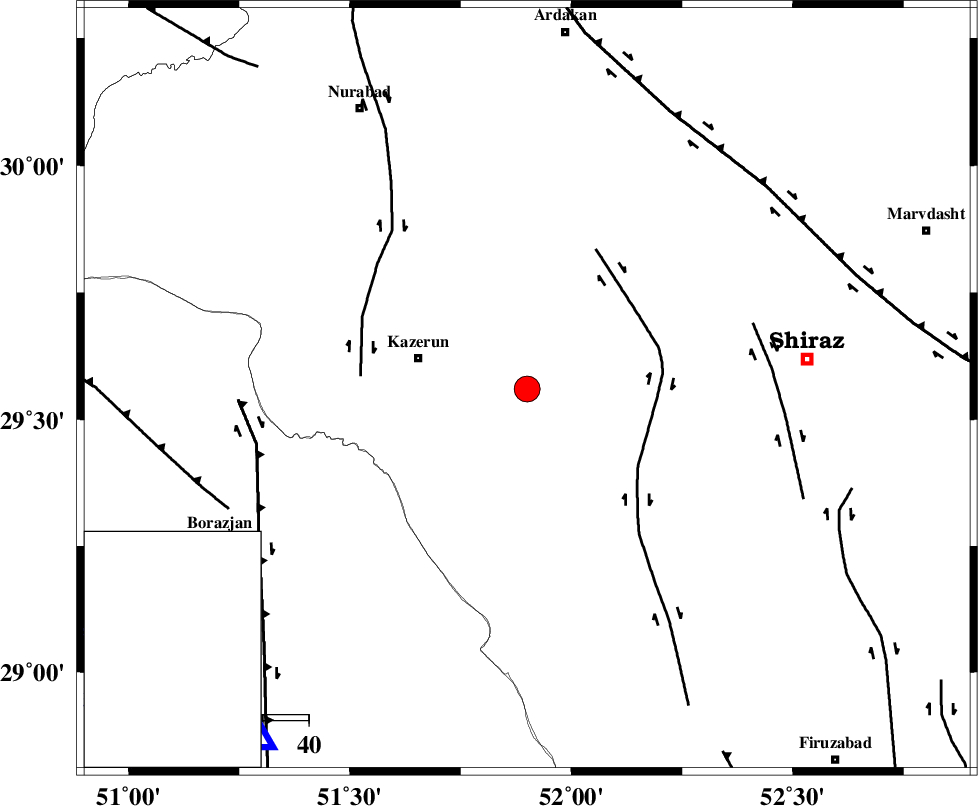

| Location | Lat:29.56 Lon: 51.9 |
| Region | Fars Province, 25 km -East of Kazerun |
Nearest Cities |
|
| 4 km of Kalani, Fars Province | |
| 23 km North East of Mehranjan, Fars Province | |
| 25 km East of Kazerun, Fars Province | |
| 26 km North West of Richi, Fars Province | |
| 27 km North of Dadin-e olia, Fars Province | |
| Depth | 17 km |
| Agency | |
Faults within 150 km: |
|
| KAREBASS_F (Length: 98 km) , Distance to epicenter: 28 km | |
| KAZERUN_F (Length: 96 km) , Distance to epicenter: 36 km | |
| SABZ_PUSHAN_F_Z3 (Length: 37 km) , Distance to epicenter: 51 km | |
| Number of Phases | 16 |
| RMS | 0.3 |
| Number of Stations | 15 |
| Error in Latitude | >1 km |
| Error in Longitude | 0 km |
| Error in Depth | 6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 156892 | IIEES SC | AHRM | Z | 480 | 1 | 2020-09-06 10:22:32 | 2020-09-07 09:30:00 | n |
| 156893 | IIEES SC | KLNJ | Z | 1000 | 1 | 2020-09-06 10:22:53 | 2020-09-07 09:30:00 | n |
| 156894 | IIEES SC | AMIS | Z | 190 | 1 | 2020-09-06 10:23:57 | 2020-09-07 09:30:00 | n |
| 156895 | IIEES SC | NASN | Z | 59 | 1 | 2020-09-06 10:23:55 | 2020-09-07 09:30:00 | n |
| 156896 | IIEES SC | YZKH | Z | 39 | 1 | 2020-09-06 10:24:01 | 2020-09-07 09:30:00 | n |
| 156897 | IIEES SC | GTMR | Z | 130 | 1 | 2020-09-06 10:24:15 | 2020-09-07 09:30:00 | n |
| 156898 | IIEES SC | KRBR | Z | 64 | 1 | 2020-09-06 10:24:26 | 2020-09-07 09:30:00 | n |
| 156899 | IIEES SC | KHMZ | Z | 27 | 1 | 2020-09-06 10:24:27 | 2020-09-07 09:30:00 | n |
| 156900 | IIEES SC | ASAO | Z | 30 | 1 | 2020-09-06 10:25:15 | 2020-09-07 09:30:00 | n |
| 156901 | IIEES SC | ASAO | Z | 9.7 | 0.47 | 2020-09-06 10:23:25 | 2020-09-07 09:30:00 | n |
| 156902 | IIEES SC | DAMV | Z | 25 | 1 | 2020-09-06 10:24:42 | 2020-09-07 09:30:00 | n |
| 156903 | IIEES SC | DAMV | Z | 51 | 0.43 | 2020-09-06 10:23:30 | 2020-09-07 09:30:00 | n |
| 156904 | IIEES SC | ILBA | Z | 12 | 1 | 2020-09-06 10:25:55 | 2020-09-07 09:30:00 | n |
| 156905 | IIEES SC | ILBA | Z | 7.4 | 0.79 | 2020-09-06 10:23:59 | 2020-09-07 09:30:00 | n |
| 156906 | IIEES SC | SNGE | Z | 15 | 1 | 2020-09-06 10:24:57 | 2020-09-07 09:30:00 | n |
| 156907 | IIEES SC | SNGE | Z | 5.1 | 0.53 | 2020-09-06 10:23:41 | 2020-09-07 09:30:00 | n |
| 156908 | IIEES SC | SHRO | Z | 3 | 1 | 2020-09-06 10:24:39 | 2020-09-07 09:30:00 | n |
| 156909 | IIEES SC | SHRO | Z | 3 | 1.16 | 2020-09-06 10:24:14 | 2020-09-07 09:30:00 | n |
| 156910 | IIEES SC | SRSL | Z | 12 | 0.56 | 2020-09-06 10:24:14 | 2020-09-07 09:30:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | AHRM | Z | IP | I | 2020-09-06 10:22:13 | 0 | y | 100 | 217 | |||
| IIEES SC | KLNJ | Z | IP | I | 2020-09-06 10:22:24 | 0.1 | y | 166 | 350 | |||
| IIEES SC | MEH | Z | IP | I | 2020-09-06 10:22:46 | 0.6 | y | 333 | 52 | |||
| IIEES SC | AMIS | Z | IP | I | 2020-09-06 10:22:47 | 0.7 | y | 344 | 313 | |||
| IIEES SC | NASN | Z | IP | I | 2020-09-06 10:22:50 | -0.6 | y | 366 | 14 | |||
| IIEES SC | YZKH | Z | IP | I | 2020-09-06 10:22:55 | 0.4 | y | 400 | 39 | |||
| IIEES SC | GTMR | Z | IP | I | 2020-09-06 10:22:56 | 0.1 | y | 422 | 320 | |||
| IIEES SC | KRBR | Z | IP | I | 2020-09-06 10:23:03 | 0 | y | 478 | 84 | |||
| IIEES SC | KHMZ | Z | IP | I | 2020-09-06 10:23:06 | -0.6 | y | 500 | 338 | |||
| IIEES SC | ASAO | Z | IP | I | 2020-09-06 10:23:16 | -0.5 | y | 578 | 342 | |||
| IIEES SC | DAMV | Z | IP | I | 2020-09-06 10:23:28 | -0.4 | y | 678 | 1 | |||
| IIEES SC | ILBA | Z | IP | I | 2020-09-06 10:23:31 | -0.5 | y | 700 | 310 | |||
| IIEES SC | SNGE | Z | IP | I | 2020-09-06 10:23:37 | 0 | y | 745 | 325 | |||
| IIEES SC | SHRO | Z | IP | I | 2020-09-06 10:23:45 | -0.7 | y | 811 | 28 | |||
| IIEES SC | SRSL | Z | IP | I | 2020-09-06 10:24:02 | -0.5 | y | 956 | 321 | |||
| IIEES SC | DAMV | Z | IVmB_BB | 2020-09-06 10:23:32 | y | 1 | 678 | 1 | ||||
