Magnitude |
:3.1 |
| Date & Time (UTC) | 2020-09-11 08:42:35.1 |
| Date & Time (Local) | 1399/6/21 13:12:35.1 |

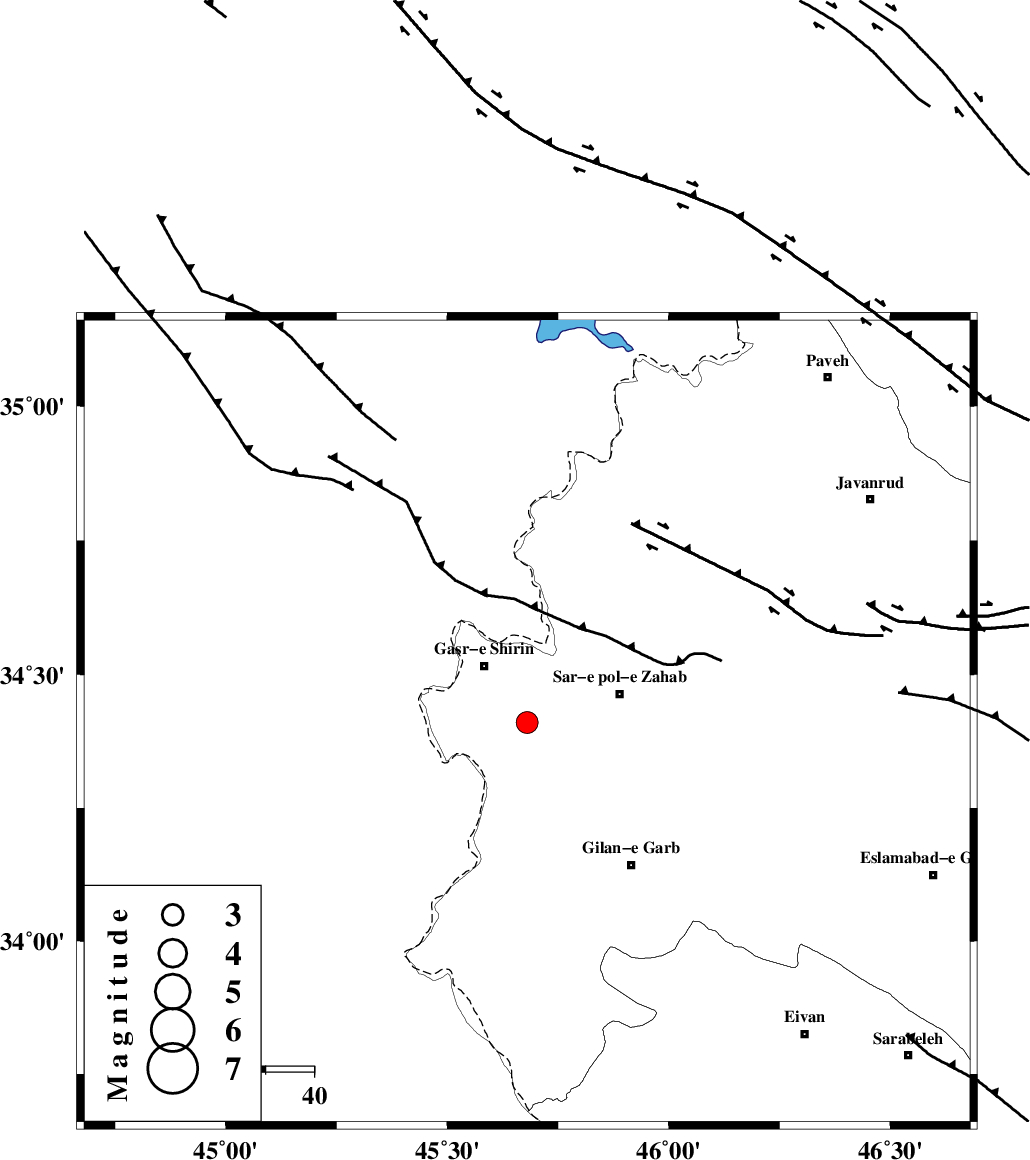

| Location | Lat:34.41 Lon: 45.68 |
| Region | Kermanshah Province, 15 km South of Qasr-E-Shirin |
Nearest Cities |
|
| 9 km of Seyyed sohrab, Kermanshah Province | |
| 12 km of Qareh belagh, Kermanshah Province | |
| 15 km South of Qasr-E-Shirin, Kermanshah Province | |
| 15 km South of Aqabarar, Kermanshah Province | |
| 19 km North East of Khosravi, Kermanshah Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| MFF8 (Length: 48 km) , Distance to epicenter: 19 km | |
| ZFF4 (Length: 128 km) , Distance to epicenter: 56 km | |
| MFF7 (Length: 99 km) , Distance to epicenter: 60 km | |
| Number of Phases | 11 |
| RMS | 1.4 |
| Number of Stations | 8 |
| Error in Latitude | >1 km |
| Error in Longitude | 0 km |
| Error in Depth | 20 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 157122 | IIEES SC | ILBA | Z | 110 | 1 | 2020-09-11 08:43:12 | 2020-09-12 11:15:00 | n |
| 157123 | IIEES SC | SNGE | Z | 170 | 1 | 2020-09-11 08:43:35 | 2020-09-12 11:15:00 | n |
| 157124 | IIEES SC | SRSL | Z | 500 | 1 | 2020-09-11 08:43:35 | 2020-09-12 11:15:00 | n |
| 157125 | IIEES SC | AZR | Z | 330 | 1 | 2020-09-11 08:44:31 | 2020-09-12 11:15:00 | n |
| 157126 | IIEES SC | GTMR | Z | 15 | 1 | 2020-09-11 08:44:36 | 2020-09-12 11:15:00 | n |
| 157127 | IIEES SC | ASAO | Z | 11 | 1 | 2020-09-11 08:44:54 | 2020-09-12 11:15:00 | n |
| 157128 | IIEES SC | MRD | Z | 22 | 1 | 2020-09-11 08:45:16 | 2020-09-12 11:15:00 | n |
| 157129 | IIEES SC | GRMI | Z | 5.7 | 1 | 2020-09-11 08:45:28 | 2020-09-12 11:15:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | ILBA | N | IS | I | 2020-09-11 08:43:09 | 4.9 | n | 4 | 100 | 151 | ||
| IIEES SC | ILBA | Z | IP | I | 2020-09-11 08:42:52 | 0.6 | y | 100 | 151 | |||
| IIEES SC | SNGE | N | IS | I | 2020-09-11 08:43:30 | 6.8 | n | 4 | 166 | 64 | ||
| IIEES SC | SNGE | Z | IP | I | 2020-09-11 08:43:05 | 2.6 | y | 166 | 64 | |||
| IIEES SC | SRSL | Z | IP | I | 2020-09-11 08:43:07 | -0.3 | y | 200 | 354 | |||
| IIEES SC | AZR | Z | IP | I | 2020-09-11 08:43:27 | -0.9 | y | 366 | 4 | |||
| IIEES SC | GTMR | Z | IP | I | 2020-09-11 08:43:30 | 0.2 | y | 389 | 124 | |||
| IIEES SC | ASAO | Z | IP | I | 2020-09-11 08:43:29 | -2.7 | y | 400 | 88 | |||
| IIEES SC | KHMZ | Z | IP | I | 2020-09-11 08:43:48 | 15.6 | n | 4 | 400 | 101 | ||
| IIEES SC | MRD | Z | IP | I | 2020-09-11 08:43:42 | 0.7 | y | 478 | 0 | |||
| IIEES SC | GRMI | Z | IP | I | 2020-09-11 08:43:48 | 0 | y | 522 | 22 | |||
