Magnitude |
:4.1 |
| Date & Time (UTC) | 2020-09-14 09:26:08.5 |
| Date & Time (Local) | 1399/6/24 13:56:08.5 |
| Location | Lat:27.48 Lon: 54.42 |
| Region | Fars Province, 24 km South of Lar |
Nearest Cities |
|
| 24 km South of Lar, Fars Province | |
| 25 km South of Latifi, Fars Province | |
| 32 km South East of Grash, Fars Province | |
| 32 km North of Bastak, Hormozgan Province | |
| 38 km East of Bagh, Fars Province | |
| Depth | 10 km |
| Agency | |

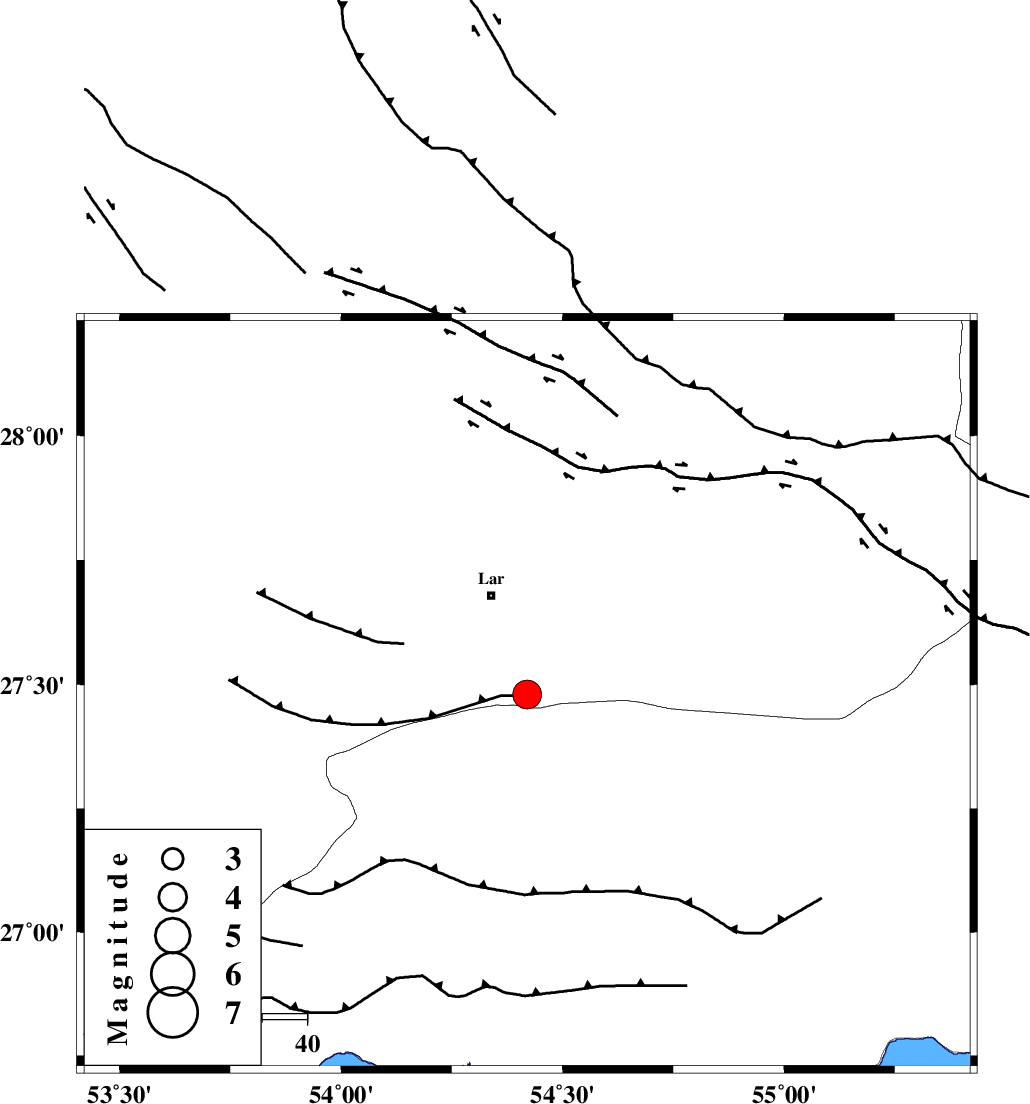

Faults within 150 km: |
|
| LAR_F (Length: 99 km) , Distance to epicenter: 8 km | |
| BERIZ_F (Length: 49 km) , Distance to epicenter: 31 km | |
| MFF1 (Length: 180 km) , Distance to epicenter: 37 km | |
| Number of Phases | 28 |
| RMS | 0.6 |
| Number of Stations | 19 |
| Error in Latitude | >3 km |
| Error in Longitude | 0 km |
| Error in Depth | 11 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 157244 | IIEES SC | LMD1 | Z | 8000 | 1 | 2020-09-14 09:26:49 | 2020-09-14 03:08:00 | n |
| 157245 | IIEES SC | BNDS | Z | 1200 | 1 | 2020-09-14 09:27:08 | 2020-09-14 03:08:00 | n |
| 157246 | IIEES SC | AHRM | Z | 150 | 1 | 2020-09-14 09:28:03 | 2020-09-14 03:08:00 | n |
| 157247 | IIEES SC | KRBR | Z | 380 | 1 | 2020-09-14 09:28:06 | 2020-09-14 03:08:00 | n |
| 157248 | IIEES SC | YZKH | Z | 44 | 1 | 2020-09-14 09:29:05 | 2020-09-14 03:08:00 | n |
| 157249 | IIEES SC | NASN | Z | 28 | 0.93 | 2020-09-14 09:27:51 | 2020-09-14 03:08:00 | n |
| 157250 | IIEES SC | BSRN | Z | 29 | 1 | 2020-09-14 09:29:46 | 2020-09-14 03:08:00 | n |
| 157251 | IIEES SC | BSRN | Z | 10 | 0.56 | 2020-09-14 09:28:07 | 2020-09-14 03:08:00 | n |
| 157252 | IIEES SC | AMIS | Z | 76 | 1 | 2020-09-14 09:29:00 | 2020-09-14 03:08:00 | n |
| 157253 | IIEES SC | AMIS | Z | 14 | 1.01 | 2020-09-14 09:28:11 | 2020-09-14 03:08:00 | n |
| 157254 | IIEES SC | TABS | Z | 30 | 1 | 2020-09-14 09:30:07 | 2020-09-14 03:08:00 | n |
| 157255 | IIEES SC | TABS | Z | 23 | 0.91 | 2020-09-14 09:28:17 | 2020-09-14 03:08:00 | n |
| 157256 | IIEES SC | GTMR | Z | 61 | 1 | 2020-09-14 09:29:15 | 2020-09-14 03:08:00 | n |
| 157257 | IIEES SC | GTMR | Z | 14 | 0.93 | 2020-09-14 09:28:20 | 2020-09-14 03:08:00 | n |
| 157258 | IIEES SC | SRVN | Z | 14 | 1 | 2020-09-14 09:27:56 | 2020-09-14 03:08:00 | n |
| 157259 | IIEES SC | SRVN | Z | 42 | 0.7 | 2020-09-14 09:27:54 | 2020-09-14 03:08:00 | n |
| 157260 | IIEES SC | KHMZ | Z | 27 | 1 | 2020-09-14 09:29:21 | 2020-09-14 03:08:00 | n |
| 157261 | IIEES SC | KHMZ | Z | 10 | 0.58 | 2020-09-14 09:28:04 | 2020-09-14 03:08:00 | n |
| 157262 | IIEES SC | SHRT | Z | 8.1 | 1 | 2020-09-14 09:30:35 | 2020-09-14 03:08:00 | n |
| 157263 | IIEES SC | SHRT | Z | 10 | 1.04 | 2020-09-14 09:28:11 | 2020-09-14 03:08:00 | n |
| 157264 | IIEES SC | ASAO | Z | 31 | 1 | 2020-09-14 09:29:54 | 2020-09-14 03:08:00 | n |
| 157265 | IIEES SC | ASAO | Z | 18 | 0.94 | 2020-09-14 09:28:15 | 2020-09-14 03:08:00 | n |
| 157266 | IIEES SC | SHRO | Z | 2.6 | 0.99 | 2020-09-14 09:28:26 | 2020-09-14 03:08:00 | n |
| 157267 | IIEES SC | GLO | Z | 30 | 0.88 | 2020-09-14 09:28:28 | 2020-09-14 03:08:00 | n |
| 157268 | IIEES SC | ILBA | Z | 13 | 0.84 | 2020-09-14 09:28:53 | 2020-09-14 03:08:00 | n |
| 157269 | IIEES SC | SNGE | Z | 9.1 | 0.63 | 2020-09-14 09:28:38 | 2020-09-14 03:08:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | LMD1 | N | IS | I | 2020-09-14 09:26:46 | 0.8 | n | 4 | 122 | 263 | ||
| IIEES SC | LMD1 | Z | IP | I | 2020-09-14 09:26:29 | 0 | y | 122 | 263 | |||
| IIEES SC | BNDS | N | IS | I | 2020-09-14 09:26:59 | 0.5 | y | 177 | 93 | |||
| IIEES SC | BNDS | Z | IP | I | 2020-09-14 09:26:36 | -0.5 | y | 177 | 93 | |||
| IIEES SC | UOSS | Z | IP | I | 2020-09-14 09:26:55 | -2.2 | n | 4 | 333 | 148 | ||
| IIEES SC | AHRM | Z | IP | I | 2020-09-14 09:26:59 | 0.8 | y | 344 | 297 | |||
| IIEES SC | KRBR | Z | IP | I | 2020-09-14 09:27:02 | 1.1 | y | 355 | 40 | |||
| IIEES SC | YZKH | Z | IP | I | 2020-09-14 09:27:23 | -0.8 | y | 544 | 2 | |||
| IIEES SC | NASN | Z | IP | I | 2020-09-14 09:27:31 | -1.1 | y | 611 | 345 | |||
| IIEES SC | ZHSF | Z | IP | I | 2020-09-14 09:27:24 | -15.1 | n | 4 | 667 | 69 | ||
| IIEES SC | BSRN | Z | IP | I | 2020-09-14 09:27:39 | -0.8 | y | 678 | 43 | |||
| IIEES SC | AMIS | Z | IP | I | 2020-09-14 09:27:41 | 0.7 | y | 678 | 313 | |||
| IIEES SC | TABS | Z | IP | I | 2020-09-14 09:27:48 | 0.9 | y | 733 | 21 | |||
| IIEES SC | GTMR | Z | IP | I | 2020-09-14 09:27:50 | -0.1 | y | 756 | 317 | |||
| IIEES SC | SRVN | Z | IP | I | 2020-09-14 09:27:53 | -1.5 | y | 789 | 91 | |||
| IIEES SC | KHMZ | Z | IP | I | 2020-09-14 09:27:56 | -1.1 | y | 811 | 328 | |||
| IIEES SC | SHRT | Z | IP | I | 2020-09-14 09:28:06 | 0 | y | 889 | 40 | |||
| IIEES SC | ASAO | Z | IP | I | 2020-09-14 09:28:07 | 0.5 | y | 889 | 332 | |||
| IIEES SC | SHRO | Z | IP | I | 2020-09-14 09:28:15 | -0.1 | y | 956 | 9 | |||
| IIEES SC | CHTH | Z | IP | I | 2020-09-14 09:28:05 | -13.8 | n | 4 | 989 | 342 | ||
| IIEES SC | RAYN | Z | IP | I | 2020-09-14 09:28:16 | -4.4 | n | 4 | 1000 | 244 | ||
| IIEES SC | GLO | Z | IP | I | 2020-09-14 09:28:20 | -0.6 | y | 1000 | 357 | |||
| IIEES SC | ILBA | Z | IP | I | 2020-09-14 09:28:24 | -1.5 | y | 1045 | 311 | |||
| IIEES SC | SNGE | Z | IP | I | 2020-09-14 09:28:32 | 1.9 | y | 1078 | 321 | |||
| IIEES SC | AMIS | Z | IVmB_BB | 2020-09-14 09:28:40 | y | 1 | 678 | 313 | ||||
| IIEES SC | SRVN | Z | IVmB_BB | 2020-09-14 09:27:54 | y | 1 | 789 | 91 | ||||
| IIEES SC | ASAO | Z | IVmB_BB | 2020-09-14 09:28:41 | y | 1 | 889 | 332 | ||||
| IIEES SC | GLO | Z | IVmB_BB | 2020-09-14 09:28:27 | y | 1 | 1000 | 357 | ||||
