Magnitude |
:3.4 |
| Date & Time (UTC) | 2020-09-19 13:30:03.5 |
| Date & Time (Local) | 1399/6/29 18:00:03.5 |

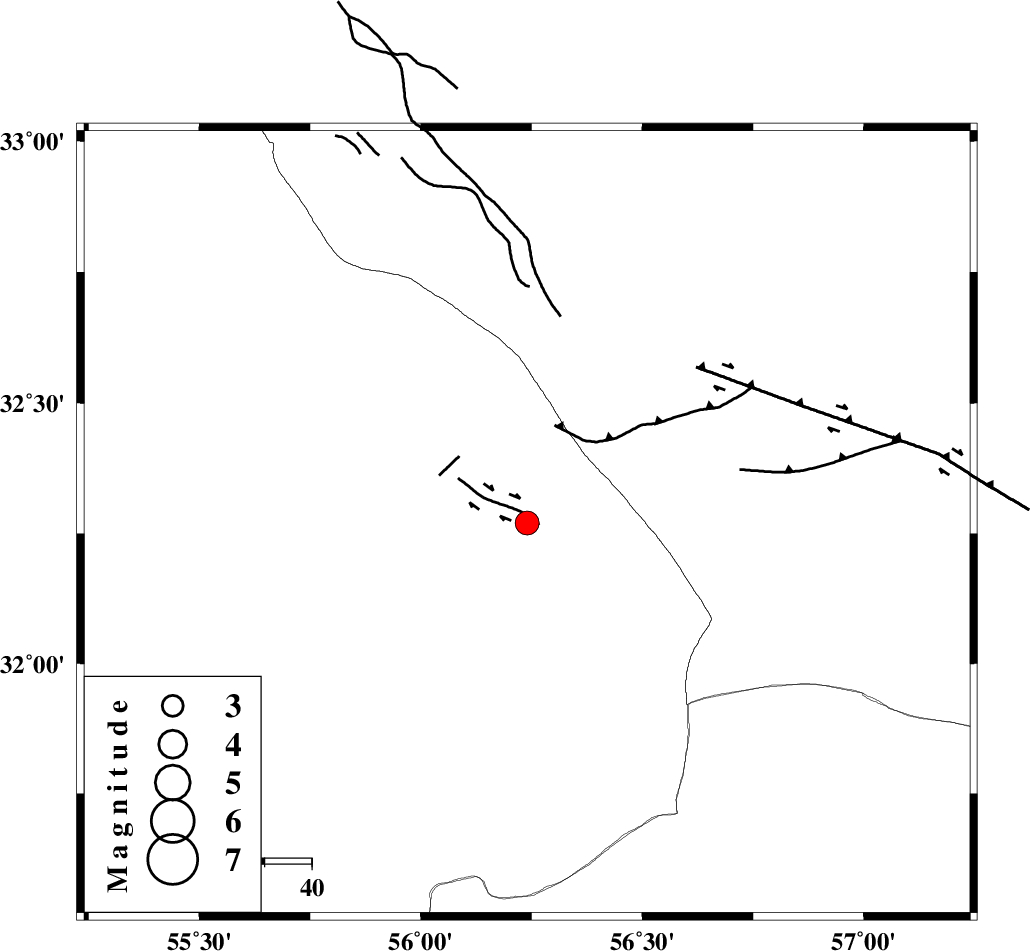

| Location | Lat:32.27 Lon: 56.24 |
| Region | Yazd Province, 109 km North-East of Bafq |
Nearest Cities |
|
| 49 km North East of Behabad, Yazd Province | |
| 61 km North East of Benestan, Yazd Province | |
| 67 km North of Asfih, Yazd Province | |
| 73 km North East of Kushk, Yazd Province | |
| 91 km North East of Basab, Yazd Province | |
| Depth | 11 km |
| Agency | |
Faults within 150 km: |
|
| JAFARABAD_F (Length: 60 km) , Distance to epicenter: 28 km | |
| NAINI_F (Length: 342 km) , Distance to epicenter: 37 km | |
| SARBALA_F (Length: 92 km) , Distance to epicenter: 40 km | |
| Number of Phases | 12 |
| RMS | 0.6 |
| Number of Stations | 10 |
| Error in Latitude | >3 km |
| Error in Longitude | 0 km |
| Error in Depth | 15 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 157410 | IIEES SC | YZKH | Z | 490 | 1 | 2020-09-19 13:30:50 | 2020-09-20 10:13:00 | n |
| 157411 | IIEES SC | TABS | Z | 160 | 1 | 2020-09-19 13:30:58 | 2020-09-20 10:13:00 | n |
| 157412 | IIEES SC | KRBR | Z | 250 | 1 | 2020-09-19 13:31:19 | 2020-09-20 10:13:00 | n |
| 157413 | IIEES SC | BSRN | Z | 65 | 1 | 2020-09-19 13:31:32 | 2020-09-20 10:13:00 | n |
| 157414 | IIEES SC | NASN | Z | 58 | 1 | 2020-09-19 13:31:37 | 2020-09-20 10:13:00 | n |
| 157415 | IIEES SC | SHRT | Z | 21 | 1 | 2020-09-19 13:32:09 | 2020-09-20 10:13:00 | n |
| 157416 | IIEES SC | ANJ | Z | 8.7 | 1 | 2020-09-19 13:31:39 | 2020-09-20 10:13:00 | n |
| 157417 | IIEES SC | SHRO | Z | 2.4 | 1 | 2020-09-19 13:32:20 | 2020-09-20 10:13:00 | n |
| 157418 | IIEES SC | KLNJ | Z | 14 | 1 | 2020-09-19 13:32:28 | 2020-09-20 10:13:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | YZKH | Z | IP | I | 2020-09-19 13:30:29 | -0.1 | y | 155 | 275 | |||
| IIEES SC | TABS | Z | IP | I | 2020-09-19 13:30:32 | 0.6 | y | 177 | 28 | |||
| IIEES SC | MEH | Z | IP | I | 2020-09-19 13:30:32 | -0.9 | y | 177 | 238 | |||
| IIEES SC | KRBR | Z | IP | I | 2020-09-19 13:30:44 | 0.4 | y | 255 | 169 | |||
| IIEES SC | BSRN | Z | IP | I | 2020-09-19 13:30:44 | -1.2 | y | 278 | 97 | |||
| IIEES SC | NASN | Z | IP | I | 2020-09-19 13:30:52 | -0.1 | y | 322 | 280 | |||
| IIEES SC | SHRT | Z | IP | I | 2020-09-19 13:31:02 | 0.2 | y | 411 | 68 | |||
| IIEES SC | ANJ | Z | IP | I | 2020-09-19 13:31:02 | -0.6 | y | 411 | 329 | |||
| IIEES SC | SHRO | Z | IP | I | 2020-09-19 13:31:03 | 0.3 | y | 411 | 357 | |||
| IIEES SC | KLNJ | Z | IP | I | 2020-09-19 13:31:10 | 0.9 | y | 467 | 252 | |||
| IIEES SC | SBZV | Z | IP | I | 2020-09-19 13:31:10 | 0.3 | n | 4 | 478 | 15 | ||
| IIEES SC | TBJM | Z | IP | I | 2020-09-19 13:31:28 | 14.5 | n | 4 | 500 | 49 | ||
