Magnitude |
:3.8 |
| Date & Time (UTC) | 2020-09-28 18:45:02.6 |
| Date & Time (Local) | 1399/7/7 22:15:02.6 |
| Location | Lat:34.5 Lon: 45.5 |
| Region | Iraq, 8 km of Qasr-E-Shirin |
Nearest Cities |
|
| 8 km of Qasr-E-Shirin, Kermanshah Province | |
| 11 km North of Seyyed sohrab, Kermanshah Province | |
| 11 km North of Khosravi, Kermanshah Province | |
| 16 km West of Aqabarar, Kermanshah Province | |
| 26 km North West of Qareh belagh, Kermanshah Province | |
| Depth | 17 km |
| Agency | |

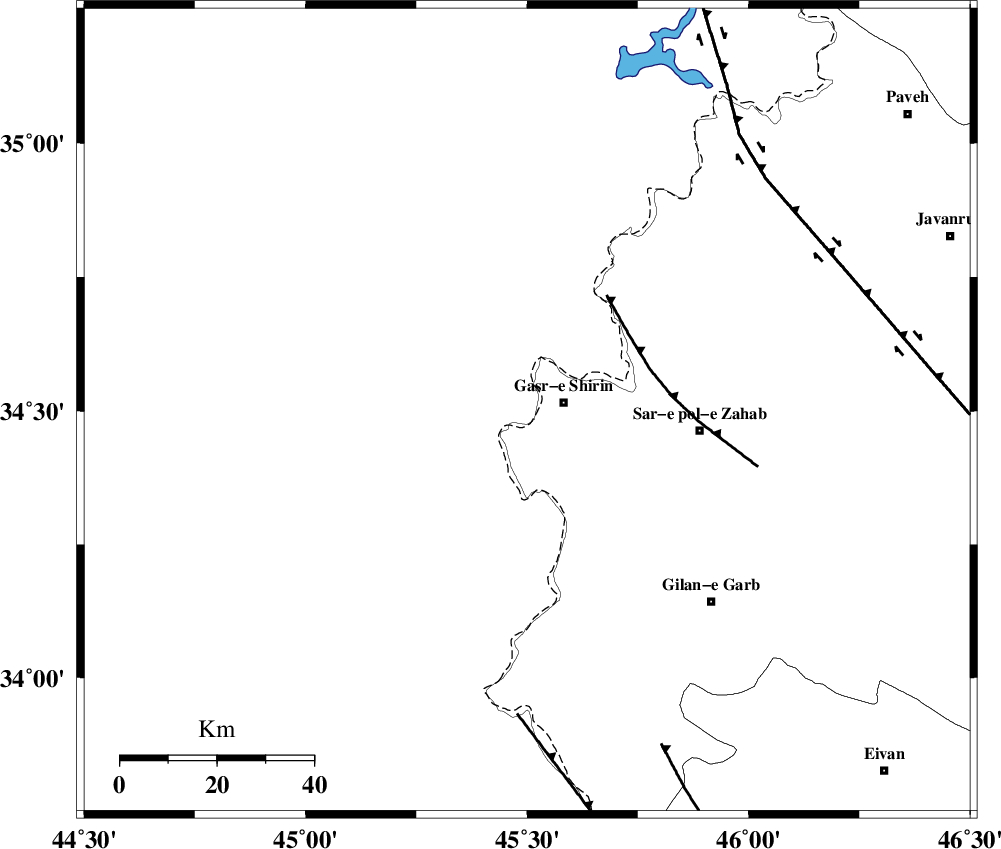

Faults within 150 km: |
|
| MFF8 (Length: 48 km) , Distance to epicenter: 26 km | |
| ZFF4 (Length: 128 km) , Distance to epicenter: 63 km | |
| HZF4 (Length: 492 km) , Distance to epicenter: 69 km | |
| Number of Phases | 9 |
| RMS | 0.4 |
| Number of Stations | 9 |
| Error in Latitude | >3 km |
| Error in Longitude | 0 km |
| Error in Depth | 6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 157974 | IIEES SC | ILBA | Z | 300 | 1 | 2020-09-28 18:45:41 | 2020-09-29 10:18:00 | n |
| 157975 | IIEES SC | SNGE | Z | 1000 | 1 | 2020-09-28 18:46:26 | 2020-09-29 10:18:00 | n |
| 157976 | IIEES SC | SRSL | Z | 1900 | 1 | 2020-09-28 18:46:57 | 2020-09-29 10:18:00 | n |
| 157977 | IIEES SC | MAHB | Z | 1100 | 1 | 2020-09-28 18:47:12 | 2020-09-29 10:18:00 | n |
| 157978 | IIEES SC | ASAO | Z | 65 | 1 | 2020-09-28 18:48:12 | 2020-09-29 10:18:00 | n |
| 157979 | IIEES SC | AMIS | Z | 140 | 1 | 2020-09-28 18:48:02 | 2020-09-29 10:18:00 | n |
| 157980 | IIEES SC | GRMI | Z | 17 | 1 | 2020-09-28 18:48:37 | 2020-09-29 10:18:00 | n |
| 157981 | IIEES SC | GHVR | Z | 57 | 1 | 2020-09-28 18:48:44 | 2020-09-29 10:18:00 | n |
| 157982 | IIEES SC | CHTH | Z | 11 | 1 | 2020-09-28 18:48:08 | 2020-09-29 10:18:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | ILBA | Z | IP | I | 2020-09-28 18:45:22 | 0.1 | y | 111 | 146 | |||
| IIEES SC | SNGE | Z | IP | I | 2020-09-28 18:45:31 | -0.2 | y | 177 | 69 | |||
| IIEES SC | SRSL | Z | IP | I | 2020-09-28 18:45:33 | 0 | y | 189 | 358 | |||
| IIEES SC | MAHB | Z | IP | I | 2020-09-28 18:45:41 | 0.1 | y | 255 | 4 | |||
| IIEES SC | ASAO | Z | IP | I | 2020-09-28 18:46:02 | 0.8 | y | 411 | 89 | |||
| IIEES SC | AMIS | Z | IP | I | 2020-09-28 18:46:07 | -0.9 | y | 478 | 132 | |||
| IIEES SC | GRMI | Z | IP | I | 2020-09-28 18:46:15 | -0.3 | y | 522 | 24 | |||
| IIEES SC | GHVR | Z | IP | I | 2020-09-28 18:46:16 | 0.7 | y | 522 | 90 | |||
| IIEES SC | CHTH | Z | IP | I | 2020-09-28 18:46:16 | -0.4 | y | 533 | 73 | |||
