Magnitude |
:3.8 |
| Date & Time (UTC) | 2020-09-28 18:46:00.2 |
| Date & Time (Local) | 1399/7/7 22:16:00.2 |

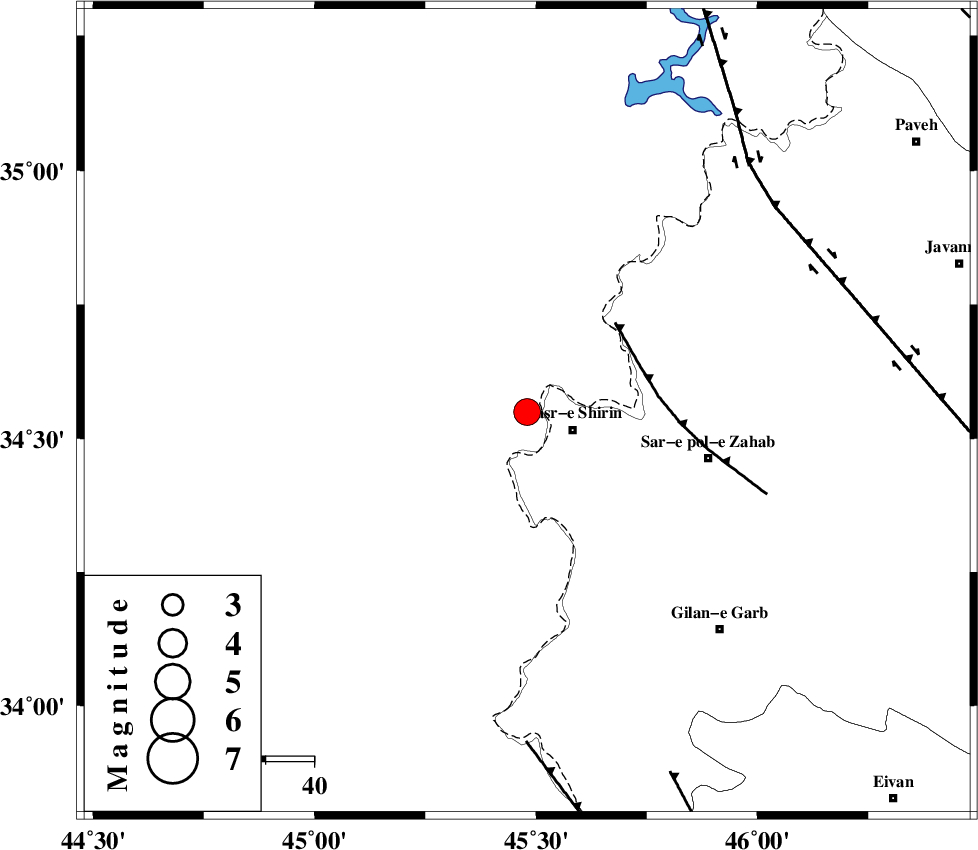

| Location | Lat:34.55 Lon: 45.48 |
| Region | Iraq, 10 km -West of Qasr-E-Shirin |
Nearest Cities |
|
| 10 km North West of Qasr-E-Shirin, Kermanshah Province | |
| 16 km North West of Seyyed sohrab, Kermanshah Province | |
| 17 km North of Khosravi, Kermanshah Province | |
| 17 km North West of Aqabarar, Kermanshah Province | |
| 26 km West of Mirmiru, Kermanshah Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| MFF8 (Length: 48 km) , Distance to epicenter: 25 km | |
| HZF4 (Length: 492 km) , Distance to epicenter: 67 km | |
| ZFF4 (Length: 128 km) , Distance to epicenter: 69 km | |
| Number of Phases | 13 |
| RMS | 0.6 |
| Number of Stations | 13 |
| Error in Latitude | >4 km |
| Error in Longitude | 0 km |
| Error in Depth | 10 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 157983 | IIEES SC | ILBA | Z | 630 | 1 | 2020-09-28 18:46:39 | 2020-09-29 11:11:00 | n |
| 157984 | IIEES SC | SNGE | Z | 820 | 1 | 2020-09-28 18:46:55 | 2020-09-29 11:11:00 | n |
| 157985 | IIEES SC | SRSL | Z | 1900 | 1 | 2020-09-28 18:46:57 | 2020-09-29 11:11:00 | n |
| 157986 | IIEES SC | MAHB | Z | 1100 | 1 | 2020-09-28 18:47:12 | 2020-09-29 11:11:00 | n |
| 157987 | IIEES SC | ZNJK | Z | 22 | 1 | 2020-09-28 18:48:07 | 2020-09-29 11:11:00 | n |
| 157988 | IIEES SC | QABG | Z | 10 | 1 | 2020-09-28 18:48:01 | 2020-09-29 11:11:00 | n |
| 157989 | IIEES SC | GTMR | Z | 110 | 1 | 2020-09-28 18:47:44 | 2020-09-29 11:11:00 | n |
| 157990 | IIEES SC | ASAO | Z | 65 | 1 | 2020-09-28 18:48:12 | 2020-09-29 11:11:00 | n |
| 157991 | IIEES SC | KHMZ | Z | 58 | 1 | 2020-09-28 18:47:47 | 2020-09-29 11:11:00 | n |
| 157992 | IIEES SC | MRD | Z | 85 | 1 | 2020-09-28 18:48:28 | 2020-09-29 11:11:00 | n |
| 157993 | IIEES SC | GIDE | Z | 66 | 1 | 2020-09-28 18:47:43 | 2020-09-29 11:11:00 | n |
| 157994 | IIEES SC | GRMI | Z | 17 | 1 | 2020-09-28 18:48:37 | 2020-09-29 11:11:00 | n |
| 157995 | IIEES SC | GHVR | Z | 59 | 1 | 2020-09-28 18:48:46 | 2020-09-29 11:11:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | ILBA | Z | IP | I | 2020-09-28 18:46:20 | -0.5 | y | 122 | 147 | |||
| IIEES SC | SNGE | Z | IP | I | 2020-09-28 18:46:29 | -0.2 | y | 177 | 71 | |||
| IIEES SC | SRSL | Z | IP | I | 2020-09-28 18:46:31 | 0.7 | y | 189 | 359 | |||
| IIEES SC | MAHB | Z | IP | I | 2020-09-28 18:46:39 | 0.2 | y | 244 | 5 | |||
| IIEES SC | ZNJK | Z | IP | I | 2020-09-28 18:46:54 | -0.7 | y | 378 | 51 | |||
| IIEES SC | QABG | Z | IP | I | 2020-09-28 18:46:58 | 0.8 | y | 400 | 71 | |||
| IIEES SC | GTMR | Z | IP | I | 2020-09-28 18:47:00 | 0.9 | y | 411 | 124 | |||
| IIEES SC | ASAO | Z | IP | I | 2020-09-28 18:47:00 | 0.3 | y | 422 | 90 | |||
| IIEES SC | KHMZ | Z | IP | I | 2020-09-28 18:47:01 | 0.1 | y | 422 | 102 | |||
| IIEES SC | MRD | Z | IP | I | 2020-09-28 18:47:05 | -0.8 | y | 467 | 2 | |||
| IIEES SC | GIDE | Z | IP | I | 2020-09-28 18:47:08 | 0.1 | y | 478 | 57 | |||
| IIEES SC | GRMI | Z | IP | I | 2020-09-28 18:47:12 | -0.8 | y | 522 | 25 | |||
| IIEES SC | GHVR | Z | IP | I | 2020-09-28 18:47:13 | -0.4 | y | 533 | 91 | |||
