Magnitude |
:3 |
| Date & Time (UTC) | 2020-09-29 17:37:36.6 |
| Date & Time (Local) | 1399/7/8 21:07:36.6 |

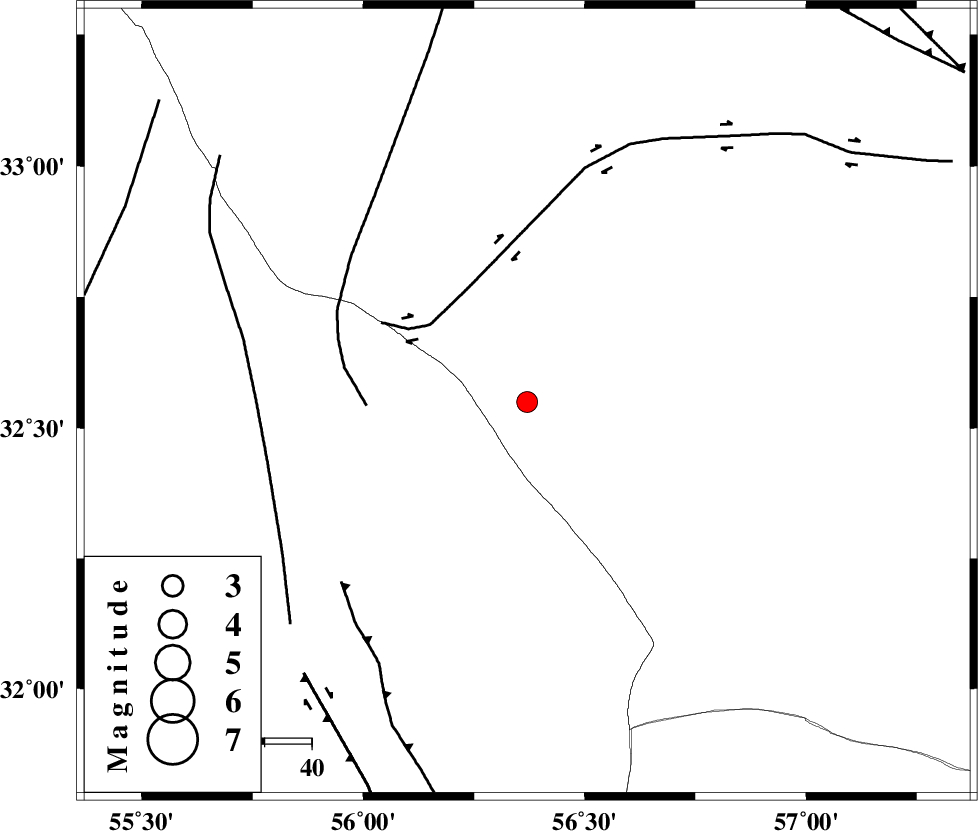

| Location | Lat:32.55 Lon: 56.37 |
| Region | Yazd Province, 128 km South-West of Tabas |
Nearest Cities |
|
| 82 km North East of Behabad, Yazd Province | |
| 92 km South East of Robat-e posht-e badam, Yazd Province | |
| 95 km North East of Benestan, Yazd Province | |
| 99 km North East of Asfih, Yazd Province | |
| 106 km North East of Kushk, Yazd Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| CHESHMEH_ROSTAM_ (Length: 142 km) , Distance to epicenter: 26 km | |
| NAINI_F (Length: 342 km) , Distance to epicenter: 34 km | |
| JAFARABAD_F (Length: 60 km) , Distance to epicenter: 55 km | |
| Number of Phases | 12 |
| RMS | 0.4 |
| Number of Stations | 9 |
| Error in Latitude | >2 km |
| Error in Longitude | 0 km |
| Error in Depth | 13 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 158084 | IIEES SC | TABS | Z | 61 | 1 | 2020-09-29 17:38:11 | 2020-09-30 01:18:00 | n |
| 158085 | IIEES SC | YZKH | Z | 160 | 1 | 2020-09-29 17:38:27 | 2020-09-30 01:18:00 | n |
| 158086 | IIEES SC | BSRN | Z | 32 | 1 | 2020-09-29 17:38:59 | 2020-09-30 01:18:00 | n |
| 158087 | IIEES SC | SHRO | Z | 2.3 | 1 | 2020-09-29 17:40:52 | 2020-09-30 01:18:00 | n |
| 158088 | IIEES SC | SHRT | Z | 7.1 | 1 | 2020-09-29 17:39:34 | 2020-09-30 01:18:00 | n |
| 158089 | IIEES SC | GLO | Z | 32 | 1 | 2020-09-29 17:40:18 | 2020-09-30 01:18:00 | n |
| 158090 | IIEES SC | MRVT | Z | 3 | 1 | 2020-09-29 17:40:22 | 2020-09-30 01:18:00 | n |
| 158091 | IIEES SC | MRVT | Z | 1.9 | 1.57 | 2020-09-29 17:38:57 | 2020-09-30 01:18:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | TABS | Z | IP | I | 2020-09-29 17:38:00 | 0.5 | y | 144 | 30 | |||
| IIEES SC | YZKH | Z | IP | I | 2020-09-29 17:38:04 | -0.3 | y | 166 | 264 | |||
| IIEES SC | MEH | Z | IP | I | 2020-09-29 17:38:11 | 0.1 | y | 211 | 232 | |||
| IIEES SC | BSRN | Z | IP | I | 2020-09-29 17:38:18 | 0 | y | 266 | 104 | |||
| IIEES SC | KRBR | Z | IP | I | 2020-09-29 17:38:24 | 4.1 | n | 4 | 289 | 173 | ||
| IIEES SC | SHRO | Z | IP | I | 2020-09-29 17:38:32 | -0.7 | y | 389 | 355 | |||
| IIEES SC | SHRT | Z | IP | I | 2020-09-29 17:38:32 | 0 | y | 389 | 72 | |||
| IIEES SC | TBJM | Z | IP | I | 2020-09-29 17:38:55 | 11.9 | n | 4 | 478 | 51 | ||
| IIEES SC | ABGH | Z | IP | I | 2020-09-29 17:38:53 | 8.6 | n | 4 | 489 | 343 | ||
| IIEES SC | GLO | Z | IP | I | 2020-09-29 17:38:47 | 1 | y | 500 | 332 | |||
| IIEES SC | AKL | Z | IP | I | 2020-09-29 17:38:46 | -0.8 | y | 500 | 26 | |||
| IIEES SC | MRVT | Z | IP | I | 2020-09-29 17:38:54 | -0.3 | y | 567 | 357 | |||
