Magnitude |
:3.7 |
| Date & Time (UTC) | 2020-10-09 18:25:28.7 |
| Date & Time (Local) | 1399/7/18 21:55:28.7 |

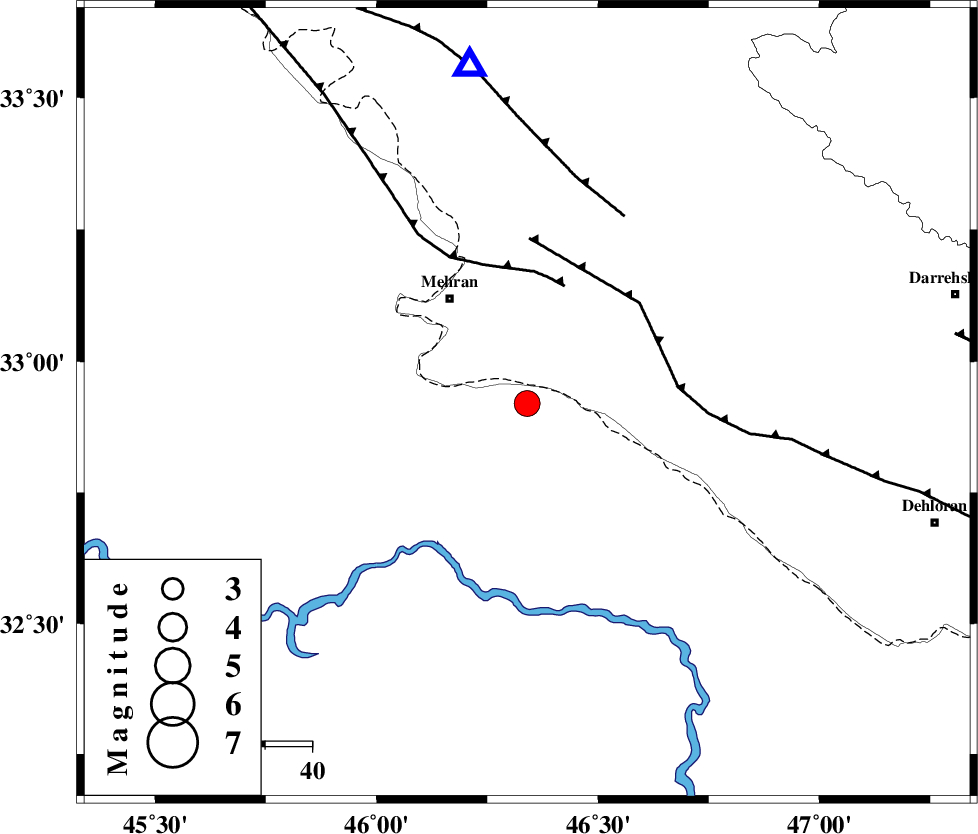

| Location | Lat:32.92 Lon: 46.34 |
| Region | , 28 km South-East of Mehran |
Nearest Cities |
|
| 28 km South East of Mehran, Ilam Province | |
| 42 km South West of Gonbad-e pirmohammad, Ilam Province | |
| 47 km South of Galeh-yedarre-hemalakshahi, Ilam Province | |
| 59 km South West of Mehr, Ilam Province | |
| 60 km North West of Bishehzar, Ilam Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| ZFF4 (Length: 128 km) , Distance to epicenter: 26 km | |
| MFF6 (Length: 144 km) , Distance to epicenter: 31 km | |
| MFF7 (Length: 99 km) , Distance to epicenter: 45 km | |
| Number of Phases | 10 |
| RMS | 0.4 |
| Number of Stations | 10 |
| Error in Latitude | >4 km |
| Error in Longitude | 0 km |
| Error in Depth | 8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 158290 | IIEES SC | ILBA | Z | 920 | 1 | 2020-10-09 18:25:56 | 2020-10-10 08:18:00 | n |
| 158291 | IIEES SC | SNGE | Z | 210 | 1 | 2020-10-09 18:26:52 | 2020-10-10 08:18:00 | n |
| 158292 | IIEES SC | GTMR | Z | 140 | 1 | 2020-10-09 18:26:41 | 2020-10-10 08:18:00 | n |
| 158293 | IIEES SC | AMIS | Z | 110 | 1 | 2020-10-09 18:27:11 | 2020-10-10 08:18:00 | n |
| 158294 | IIEES SC | KHMZ | Z | 64 | 1 | 2020-10-09 18:27:13 | 2020-10-10 08:18:00 | n |
| 158295 | IIEES SC | SRSL | Z | 190 | 1 | 2020-10-09 18:27:26 | 2020-10-10 08:18:00 | n |
| 158296 | IIEES SC | ASAO | Z | 70 | 1 | 2020-10-09 18:27:08 | 2020-10-10 08:18:00 | n |
| 158297 | IIEES SC | MAHB | Z | 100 | 1 | 2020-10-09 18:27:42 | 2020-10-10 08:18:00 | n |
| 158298 | IIEES SC | GHVR | Z | 390 | 1 | 2020-10-09 18:28:04 | 2020-10-10 08:18:00 | n |
| 158299 | IIEES SC | AZR | Z | 270 | 1 | 2020-10-09 18:28:10 | 2020-10-10 08:18:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | ILBA | Z | IP | I | 2020-10-09 18:25:41 | -0.8 | y | 77 | 351 | |||
| IIEES SC | SNGE | Z | IP | I | 2020-10-09 18:26:08 | -0.3 | y | 255 | 21 | |||
| IIEES SC | GTMR | Z | IP | I | 2020-10-09 18:26:09 | -0.3 | y | 266 | 101 | |||
| IIEES SC | AMIS | Z | IP | I | 2020-10-09 18:26:15 | -0.1 | y | 311 | 117 | |||
| IIEES SC | KHMZ | Z | IP | I | 2020-10-09 18:26:20 | -0.3 | y | 344 | 75 | |||
| IIEES SC | SRSL | Z | IP | I | 2020-10-09 18:26:24 | 0.6 | y | 378 | 347 | |||
| IIEES SC | ASAO | Z | IP | I | 2020-10-09 18:26:25 | 0.3 | y | 389 | 62 | |||
| IIEES SC | MAHB | Z | IP | I | 2020-10-09 18:26:30 | 0.5 | y | 433 | 352 | |||
| IIEES SC | GHVR | Z | IP | I | 2020-10-09 18:26:37 | 0.7 | y | 489 | 69 | |||
| IIEES SC | AZR | Z | IP | I | 2020-10-09 18:26:42 | 0.1 | y | 533 | 356 | |||
