Magnitude |
:3.7 |
| Date & Time (UTC) | 2020-10-07 21:13:18.4 |
| Date & Time (Local) | 1399/7/17 00:43:18.4 |

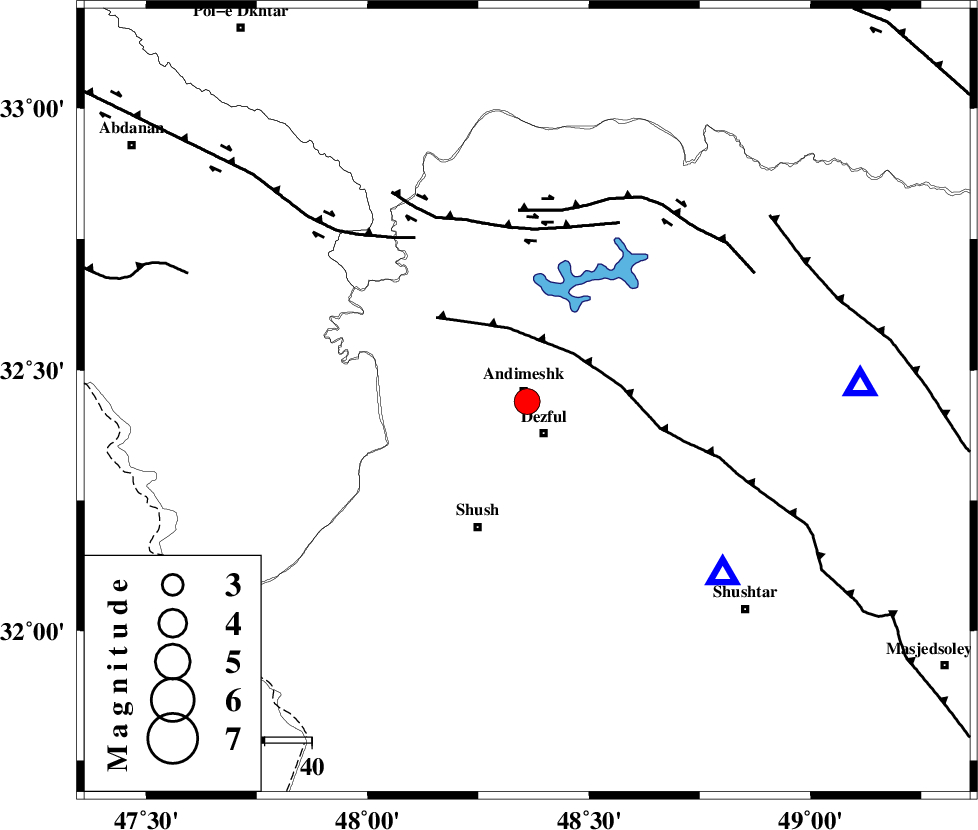

| Location | Lat:32.44 Lon: 48.36 |
| Region | Khoozestan Province, 2 km of Andimeshk |
Nearest Cities |
|
| 2 km of Andimeshk, Khoozestan Province | |
| 8 km North of Dezful, Khoozestan Province | |
| 17 km North of Shamsabad, Khoozestan Province | |
| 29 km South East of Hoseinieh, Khoozestan Province | |
| 29 km North East of Shush, Khoozestan Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 14 km | |
| BALARUD_F_Z3 (Length: 53 km) , Distance to epicenter: 37 km | |
| BALARUD_F_Z2 (Length: 58 km) , Distance to epicenter: 41 km | |
| Number of Phases | 17 |
| RMS | 0.3 |
| Number of Stations | 17 |
| Error in Latitude | >1 km |
| Error in Longitude | 0 km |
| Error in Depth | 6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 158300 | IIEES SC | GTMR | Z | 1900 | 1 | 2020-10-07 21:13:46 | 2020-10-10 09:06:00 | n |
| 158301 | IIEES SC | AMIS | Z | 1600 | 1 | 2020-10-07 21:13:59 | 2020-10-10 09:06:00 | n |
| 158302 | IIEES SC | KHMZ | Z | 290 | 1 | 2020-10-07 21:14:21 | 2020-10-10 09:06:00 | n |
| 158303 | IIEES SC | ILBA | Z | 120 | 1 | 2020-10-07 21:14:40 | 2020-10-10 09:06:00 | n |
| 158304 | IIEES SC | ASAO | Z | 170 | 1 | 2020-10-07 21:14:47 | 2020-10-10 09:06:00 | n |
| 158305 | IIEES SC | SNGE | Z | 110 | 1 | 2020-10-07 21:15:00 | 2020-10-10 09:06:00 | n |
| 158306 | IIEES SC | KLNJ | Z | 110 | 1 | 2020-10-07 21:15:12 | 2020-10-10 09:06:00 | n |
| 158307 | IIEES SC | GHVR | Z | 440 | 1 | 2020-10-07 21:15:18 | 2020-10-10 09:06:00 | n |
| 158308 | IIEES SC | THKV | Z | 27 | 1 | 2020-10-07 21:15:50 | 2020-10-10 09:06:00 | n |
| 158309 | IIEES SC | CHTH | Z | 19 | 1 | 2020-10-07 21:15:27 | 2020-10-10 09:06:00 | n |
| 158310 | IIEES SC | ZNJK | Z | 4.7 | 1 | 2020-10-07 21:15:14 | 2020-10-10 09:06:00 | n |
| 158311 | IIEES SC | SRSL | Z | 32 | 1 | 2020-10-07 21:15:59 | 2020-10-10 09:06:00 | n |
| 158312 | IIEES SC | YZKH | Z | 14 | 1 | 2020-10-07 21:16:17 | 2020-10-10 09:06:00 | n |
| 158313 | IIEES SC | AZR | Z | 58 | 1 | 2020-10-07 21:16:37 | 2020-10-10 09:06:00 | n |
| 158314 | IIEES SC | GLO | Z | 47 | 1 | 2020-10-07 21:16:57 | 2020-10-10 09:06:00 | n |
| 158315 | IIEES SC | SHRO | Z | 2.4 | 1 | 2020-10-07 21:16:28 | 2020-10-10 09:06:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GTMR | Z | IP | I | 2020-10-07 21:13:29 | -1.1 | y | 66 | 87 | |||
| IIEES SC | AMIS | Z | IP | I | 2020-10-07 21:13:39 | 0.1 | y | 122 | 135 | |||
| IIEES SC | KHMZ | Z | IP | I | 2020-10-07 21:13:52 | 0.1 | y | 211 | 46 | |||
| IIEES SC | ILBA | Z | IP | I | 2020-10-07 21:13:56 | -0.1 | y | 244 | 303 | |||
| IIEES SC | ASAO | Z | IP | I | 2020-10-07 21:14:02 | 0.7 | y | 278 | 33 | |||
| IIEES SC | SNGE | Z | IP | I | 2020-10-07 21:14:05 | -0.1 | y | 311 | 342 | |||
| IIEES SC | KLNJ | Z | IP | I | 2020-10-07 21:14:09 | -0.6 | y | 344 | 117 | |||
| IIEES SC | GHVR | Z | IP | I | 2020-10-07 21:14:10 | 0.8 | y | 355 | 50 | |||
| IIEES SC | THKV | Z | IP | I | 2020-10-07 21:14:22 | -0.3 | y | 444 | 31 | |||
| IIEES SC | CHTH | Z | IP | I | 2020-10-07 21:14:23 | -0.5 | y | 467 | 34 | |||
| IIEES SC | ZNJK | Z | IP | I | 2020-10-07 21:14:25 | 0.4 | y | 467 | 4 | |||
| IIEES SC | DAMV | Z | IP | I | 2020-10-07 21:14:26 | -0.7 | y | 489 | 43 | |||
| IIEES SC | SRSL | Z | IP | I | 2020-10-07 21:14:29 | 0.6 | y | 500 | 327 | |||
| IIEES SC | YZKH | Z | IP | I | 2020-10-07 21:14:39 | 0.1 | y | 589 | 91 | |||
| IIEES SC | AZR | Z | IP | I | 2020-10-07 21:14:44 | 0.5 | y | 622 | 340 | |||
| IIEES SC | GLO | Z | IP | I | 2020-10-07 21:14:51 | 0.4 | y | 678 | 48 | |||
| IIEES SC | SHRO | Z | IP | I | 2020-10-07 21:15:06 | -1 | y | 811 | 61 | |||
