Magnitude |
:3.4 |
| Date & Time (UTC) | 2020-10-16 05:37:54.7 |
| Date & Time (Local) | 1399/7/25 09:07:54.7 |

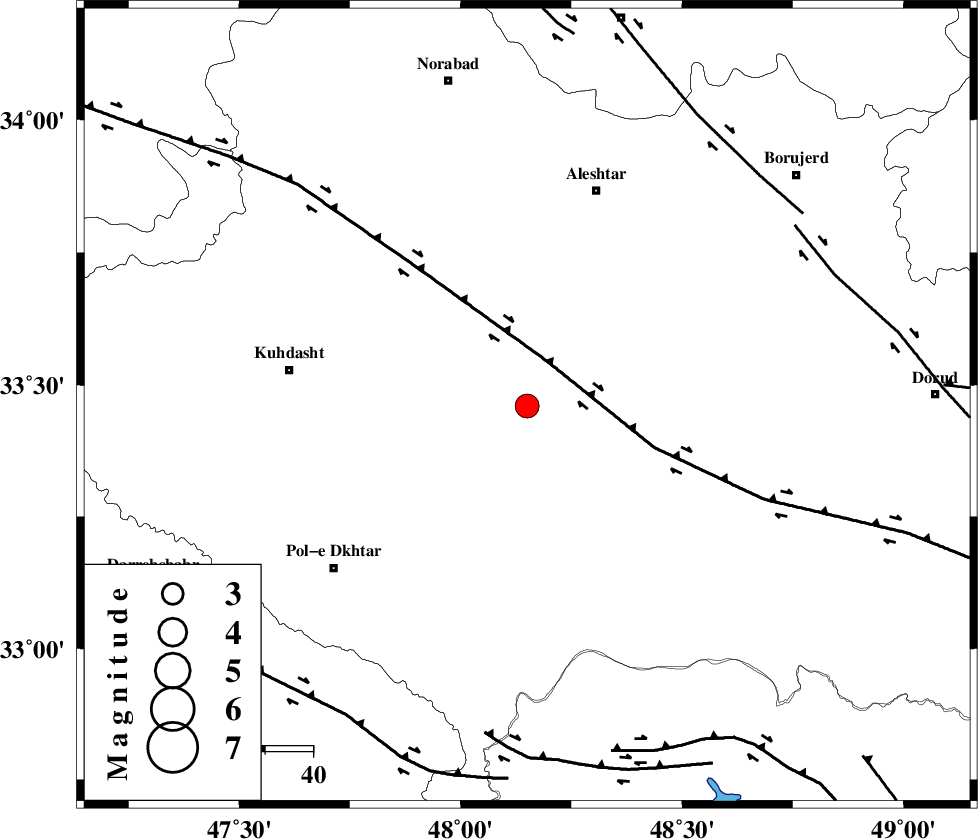

| Location | Lat:33.46 Lon: 48.15 |
| Region | Lorestan Province, 20 km -West of Khorramabad |
Nearest Cities |
|
| 1 km North of Godar-e mahmudvand, Lorestan Province | |
| 9 km North of Shoorab-e sofla, Lorestan Province | |
| 11 km East of Mahmudvand, Lorestan Province | |
| 15 km East of Sarabboreh, Lorestan Province | |
| 19 km North West of Badrabad-e sofla, Lorestan Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| HZF4 (Length: 492 km) , Distance to epicenter: 10 km | |
| DORUD (Length: 100 km) , Distance to epicenter: 68 km | |
| NAHAVAND_F (Length: 102 km) , Distance to epicenter: 69 km | |
| Number of Phases | 16 |
| RMS | 0.5 |
| Number of Stations | 16 |
| Error in Latitude | >1 km |
| Error in Longitude | 0 km |
| Error in Depth | 8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 158393 | IIEES SC | GTMR | Z | 430 | 1 | 2020-10-16 05:38:40 | 2020-10-18 09:57:00 | n |
| 158394 | IIEES SC | KHMZ | Z | 290 | 1 | 2020-10-16 05:38:50 | 2020-10-18 09:57:00 | n |
| 158395 | IIEES SC | ILBA | Z | 110 | 1 | 2020-10-16 05:38:52 | 2020-10-18 09:57:00 | n |
| 158396 | IIEES SC | SNGE | Z | 180 | 1 | 2020-10-16 05:39:00 | 2020-10-18 09:57:00 | n |
| 158397 | IIEES SC | ASAO | Z | 340 | 1 | 2020-10-16 05:39:01 | 2020-10-18 09:57:00 | n |
| 158398 | IIEES SC | AMIS | Z | 290 | 1 | 2020-10-16 05:39:15 | 2020-10-18 09:57:00 | n |
| 158399 | IIEES SC | GHVR | Z | 270 | 1 | 2020-10-16 05:39:04 | 2020-10-18 09:57:00 | n |
| 158400 | IIEES SC | ZNJK | Z | 11 | 1 | 2020-10-16 05:40:22 | 2020-10-18 09:57:00 | n |
| 158401 | IIEES SC | CHTH | Z | 22 | 1 | 2020-10-16 05:39:52 | 2020-10-18 09:57:00 | n |
| 158402 | IIEES SC | SRSL | Z | 43 | 1 | 2020-10-16 05:40:00 | 2020-10-18 09:57:00 | n |
| 158403 | IIEES SC | GIDE | Z | 70 | 1 | 2020-10-16 05:40:08 | 2020-10-18 09:57:00 | n |
| 158404 | IIEES SC | KLNJ | Z | 37 | 1 | 2020-10-16 05:39:52 | 2020-10-18 09:57:00 | n |
| 158405 | IIEES SC | DAMV | Z | 39 | 1 | 2020-10-16 05:40:05 | 2020-10-18 09:57:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GTMR | N | IS | I | 2020-10-16 05:38:36 | 1 | y | 144 | 141 | |||
| IIEES SC | GTMR | Z | IP | I | 2020-10-16 05:38:18 | 0 | y | 144 | 141 | |||
| IIEES SC | KHMZ | N | IS | I | 2020-10-16 05:38:44 | 0.2 | y | 166 | 79 | |||
| IIEES SC | KHMZ | Z | IP | I | 2020-10-16 05:38:22 | -0.4 | y | 166 | 79 | |||
| IIEES SC | ILBA | Z | IP | I | 2020-10-16 05:38:24 | 0 | y | 177 | 276 | |||
| IIEES SC | SNGE | Z | IP | I | 2020-10-16 05:38:26 | -0.3 | y | 200 | 338 | |||
| IIEES SC | ASAO | Z | IP | I | 2020-10-16 05:38:28 | -0.9 | y | 211 | 55 | |||
| IIEES SC | AMIS | Z | IP | I | 2020-10-16 05:38:30 | -0.7 | y | 222 | 152 | |||
| IIEES SC | QABG | Z | IP | I | 2020-10-16 05:38:39 | 0.9 | y | 278 | 28 | |||
| IIEES SC | GHVR | Z | IP | I | 2020-10-16 05:38:41 | 0.6 | y | 311 | 68 | |||
| IIEES SC | ZNJK | Z | IP | I | 2020-10-16 05:38:48 | 0.7 | y | 355 | 8 | |||
| IIEES SC | CHTH | Z | IP | I | 2020-10-16 05:38:50 | -0.2 | y | 389 | 45 | |||
| IIEES SC | SRSL | Z | IP | I | 2020-10-16 05:38:52 | 0.2 | y | 389 | 321 | |||
| IIEES SC | GIDE | Z | IP | I | 2020-10-16 05:38:54 | 0 | y | 411 | 23 | |||
| IIEES SC | KLNJ | Z | IP | I | 2020-10-16 05:38:54 | -1.1 | y | 422 | 130 | |||
| IIEES SC | DAMV | Z | IP | I | 2020-10-16 05:38:55 | -0.4 | y | 422 | 55 | |||
