Magnitude |
:3.2 |
| Date & Time (UTC) | 2020-10-16 01:18:49.1 |
| Date & Time (Local) | 1399/7/25 04:48:49.1 |

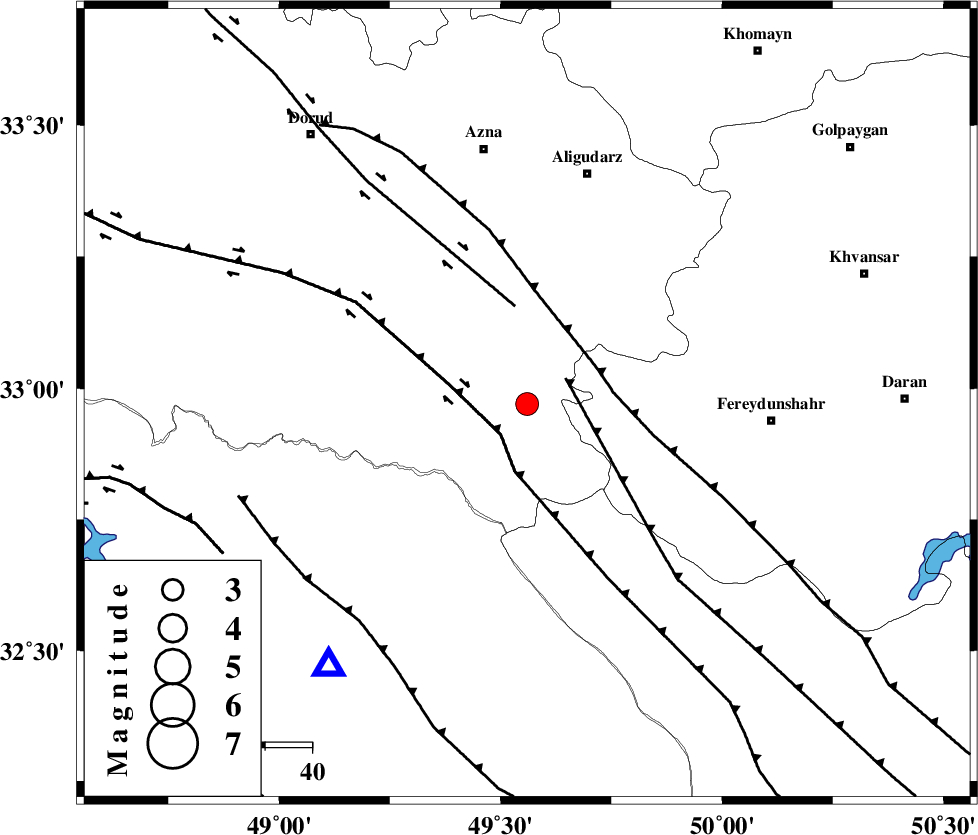

| Location | Lat:32.97 Lon: 49.56 |
| Region | Lorestan Province, 50 km South-West of Aligudarz |
Nearest Cities |
|
| 11 km North of Parchal, Lorestan Province | |
| 31 km North West of Masir, Esfahan Province | |
| 31 km South West of Farsesh, Lorestan Province | |
| 34 km South West of Shapoorabad, Lorestan Province | |
| 34 km South West of Shapoorabad, Lorestan Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| HZF4 (Length: 492 km) , Distance to epicenter: 9 km | |
| ARDAL_F (Length: 170 km) , Distance to epicenter: 10 km | |
| ZARDKUH_F (Length: 139 km) , Distance to epicenter: 14 km | |
| Number of Phases | 13 |
| RMS | 0.6 |
| Number of Stations | 11 |
| Error in Latitude | >2 km |
| Error in Longitude | 0 km |
| Error in Depth | 5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 158406 | IIEES SC | GTMR | Z | 750 | 1 | 2020-10-16 01:19:13 | 2020-10-18 10:13:00 | n |
| 158407 | IIEES SC | AMIS | Z | 400 | 1 | 2020-10-16 01:19:42 | 2020-10-18 10:13:00 | n |
| 158408 | IIEES SC | ASAO | Z | 170 | 1 | 2020-10-16 01:19:46 | 2020-10-18 10:13:00 | n |
| 158409 | IIEES SC | GHVR | Z | 290 | 1 | 2020-10-16 01:20:02 | 2020-10-18 10:13:00 | n |
| 158410 | IIEES SC | KLNJ | Z | 55 | 1 | 2020-10-16 01:20:26 | 2020-10-18 10:13:00 | n |
| 158411 | IIEES SC | SNGE | Z | 41 | 1 | 2020-10-16 01:20:30 | 2020-10-18 10:13:00 | n |
| 158412 | IIEES SC | ILBA | Z | 21 | 1 | 2020-10-16 01:20:34 | 2020-10-18 10:13:00 | n |
| 158413 | IIEES SC | CHTH | Z | 17 | 1 | 2020-10-16 01:20:39 | 2020-10-18 10:13:00 | n |
| 158414 | IIEES SC | DAMV | Z | 31 | 1 | 2020-10-16 01:20:41 | 2020-10-18 10:13:00 | n |
| 158415 | IIEES SC | SRSL | Z | 31 | 1 | 2020-10-16 01:22:01 | 2020-10-18 10:13:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GTMR | Z | IP | I | 2020-10-16 01:19:00 | -0.8 | y | 66 | 217 | |||
| IIEES SC | KHMZ | N | IS | I | 2020-10-16 01:19:13 | -4 | n | 4 | 88 | 24 | ||
| IIEES SC | KHMZ | Z | IP | I | 2020-10-16 01:19:02 | -3 | n | 4 | 88 | 24 | ||
| IIEES SC | AMIS | Z | IP | I | 2020-10-16 01:19:14 | 0.7 | y | 144 | 190 | |||
| IIEES SC | ASAO | Z | IP | I | 2020-10-16 01:19:18 | -0.7 | y | 177 | 14 | |||
| IIEES SC | GHVR | Z | IP | I | 2020-10-16 01:19:25 | -0.6 | y | 233 | 43 | |||
| IIEES SC | KLNJ | Z | IP | I | 2020-10-16 01:19:33 | 0 | y | 289 | 139 | |||
| IIEES SC | QABG | Z | IP | I | 2020-10-16 01:19:35 | -0.2 | y | 300 | 0 | |||
| IIEES SC | SNGE | Z | IP | I | 2020-10-16 01:19:37 | 1 | y | 311 | 319 | |||
| IIEES SC | ILBA | Z | IP | I | 2020-10-16 01:19:36 | -0.3 | y | 322 | 283 | |||
| IIEES SC | CHTH | Z | IP | I | 2020-10-16 01:19:42 | 0.4 | y | 355 | 24 | |||
| IIEES SC | DAMV | Z | IP | I | 2020-10-16 01:19:43 | 0.3 | y | 366 | 37 | |||
| IIEES SC | SRSL | Z | IP | I | 2020-10-16 01:20:03 | 0.9 | y | 522 | 314 | |||
