Magnitude |
:3.3 |
| Date & Time (UTC) | 2020-10-27 03:25:29.6 |
| Date & Time (Local) | 1399/8/6 06:55:29.6 |

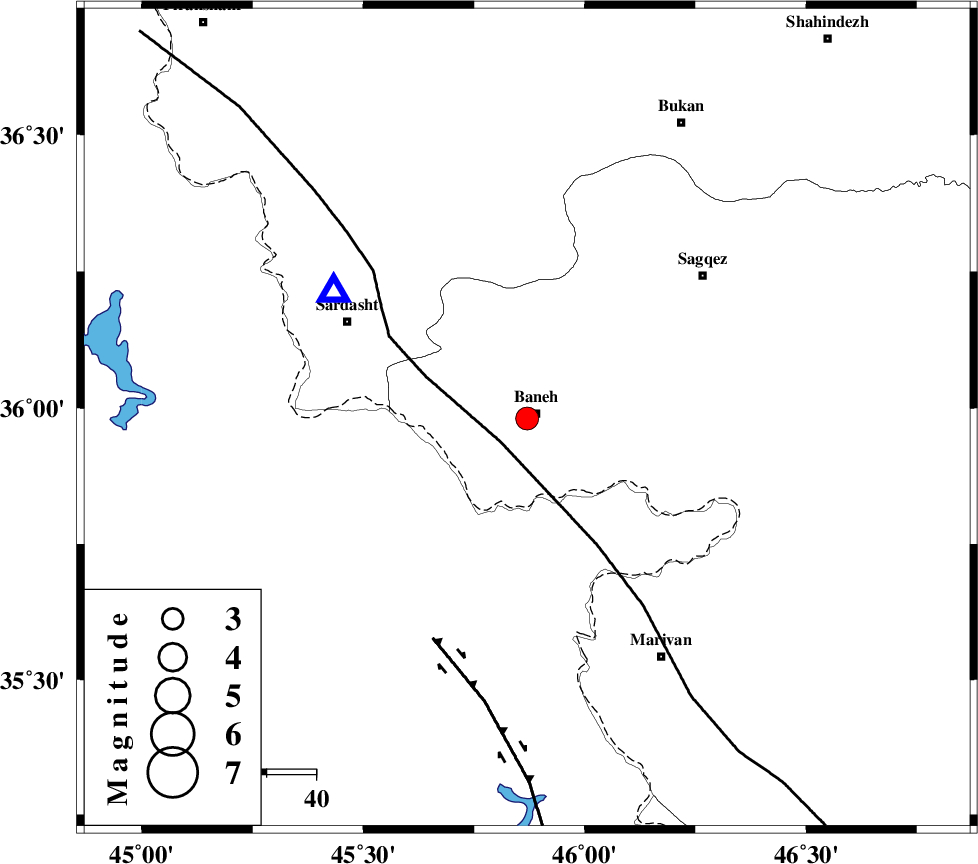

| Location | Lat:35.98 Lon: 45.87 |
| Region | Kurdistan Province, 2 km of Baneh |
Nearest Cities |
|
| 2 km of Baneh, Kurdistan Province | |
| 6 km of Shoy, Kurdistan Province | |
| 8 km North of Buein-esofla, Kurdistan Province | |
| 11 km North of Armarde, Kurdistan Province | |
| 14 km of Kanisur, Kurdistan Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| PIRANSHAHR_F (Length: 253 km) , Distance to epicenter: 7 km | |
| HZF4 (Length: 492 km) , Distance to epicenter: 49 km | |
| SARTAKHT_F (Length: 78 km) , Distance to epicenter: 134 km | |
| Number of Phases | 12 |
| RMS | 0.3 |
| Number of Stations | 12 |
| Error in Latitude | >2 km |
| Error in Longitude | 0 km |
| Error in Depth | 4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 158638 | IIEES SC | SRSL | Z | 6500 | 1 | 2020-10-27 03:25:46 | 2020-10-27 01:40:00 | n |
| 158639 | IIEES SC | MAHB | Z | 990 | 1 | 2020-10-27 03:26:00 | 2020-10-27 01:40:00 | n |
| 158640 | IIEES SC | SNGE | Z | 300 | 1 | 2020-10-27 03:26:27 | 2020-10-27 01:40:00 | n |
| 158641 | IIEES SC | AZR | Z | 1500 | 1 | 2020-10-27 03:26:34 | 2020-10-27 01:40:00 | n |
| 158642 | IIEES SC | ILBA | Z | 60 | 1 | 2020-10-27 03:26:52 | 2020-10-27 01:40:00 | n |
| 158643 | IIEES SC | ZNJK | Z | 4.3 | 1 | 2020-10-27 03:26:50 | 2020-10-27 01:40:00 | n |
| 158644 | IIEES SC | GRMI | Z | 11 | 1 | 2020-10-27 03:27:19 | 2020-10-27 01:40:00 | n |
| 158645 | IIEES SC | GIDE | Z | 55 | 1 | 2020-10-27 03:27:25 | 2020-10-27 01:40:00 | n |
| 158646 | IIEES SC | ASAO | Z | 21 | 1 | 2020-10-27 03:27:42 | 2020-10-27 01:40:00 | n |
| 158647 | IIEES SC | KHMZ | Z | 19 | 1 | 2020-10-27 03:27:46 | 2020-10-27 01:40:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | SRSL | Z | IP | I | 2020-10-27 03:25:38 | -0.1 | y | 44 | 303 | |||
| IIEES SC | MAHB | Z | IP | I | 2020-10-27 03:25:44 | -0.6 | y | 88 | 351 | |||
| IIEES SC | SNGE | Z | IP | I | 2020-10-27 03:25:56 | -0.7 | y | 166 | 126 | |||
| IIEES SC | AZR | Z | IP | I | 2020-10-27 03:26:00 | 0.2 | y | 189 | 3 | |||
| IIEES SC | ILBA | Z | IP | I | 2020-10-27 03:26:10 | 0.1 | y | 266 | 173 | |||
| IIEES SC | ZNJK | Z | IP | I | 2020-10-27 03:26:10 | -0.3 | y | 266 | 73 | |||
| IIEES SC | MRD | Z | IP | I | 2020-10-27 03:26:16 | 0.5 | y | 300 | 357 | |||
| IIEES SC | QABG | Z | IP | I | 2020-10-27 03:26:19 | -0.1 | y | 333 | 95 | |||
| IIEES SC | GRMI | Z | IP | I | 2020-10-27 03:26:23 | 0.9 | y | 366 | 30 | |||
| IIEES SC | GIDE | Z | IP | I | 2020-10-27 03:26:24 | -0.3 | y | 378 | 74 | |||
| IIEES SC | ASAO | Z | IP | I | 2020-10-27 03:26:28 | -0.3 | y | 411 | 113 | |||
| IIEES SC | KHMZ | Z | IP | I | 2020-10-27 03:26:34 | 0.8 | y | 444 | 124 | |||
