Magnitude |
:3.5 |
| Date & Time (UTC) | 2020-10-29 13:24:28.0 |
| Date & Time (Local) | 1399/8/8 16:54:28.0 |

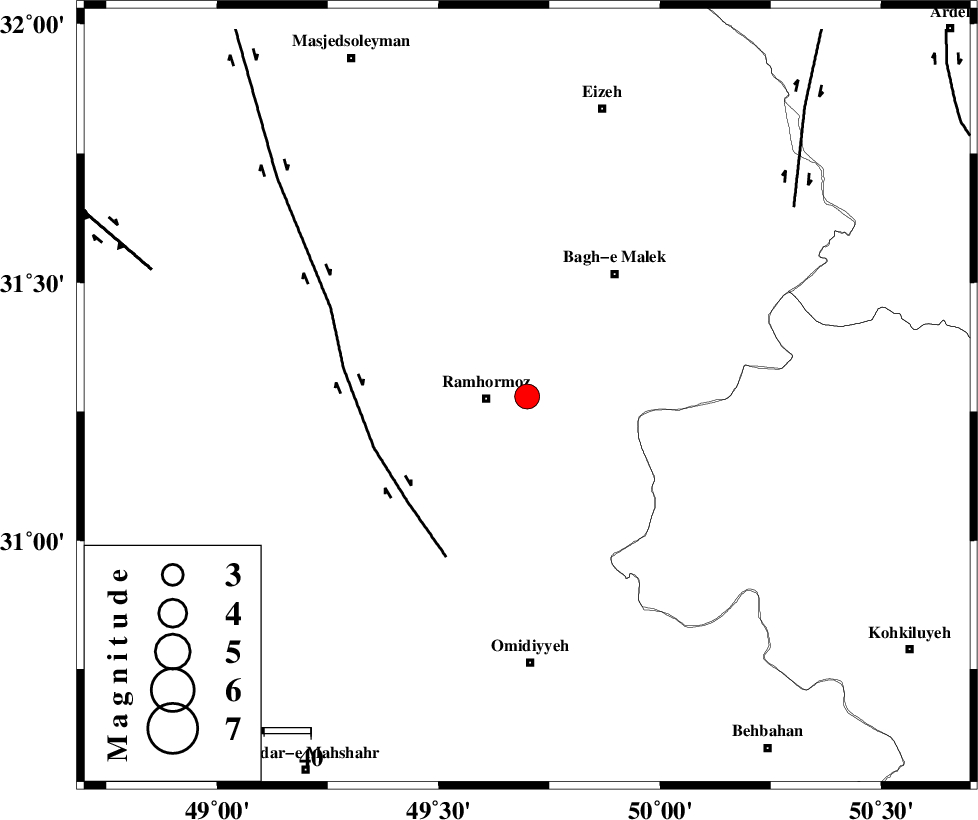

| Location | Lat:31.28 Lon: 49.7 |
| Region | Khoozestan Province, 9 km of Ramhormoz |
Nearest Cities |
|
| 9 km North of Ramhormoz, Khoozestan Province | |
| 18 km West of Dalan, Khoozestan Province | |
| 18 km South of Midavood-e sofla, Khoozestan Province | |
| 25 km South East of Haftgol, Khoozestan Province | |
| 26 km North of Soltanabad, Khoozestan Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 16 km | |
| MFF4 (Length: 62 km) , Distance to epicenter: 22 km | |
| AGHAJARI_F (Length: 88 km) , Distance to epicenter: 34 km | |
| Number of Phases | 11 |
| RMS | 0.5 |
| Number of Stations | 11 |
| Error in Latitude | >4 km |
| Error in Longitude | 0 km |
| Error in Depth | 5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 158751 | IIEES SC | AMIS | Z | 1900 | 1 | 2020-10-29 13:25:00 | 2020-10-31 09:13:00 | n |
| 158752 | IIEES SC | GTMR | Z | 1100 | 1 | 2020-10-29 13:25:17 | 2020-10-31 09:13:00 | n |
| 158753 | IIEES SC | KLNJ | Z | 330 | 1 | 2020-10-29 13:25:24 | 2020-10-31 09:13:00 | n |
| 158754 | IIEES SC | KHMZ | Z | 160 | 1 | 2020-10-29 13:25:47 | 2020-10-31 09:13:00 | n |
| 158755 | IIEES SC | ASAO | Z | 89 | 1 | 2020-10-29 13:26:18 | 2020-10-31 09:13:00 | n |
| 158756 | IIEES SC | GHVR | Z | 6.1 | 1 | 2020-10-29 13:26:14 | 2020-10-31 09:13:00 | n |
| 158757 | IIEES SC | ILBA | Z | 36 | 1 | 2020-10-29 13:26:46 | 2020-10-31 09:13:00 | n |
| 158758 | IIEES SC | SNGE | Z | 34 | 1 | 2020-10-29 13:26:39 | 2020-10-31 09:13:00 | n |
| 158759 | IIEES SC | QABG | Z | 6.3 | 1 | 2020-10-29 13:26:55 | 2020-10-31 09:13:00 | n |
| 158760 | IIEES SC | TABS | Z | 5.2 | 1 | 2020-10-29 13:28:22 | 2020-10-31 09:13:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | AMIS | Z | IP | I | 2020-10-29 13:24:39 | 0.7 | y | 55 | 318 | |||
| IIEES SC | GTMR | Z | IP | I | 2020-10-29 13:24:52 | 0 | y | 144 | 337 | |||
| IIEES SC | KLNJ | Z | IP | I | 2020-10-29 13:24:58 | 0.2 | y | 177 | 99 | |||
| IIEES SC | KHMZ | Z | IP | I | 2020-10-29 13:25:09 | -0.5 | y | 278 | 5 | |||
| IIEES SC | ASAO | Z | IP | I | 2020-10-29 13:25:22 | 0.8 | y | 366 | 5 | |||
| IIEES SC | GHVR | Z | IP | I | 2020-10-29 13:25:24 | 0.8 | y | 389 | 22 | |||
| IIEES SC | ILBA | Z | IP | I | 2020-10-29 13:25:27 | -0.4 | y | 422 | 308 | |||
| IIEES SC | MEH | Z | IP | I | 2020-10-29 13:25:34 | -0.1 | y | 467 | 88 | |||
| IIEES SC | SNGE | Z | IP | I | 2020-10-29 13:25:34 | -0.8 | y | 478 | 333 | |||
| IIEES SC | QABG | Z | IP | I | 2020-10-29 13:25:37 | -0.4 | y | 489 | 359 | |||
| IIEES SC | TABS | Z | IP | I | 2020-10-29 13:26:07 | -0.9 | y | 745 | 69 | |||
