Magnitude |
:3.3 |
| Date & Time (UTC) | 2020-10-14 18:18:33.0 |
| Date & Time (Local) | 1399/7/23 21:48:33.0 |

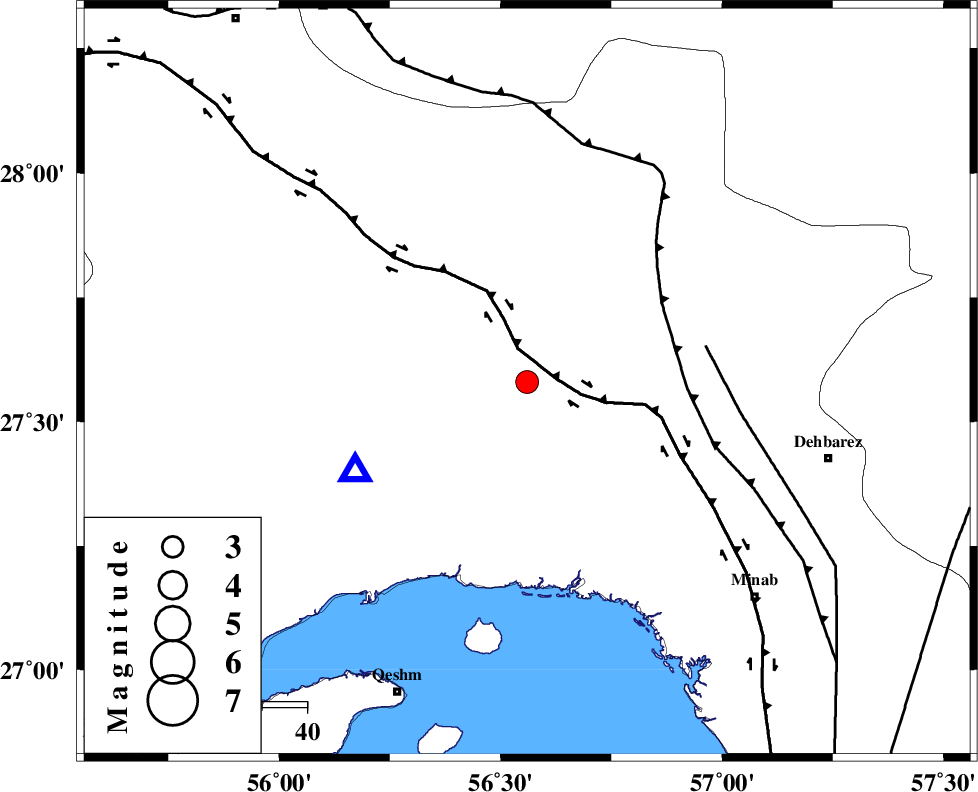

| Location | Lat:27.58 Lon: 56.56 |
| Region | Hormozgan Province, 52 km North-East of Bandar-e abbas |
Nearest Cities |
|
| 52 km North East of Bandar-e abbas, Hormozgan Province | |
| 58 km South East of Fareqan, Hormozgan Province | |
| 65 km East of Fin, Hormozgan Province | |
| 65 km North West of Balashahr, Hormozgan Province | |
| 68 km South West of Ziaratali, Hormozgan Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| HZF2 (Length: 437 km) , Distance to epicenter: 7 km | |
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 35 km | |
| ZENDAN_MINAB_F_Z1 (Length: 183 km) , Distance to epicenter: 41 km | |
| Number of Phases | 11 |
| RMS | 0.3 |
| Number of Stations | 11 |
| Error in Latitude | >2 km |
| Error in Longitude | 0 km |
| Error in Depth | 5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 158880 | IIEES SC | BNDS | Z | 1200 | 1 | 2020-10-14 18:18:52 | 2020-11-02 10:53:00 | n |
| 158881 | IIEES SC | JSSH | Z | 200 | 1 | 2020-10-14 18:19:40 | 2020-11-02 10:53:00 | n |
| 158882 | IIEES SC | KRBR | Z | 130 | 1 | 2020-10-14 18:19:51 | 2020-11-02 10:53:00 | n |
| 158883 | IIEES SC | LMD1 | Z | 100 | 1 | 2020-10-14 18:20:14 | 2020-11-02 10:53:00 | n |
| 158884 | IIEES SC | GHIR | Z | 0.33 | 1 | 2020-10-14 18:20:36 | 2020-11-02 10:53:00 | n |
| 158885 | IIEES SC | ZHSF | Z | 3.3 | 1 | 2020-10-14 18:20:57 | 2020-11-02 10:53:00 | n |
| 158886 | IIEES SC | BSRN | Z | 10 | 1 | 2020-10-14 18:21:21 | 2020-11-02 10:53:00 | n |
| 158887 | IIEES SC | YZKH | Z | 4.4 | 1 | 2020-10-14 18:21:34 | 2020-11-02 10:53:00 | n |
| 158888 | IIEES SC | SRVN | Z | 4.5 | 1 | 2020-10-14 18:21:33 | 2020-11-02 10:53:00 | n |
| 158889 | IIEES SC | KLNJ | Z | 9.5 | 1 | 2020-10-14 18:21:41 | 2020-11-02 10:53:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | BNDS | Z | IP | I | 2020-10-14 18:18:41 | 0 | y | 44 | 242 | |||
| IIEES SC | JSSH | Z | IP | I | 2020-10-14 18:19:05 | 0 | y | 200 | 156 | |||
| IIEES SC | KRBR | Z | IP | I | 2020-10-14 18:19:14 | 0.4 | y | 266 | 4 | |||
| IIEES SC | LMD1 | Z | IP | I | 2020-10-14 18:19:22 | 0.2 | y | 333 | 265 | |||
| IIEES SC | GHIR | Z | IP | I | 2020-10-14 18:19:25 | -0.1 | y | 355 | 282 | |||
| IIEES SC | MEH | Z | IP | I | 2020-10-14 18:19:37 | -0.4 | y | 467 | 336 | |||
| IIEES SC | ZHSF | Z | IP | I | 2020-10-14 18:19:39 | 0.8 | y | 467 | 61 | |||
| IIEES SC | BSRN | Z | IP | I | 2020-10-14 18:19:48 | -0.4 | y | 544 | 27 | |||
| IIEES SC | YZKH | Z | IP | I | 2020-10-14 18:19:50 | -0.4 | y | 567 | 340 | |||
| IIEES SC | SRVN | Z | IP | I | 2020-10-14 18:19:51 | -0.8 | y | 578 | 92 | |||
| IIEES SC | KLNJ | Z | IP | I | 2020-10-14 18:19:57 | 0.2 | y | 611 | 308 | |||
