Magnitude |
:3.3 |
| Date & Time (UTC) | 2020-10-14 17:51:26.6 |
| Date & Time (Local) | 1399/7/23 21:21:26.6 |

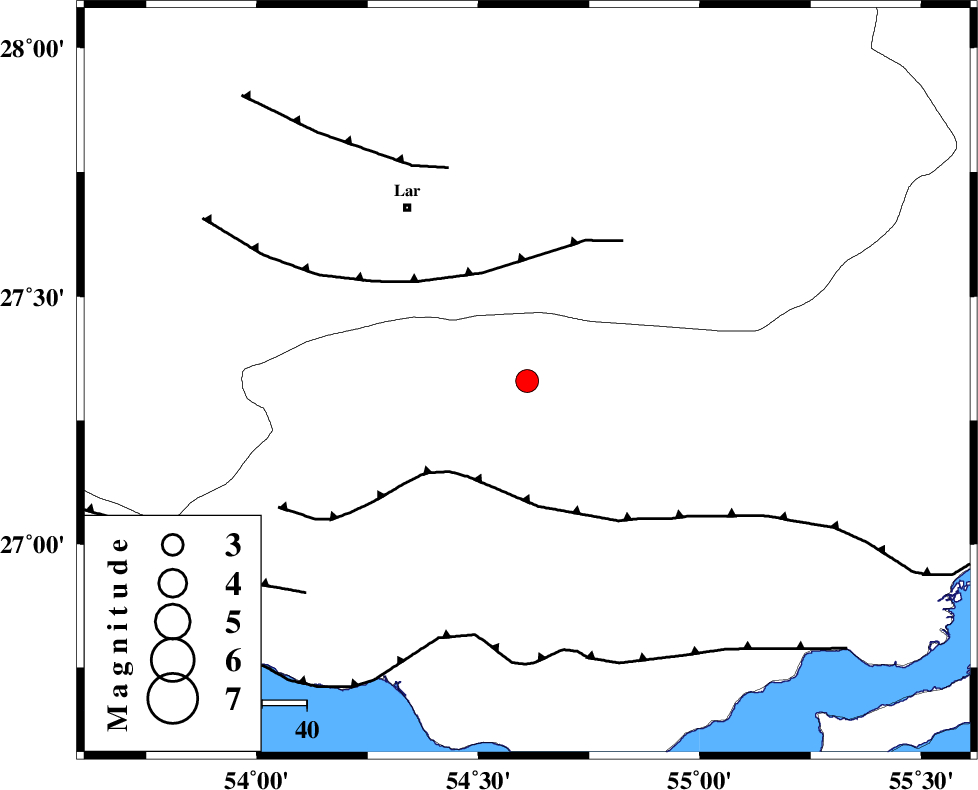

| Location | Lat:27.33 Lon: 54.61 |
| Region | Hormozgan Province, 28 km North-East of Bastak |
Nearest Cities |
|
| 28 km North East of Bastak, Hormozgan Province | |
| 47 km South East of Latifi, Fars Province | |
| 47 km South East of Lar, Fars Province | |
| 48 km North East of Jenah, Hormozgan Province | |
| 57 km South East of Grash, Fars Province | |
| Depth | 20 km |
| Agency | |
Faults within 150 km: |
|
| MFF1 (Length: 180 km) , Distance to epicenter: 25 km | |
| LAR_F (Length: 99 km) , Distance to epicenter: 26 km | |
| BERIZ_F (Length: 49 km) , Distance to epicenter: 51 km | |
| Number of Phases | 11 |
| RMS | 0.8 |
| Number of Stations | 11 |
| Error in Latitude | >4 km |
| Error in Longitude | 0 km |
| Error in Depth | 7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 158890 | IIEES SC | LMD1 | Z | 890 | 1 | 2020-10-14 17:52:11 | 2020-11-02 12:57:00 | n |
| 158891 | IIEES SC | BNDS | Z | 260 | 1 | 2020-10-14 17:52:20 | 2020-11-02 12:57:00 | n |
| 158892 | IIEES SC | GHIR | Z | 0.37 | 1 | 2020-10-14 17:52:50 | 2020-11-02 12:57:00 | n |
| 158893 | IIEES SC | JSSH | Z | 39 | 1 | 2020-10-14 17:52:59 | 2020-11-02 12:57:00 | n |
| 158894 | IIEES SC | KRBR | Z | 68 | 1 | 2020-10-14 17:53:23 | 2020-11-02 12:57:00 | n |
| 158895 | IIEES SC | KLNJ | Z | 20 | 1 | 2020-10-14 17:53:30 | 2020-11-02 12:57:00 | n |
| 158896 | IIEES SC | YZKH | Z | 5.5 | 1 | 2020-10-14 17:54:14 | 2020-11-02 12:57:00 | n |
| 158897 | IIEES SC | CHBR | Z | 41 | 1 | 2020-10-14 17:53:50 | 2020-11-02 12:57:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | LMD1 | N | IS | I | 2020-10-14 17:52:08 | 0.9 | y | 144 | 270 | |||
| IIEES SC | LMD1 | Z | IP | I | 2020-10-14 17:51:50 | 0 | y | 144 | 270 | |||
| IIEES SC | BNDS | N | IS | I | 2020-10-14 17:52:11 | 1 | y | 155 | 87 | |||
| IIEES SC | BNDS | Z | IP | I | 2020-10-14 17:51:51 | -0.2 | y | 155 | 87 | |||
| IIEES SC | GHIR | Z | IP | I | 2020-10-14 17:51:55 | -1.7 | y | 189 | 303 | |||
| IIEES SC | JSSH | Z | IP | I | 2020-10-14 17:52:12 | -0.2 | y | 322 | 120 | |||
| IIEES SC | KRBR | Z | IP | I | 2020-10-14 17:52:19 | 0.8 | y | 355 | 36 | |||
| IIEES SC | MEH | Z | IP | I | 2020-10-14 17:52:29 | 0.2 | y | 444 | 0 | |||
| IIEES SC | KLNJ | Z | IP | I | 2020-10-14 17:52:35 | -1.2 | y | 500 | 324 | |||
| IIEES SC | YZKH | Z | IP | I | 2020-10-14 17:52:43 | -0.5 | y | 556 | 360 | |||
| IIEES SC | CHBR | Z | IP | I | 2020-10-14 17:52:48 | -1.3 | y | 611 | 108 | |||
