Magnitude |
:4.1 |
| Date & Time (UTC) | 2020-11-05 04:05:43.6 |
| Date & Time (Local) | 1399/8/15 07:35:43.6 |

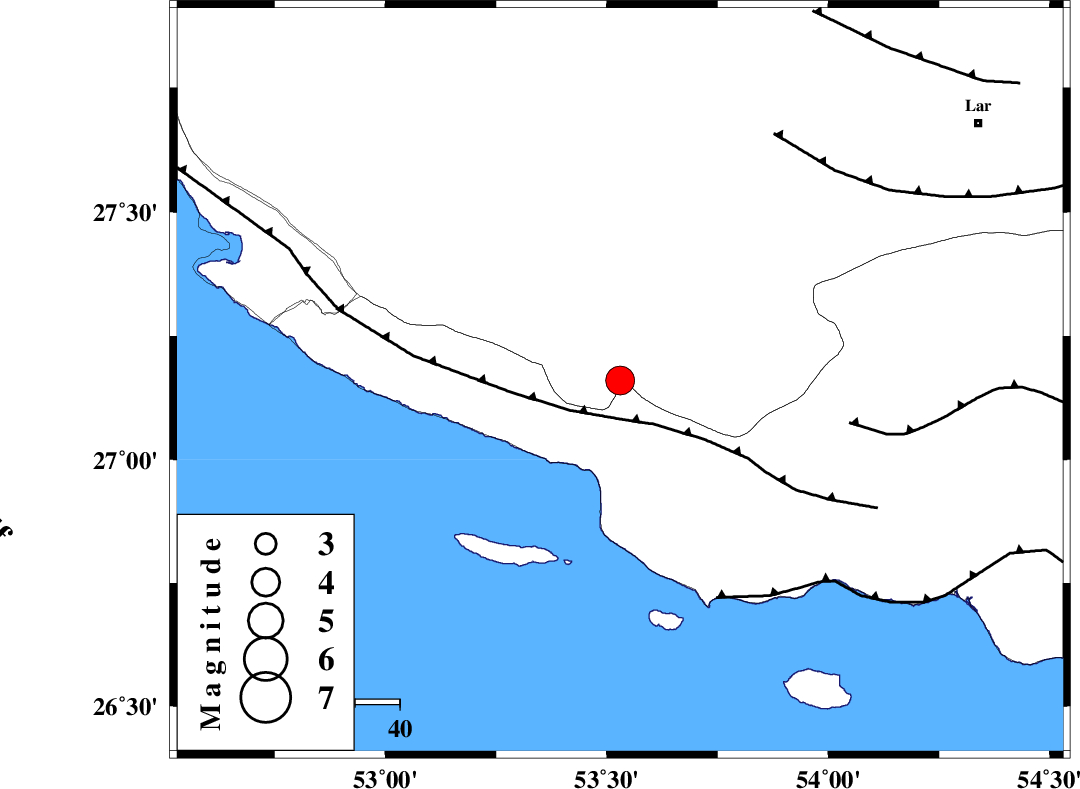

| Location | Lat:27.16 Lon: 53.53 |
| Region | Fars Province, 41 km South-East of Lamerd |
Nearest Cities |
|
| 11 km of Ashkenan, Fars Province | |
| 20 km West of Ahl, Fars Province | |
| 30 km South of Beyram, Fars Province | |
| 41 km South East of Lamerd, Fars Province | |
| 47 km South of Fedagh, Fars Province | |
| Depth | 32 km |
| Agency | |
Faults within 150 km: |
|
| MFF3 (Length: 292 km) , Distance to epicenter: 9 km | |
| MFF1 (Length: 180 km) , Distance to epicenter: 52 km | |
| ZFF1 (Length: 165 km) , Distance to epicenter: 53 km | |
| Number of Phases | 23 |
| RMS | 0.5 |
| Number of Stations | 21 |
| Error in Latitude | >3 km |
| Error in Longitude | 0 km |
| Error in Depth | 3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 159053 | IIEES SC | LMD1 | Z | 14000 | 1 | 2020-11-05 04:06:00 | 2020-11-09 12:06:00 | n |
| 159054 | IIEES SC | BNDS | Z | 850 | 1 | 2020-11-05 04:07:15 | 2020-11-09 12:06:00 | n |
| 159055 | IIEES SC | AHRM | Z | 100 | 1 | 2020-11-05 04:07:30 | 2020-11-09 12:06:00 | n |
| 159056 | IIEES SC | JSSH | Z | 200 | 1 | 2020-11-05 04:08:07 | 2020-11-09 12:06:00 | n |
| 159057 | IIEES SC | KLNJ | Z | 120 | 1 | 2020-11-05 04:08:20 | 2020-11-09 12:06:00 | n |
| 159058 | IIEES SC | YZKH | Z | 55 | 1 | 2020-11-05 04:07:17 | 2020-11-09 12:06:00 | n |
| 159059 | IIEES SC | AMIS | Z | 72 | 1 | 2020-11-05 04:08:16 | 2020-11-09 12:06:00 | n |
| 159060 | IIEES SC | CHBR | Z | 36 | 1 | 2020-11-05 04:07:32 | 2020-11-09 12:06:00 | n |
| 159061 | IIEES SC | GTMR | Z | 38 | 1 | 2020-11-05 04:08:41 | 2020-11-09 12:06:00 | n |
| 159062 | IIEES SC | BSRN | Z | 18 | 1 | 2020-11-05 04:09:32 | 2020-11-09 12:06:00 | n |
| 159063 | IIEES SC | TABS | Z | 22 | 1 | 2020-11-05 04:09:55 | 2020-11-09 12:06:00 | n |
| 159064 | IIEES SC | KHMZ | Z | 23 | 1 | 2020-11-05 04:08:53 | 2020-11-09 12:06:00 | n |
| 159065 | IIEES SC | SRVN | Z | 9.1 | 1 | 2020-11-05 04:08:34 | 2020-11-09 12:06:00 | n |
| 159066 | IIEES SC | ASAO | Z | 18 | 1 | 2020-11-05 04:09:12 | 2020-11-09 12:06:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | LMD1 | Z | IP | I | 2020-11-05 04:05:52 | -0.1 | y | 44 | 299 | |||
| IIEES SC | BNDS | Z | IP | I | 2020-11-05 04:06:22 | 0.2 | y | 266 | 84 | |||
| IIEES SC | AHRM | Z | IP | I | 2020-11-05 04:06:26 | 1 | y | 289 | 311 | |||
| IIEES SC | JSSH | Z | IP | I | 2020-11-05 04:06:40 | -0.1 | y | 411 | 110 | |||
| IIEES SC | KRBR | Z | IP | I | 2020-11-05 04:06:57 | 12.6 | n | 4 | 444 | 45 | ||
| IIEES SC | KLNJ | Z | IP | I | 2020-11-05 04:06:47 | -0.1 | y | 467 | 336 | |||
| IIEES SC | MEH | Z | IP | I | 2020-11-05 04:06:50 | 0.5 | y | 478 | 13 | |||
| IIEES SC | YZKH | Z | IP | I | 2020-11-05 04:07:03 | 0.3 | y | 589 | 10 | |||
| IIEES SC | AMIS | Z | IP | I | 2020-11-05 04:07:09 | -0.6 | y | 644 | 321 | |||
| IIEES SC | CHBR | Z | IP | I | 2020-11-05 04:07:18 | -0.5 | y | 711 | 104 | |||
| IIEES SC | GTMR | Z | IP | I | 2020-11-05 04:07:19 | -0.9 | y | 722 | 324 | |||
| IIEES SC | BSRN | Z | IP | I | 2020-11-05 04:07:23 | -0.7 | y | 756 | 46 | |||
| IIEES SC | ZHSF | Z | IP | I | 2020-11-05 04:07:33 | 9 | n | 4 | 756 | 69 | ||
| IIEES SC | TABS | Z | IP | I | 2020-11-05 04:07:28 | -0.4 | y | 800 | 26 | |||
| IIEES SC | KHMZ | Z | IP | I | 2020-11-05 04:07:29 | -0.6 | y | 811 | 335 | |||
| IIEES SC | SRVN | Z | IP | I | 2020-11-05 04:07:39 | 0.2 | y | 878 | 88 | |||
| IIEES SC | ASAO | Z | IP | I | 2020-11-05 04:07:39 | -0.3 | y | 889 | 338 | |||
| IIEES SC | ANJ | Z | IP | I | 2020-11-05 04:07:44 | 0.3 | y | 922 | 2 | |||
| IIEES SC | DAMV | Z | IP | I | 2020-11-05 04:07:47 | -0.8 | y | 956 | 351 | |||
| IIEES SC | SHRT | Z | IP | I | 2020-11-05 04:07:50 | 0.5 | y | 967 | 42 | |||
| IIEES SC | SHRO | Z | IP | I | 2020-11-05 04:07:54 | -0.5 | y | 1011 | 14 | |||
| IIEES SC | QABG | Z | IP | I | 2020-11-05 04:07:56 | -0.2 | y | 1023 | 338 | |||
| IIEES SC | SNGE | Z | IP | I | 2020-11-05 04:08:01 | -0.2 | y | 1056 | 326 | |||
