Magnitude |
:3.6 |
| Date & Time (UTC) | 2020-11-17 10:14:58.3 |
| Date & Time (Local) | 1399/8/27 13:44:58.3 |

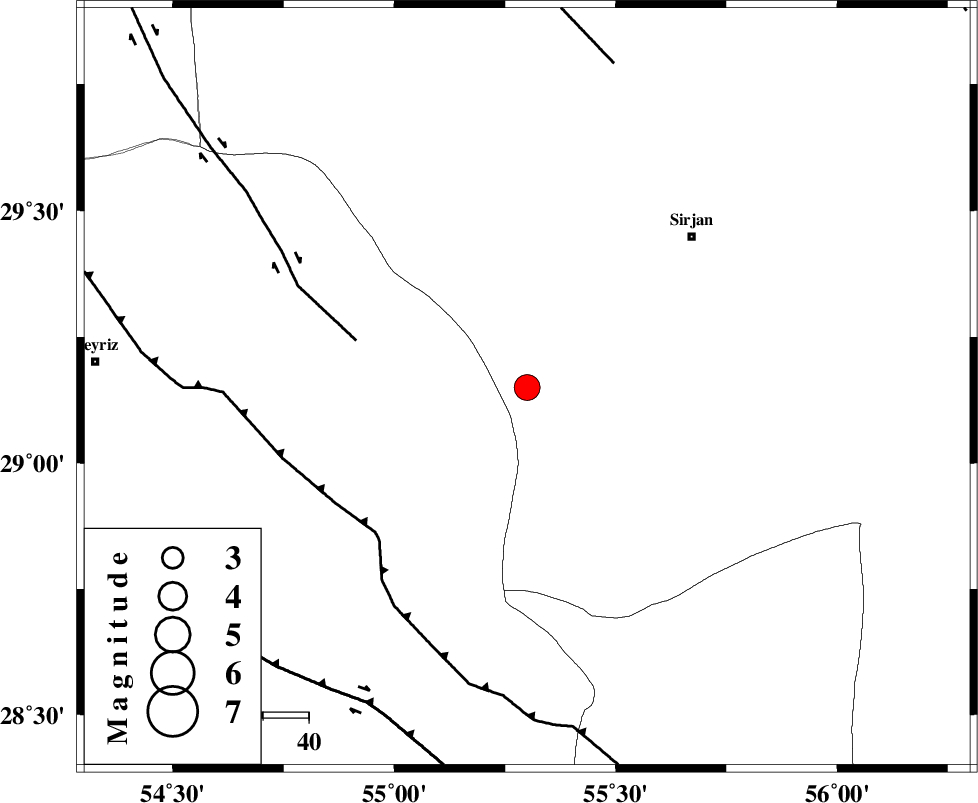

| Location | Lat:29.15 Lon: 55.3 |
| Region | Kerman Province, 49 km South-West of Sirjan |
Nearest Cities |
|
| 45 km South West of Sharifabad, Kerman Province | |
| 48 km South West of Najafabad, Kerman Province | |
| 49 km South West of Sirjan, Kerman Province | |
| 53 km South West of Mahmud Abad, Kerman Province | |
| 53 km South West of Zeydabad, Kerman Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| SHAHR_E_BABAK_F1 (Length: 392 km) , Distance to epicenter: 39 km | |
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 46 km | |
| SHAHR_E_BABAK_F2 (Length: 272 km) , Distance to epicenter: 74 km | |
| Number of Phases | 10 |
| RMS | 0.5 |
| Number of Stations | 8 |
| Error in Latitude | >3 km |
| Error in Longitude | 0 km |
| Error in Depth | 19 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 159344 | IIEES SC | BNDS | Z | 180 | 1 | 2020-11-17 10:15:54 | 2020-11-18 10:29:00 | n |
| 159345 | IIEES SC | GHIR | Z | 0.28 | 1 | 2020-11-17 10:16:18 | 2020-11-18 10:29:00 | n |
| 159346 | IIEES SC | LMD1 | Z | 190 | 1 | 2020-11-17 10:16:46 | 2020-11-18 10:29:00 | n |
| 159347 | IIEES SC | YZKH | Z | 62 | 1 | 2020-11-17 10:16:55 | 2020-11-18 10:29:00 | n |
| 159348 | IIEES SC | KLNJ | Z | 93 | 1 | 2020-11-17 10:16:43 | 2020-11-18 10:29:00 | n |
| 159349 | IIEES SC | JSSH | Z | 56 | 1 | 2020-11-17 10:17:21 | 2020-11-18 10:29:00 | n |
| 159350 | IIEES SC | TABS | Z | 39 | 1 | 2020-11-17 10:17:46 | 2020-11-18 10:29:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | KRBR | Z | IP | I | 2020-11-17 10:15:33 | 7.2 | n | 4 | 166 | 57 | ||
| IIEES SC | BNDS | Z | IP | I | 2020-11-17 10:15:32 | -0.2 | y | 211 | 156 | |||
| IIEES SC | GHIR | Z | IP | I | 2020-11-17 10:15:38 | 0.9 | y | 244 | 247 | |||
| IIEES SC | MEH | Z | IP | I | 2020-11-17 10:15:38 | -0.1 | y | 255 | 345 | |||
| IIEES SC | LMD1 | Z | IP | I | 2020-11-17 10:15:42 | -0.5 | y | 289 | 226 | |||
| IIEES SC | YZKH | Z | IP | I | 2020-11-17 10:15:51 | -0.2 | y | 366 | 349 | |||
| IIEES SC | KLNJ | Z | IP | I | 2020-11-17 10:15:57 | -0.9 | y | 411 | 300 | |||
| IIEES SC | JSSH | Z | IP | I | 2020-11-17 10:15:58 | 0.3 | y | 411 | 150 | |||
| IIEES SC | BSRN | Z | IP | I | 2020-11-17 10:15:59 | -6.6 | n | 4 | 478 | 50 | ||
| IIEES SC | TABS | Z | IP | I | 2020-11-17 10:16:12 | 0.2 | y | 533 | 19 | |||
