Magnitude |
:3 |
| Date & Time (UTC) | 2020-10-13 13:21:02.2 |
| Date & Time (Local) | 1399/7/22 16:51:02.2 |

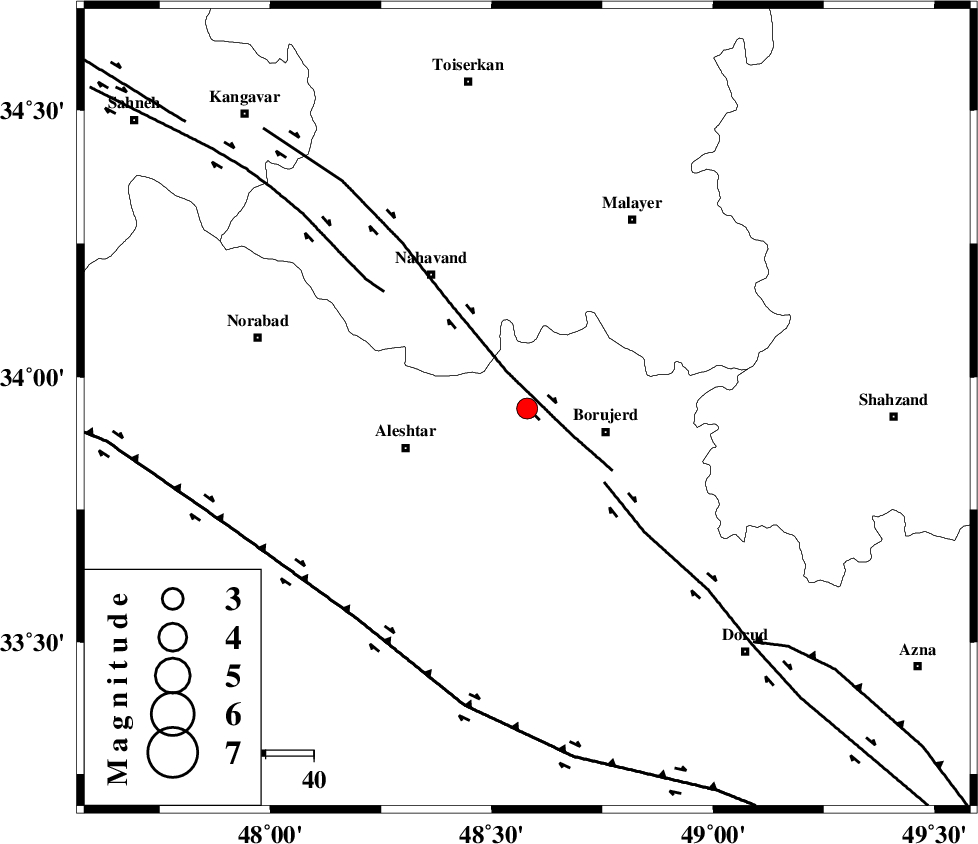

| Location | Lat:33.94 Lon: 48.58 |
| Region | Lorestan Province, 17 km -West of Borujerd |
Nearest Cities |
|
| 8 km of Bon dizeh, Lorestan Province | |
| 10 km of Ashtarinan, Lorestan Province | |
| 14 km South of Jaefarabad, Lorestan Province | |
| 17 km North West of Borujerd, Lorestan Province | |
| 17 km South West of Darre-ye gorg, Lorestan Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| NAHAVAND_F (Length: 102 km) , Distance to epicenter: 9 km | |
| DORUD (Length: 100 km) , Distance to epicenter: 22 km | |
| SAHANEH_F (Length: 77 km) , Distance to epicenter: 39 km | |
| Number of Phases | 10 |
| RMS | 0.3 |
| Number of Stations | 8 |
| Error in Latitude | >1 km |
| Error in Longitude | 0 km |
| Error in Depth | 5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 159351 | IIEES SC | KHMZ | Z | 210 | 1 | 2020-10-13 13:21:41 | 2020-11-18 01:01:00 | n |
| 159352 | IIEES SC | ASAO | Z | 300 | 1 | 2020-10-13 13:21:46 | 2020-11-18 01:01:00 | n |
| 159353 | IIEES SC | SNGE | Z | 97 | 1 | 2020-10-13 13:21:59 | 2020-11-18 01:01:00 | n |
| 159354 | IIEES SC | GTMR | Z | 88 | 1 | 2020-10-13 13:21:59 | 2020-11-18 01:01:00 | n |
| 159355 | IIEES SC | ILBA | Z | 35 | 1 | 2020-10-13 13:22:14 | 2020-11-18 01:01:00 | n |
| 159356 | IIEES SC | GHVR | Z | 9.2 | 1 | 2020-10-13 13:22:43 | 2020-11-18 01:01:00 | n |
| 159357 | IIEES SC | CHTH | Z | 15 | 1 | 2020-10-13 13:22:39 | 2020-11-18 01:01:00 | n |
| 159358 | IIEES SC | DAMV | Z | 23 | 1 | 2020-10-13 13:22:55 | 2020-11-18 01:01:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | KHMZ | N | IS | I | 2020-10-13 13:21:37 | -3.1 | n | 4 | 133 | 100 | ||
| IIEES SC | KHMZ | Z | IP | I | 2020-10-13 13:21:22 | -2 | y | 133 | 100 | |||
| IIEES SC | ASAO | N | IS | I | 2020-10-13 13:21:44 | -1.4 | n | 4 | 144 | 63 | ||
| IIEES SC | ASAO | Z | IP | I | 2020-10-13 13:21:26 | -0.6 | y | 144 | 63 | |||
| IIEES SC | SNGE | Z | IP | I | 2020-10-13 13:21:30 | -0.1 | y | 166 | 318 | |||
| IIEES SC | GTMR | Z | IP | I | 2020-10-13 13:21:30 | -0.1 | y | 166 | 163 | |||
| IIEES SC | ILBA | Z | IP | I | 2020-10-13 13:21:38 | 0.1 | y | 222 | 261 | |||
| IIEES SC | GHVR | Z | IP | I | 2020-10-13 13:21:42 | 0.6 | y | 255 | 76 | |||
| IIEES SC | CHTH | Z | IP | I | 2020-10-13 13:21:51 | 0.8 | y | 322 | 47 | |||
| IIEES SC | DAMV | Z | IP | I | 2020-10-13 13:21:55 | -0.1 | y | 366 | 59 | |||
