Magnitude |
:4.1 |
| Date & Time (UTC) | 2020-12-07 22:24:51.1 |
| Date & Time (Local) | 1399/9/18 01:54:51.1 |

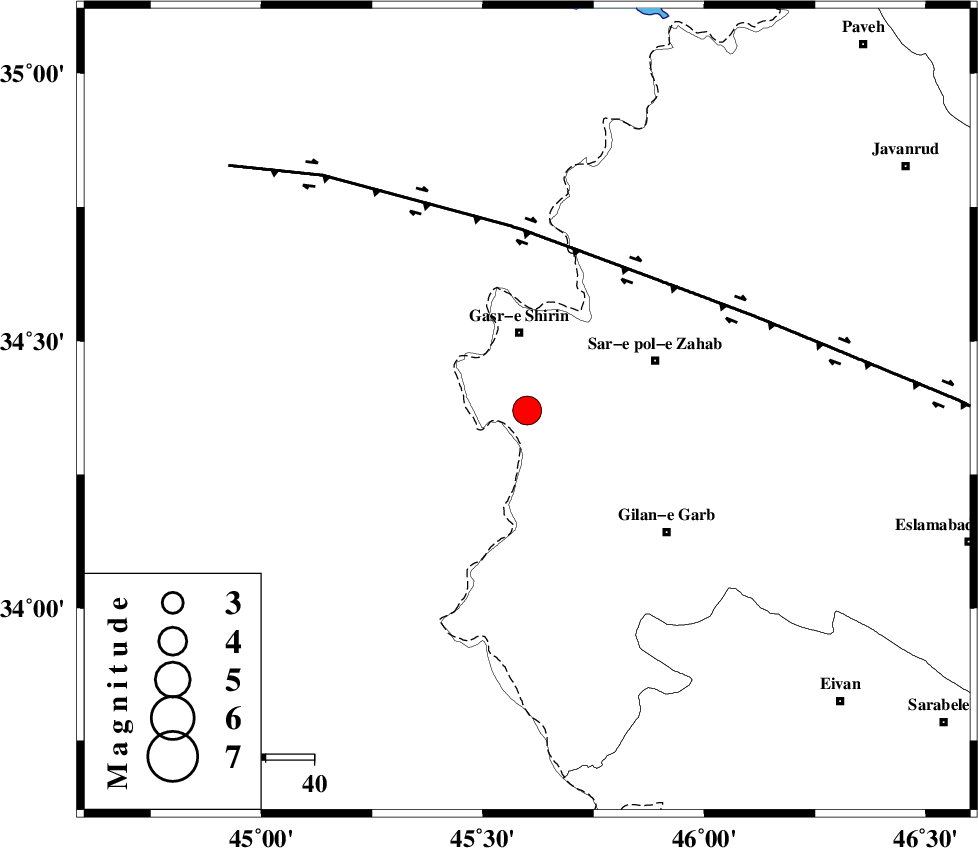

| Location | Lat:34.37 Lon: 45.6 |
| Region | Kermanshah Province, 16 km South of Qasr-E-Shirin |
Nearest Cities |
|
| 8 km of Seyyed sohrab, Kermanshah Province | |
| 12 km East of Khosravi, Kermanshah Province | |
| 16 km South of Qasr-E-Shirin, Kermanshah Province | |
| 20 km South of Aqabarar, Kermanshah Province | |
| 21 km South West of Qareh belagh, Kermanshah Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| MFF8 (Length: 48 km) , Distance to epicenter: 27 km | |
| ZFF4 (Length: 128 km) , Distance to epicenter: 50 km | |
| MFF7 (Length: 99 km) , Distance to epicenter: 58 km | |
| Number of Phases | 15 |
| RMS | 0.3 |
| Number of Stations | 14 |
| Error in Latitude | >2 km |
| Error in Longitude | 0 km |
| Error in Depth | 3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 159766 | IIEES SC | ILBA | Z | 920 | 1 | 2020-12-07 22:25:28 | 2020-12-09 11:30:00 | n |
| 159767 | IIEES SC | SNGE | Z | 800 | 1 | 2020-12-07 22:25:49 | 2020-12-09 11:30:00 | n |
| 159768 | IIEES SC | SRSL | Z | 1300 | 1 | 2020-12-07 22:25:52 | 2020-12-09 11:30:00 | n |
| 159769 | IIEES SC | MAHB | Z | 910 | 1 | 2020-12-07 22:26:08 | 2020-12-09 11:30:00 | n |
| 159770 | IIEES SC | AZR | Z | 1100 | 1 | 2020-12-07 22:26:47 | 2020-12-09 11:30:00 | n |
| 159771 | IIEES SC | GTMR | Z | 180 | 1 | 2020-12-07 22:26:33 | 2020-12-09 11:30:00 | n |
| 159772 | IIEES SC | ASAO | Z | 120 | 1 | 2020-12-07 22:27:00 | 2020-12-09 11:30:00 | n |
| 159773 | IIEES SC | AMIS | Z | 120 | 1 | 2020-12-07 22:27:02 | 2020-12-09 11:30:00 | n |
| 159774 | IIEES SC | GHVR | Z | 110 | 1 | 2020-12-07 22:27:33 | 2020-12-09 11:30:00 | n |
| 159775 | IIEES SC | CHTH | Z | 14 | 1 | 2020-12-07 22:27:26 | 2020-12-09 11:30:00 | n |
| 159776 | IIEES SC | GRMI | Z | 23 | 1 | 2020-12-07 22:27:37 | 2020-12-09 11:30:00 | n |
| 159777 | IIEES SC | DAMV | Z | 12 | 1 | 2020-12-07 22:27:52 | 2020-12-09 11:30:00 | n |
| 159778 | IIEES SC | DAMV | Z | 37 | 0.71 | 2020-12-07 22:26:36 | 2020-12-09 11:30:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | ILBA | Z | IP | I | 2020-12-07 22:25:08 | 0 | y | 100 | 146 | |||
| IIEES SC | SNGE | Z | IP | I | 2020-12-07 22:25:20 | -0.1 | y | 177 | 63 | |||
| IIEES SC | SRSL | Z | IP | I | 2020-12-07 22:25:24 | 0.1 | y | 200 | 356 | |||
| IIEES SC | MAHB | Z | IP | I | 2020-12-07 22:25:31 | -0.1 | y | 266 | 2 | |||
| IIEES SC | AZR | Z | IP | I | 2020-12-07 22:25:45 | 0.3 | y | 366 | 5 | |||
| IIEES SC | ZNJK | Z | IP | I | 2020-12-07 22:25:45 | 0 | y | 378 | 48 | |||
| IIEES SC | GTMR | Z | IP | I | 2020-12-07 22:25:46 | 0 | y | 389 | 123 | |||
| IIEES SC | ASAO | Z | IP | I | 2020-12-07 22:25:49 | 0.3 | y | 411 | 87 | |||
| IIEES SC | AMIS | Z | IP | I | 2020-12-07 22:25:55 | -0.4 | y | 455 | 131 | |||
| IIEES SC | MRD | Z | IP | I | 2020-12-07 22:25:58 | -0.7 | y | 478 | 1 | |||
| IIEES SC | GHVR | Z | IP | I | 2020-12-07 22:26:03 | 0.5 | y | 522 | 89 | |||
| IIEES SC | CHTH | Z | IP | I | 2020-12-07 22:26:05 | 0.3 | y | 533 | 71 | |||
| IIEES SC | GRMI | Z | IP | I | 2020-12-07 22:26:04 | -0.2 | y | 533 | 23 | |||
| IIEES SC | DAMV | Z | IP | I | 2020-12-07 22:26:12 | -0.4 | y | 600 | 76 | |||
| IIEES SC | KLNJ | Z | IP | I | 2020-12-07 22:26:16 | -5.8 | n | 4 | 678 | 124 | ||
