Magnitude |
:4.5 |
| Date & Time (UTC) | 2020-12-11 20:47:54.7 |
| Date & Time (Local) | 1399/9/22 00:17:54.7 |

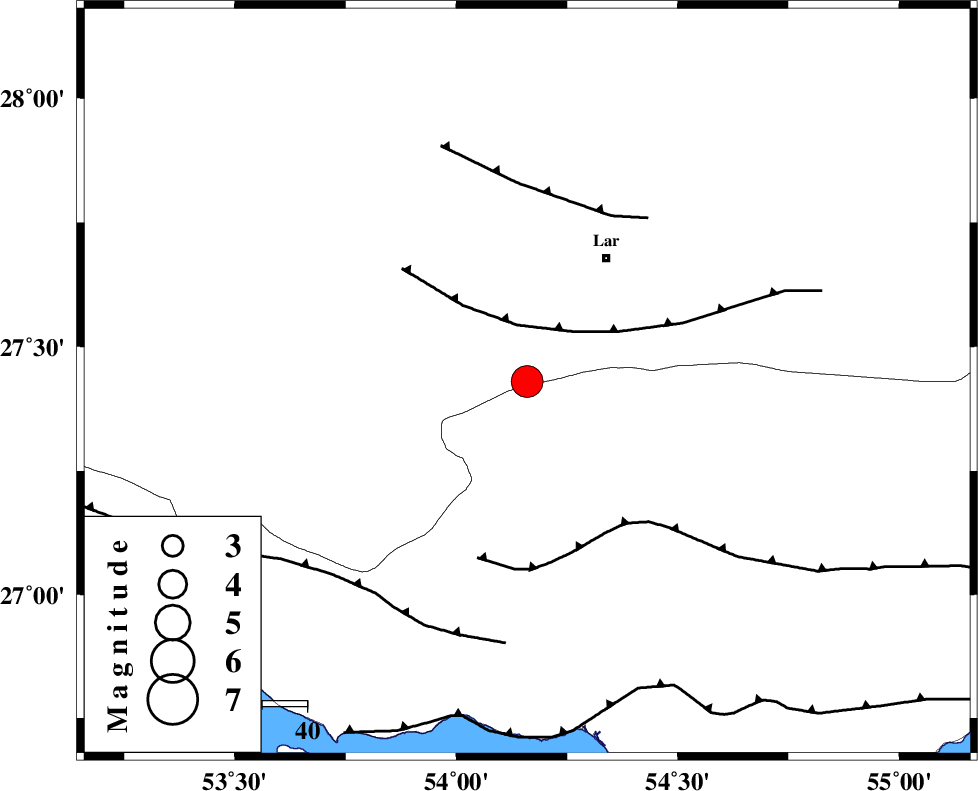

| Location | Lat:27.43 Lon: 54.16 |
| Region | Fars Province, 33 km South-West of Lar |
Nearest Cities |
|
| 14 km East of Bagh, Fars Province | |
| 25 km South of Grash, Fars Province | |
| 33 km North West of Bastak, Hormozgan Province | |
| 33 km South West of Lar, Fars Province | |
| 37 km South West of Latifi, Fars Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| LAR_F (Length: 99 km) , Distance to epicenter: 13 km | |
| MFF1 (Length: 180 km) , Distance to epicenter: 38 km | |
| BERIZ_F (Length: 49 km) , Distance to epicenter: 42 km | |
| Number of Phases | 33 |
| RMS | 0.3 |
| Number of Stations | 19 |
| Error in Latitude | >5 km |
| Error in Longitude | 0 km |
| Error in Depth | 10 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 159801 | IIEES SC | LMD1 | Z | 8300 | 1 | 2020-12-11 20:48:37 | 2020-12-13 09:42:00 | n |
| 159802 | IIEES SC | AHRM | Z | 210 | 1 | 2020-12-11 20:49:40 | 2020-12-13 09:42:00 | n |
| 159803 | IIEES SC | KRBR | Z | 660 | 1 | 2020-12-11 20:50:01 | 2020-12-13 09:42:00 | n |
| 159804 | IIEES SC | YZKH | Z | 110 | 1 | 2020-12-11 20:50:59 | 2020-12-13 09:42:00 | n |
| 159805 | IIEES SC | BSRN | Z | 46 | 1 | 2020-12-11 20:51:32 | 2020-12-13 09:42:00 | n |
| 159806 | IIEES SC | BSRN | Z | 36 | 0.82 | 2020-12-11 20:49:57 | 2020-12-13 09:42:00 | n |
| 159807 | IIEES SC | TABS | Z | 75 | 1 | 2020-12-11 20:51:52 | 2020-12-13 09:42:00 | n |
| 159808 | IIEES SC | TABS | Z | 39 | 1.19 | 2020-12-11 20:50:03 | 2020-12-13 09:42:00 | n |
| 159809 | IIEES SC | GHVR | Z | 88 | 1 | 2020-12-11 20:51:11 | 2020-12-13 09:42:00 | n |
| 159810 | IIEES SC | ASAO | Z | 83 | 1 | 2020-12-11 20:51:28 | 2020-12-13 09:42:00 | n |
| 159811 | IIEES SC | ASAO | Z | 39 | 0.6 | 2020-12-11 20:50:01 | 2020-12-13 09:42:00 | n |
| 159812 | IIEES SC | SHRT | Z | 48 | 0.88 | 2020-12-11 20:50:00 | 2020-12-13 09:42:00 | n |
| 159813 | IIEES SC | SHRO | Z | 12 | 0.65 | 2020-12-11 20:50:27 | 2020-12-13 09:42:00 | n |
| 159814 | IIEES SC | GLO | Z | 110 | 0.76 | 2020-12-11 20:50:20 | 2020-12-13 09:42:00 | n |
| 159815 | IIEES SC | ABGH | Z | 24 | 0.76 | 2020-12-11 20:50:29 | 2020-12-13 09:42:00 | n |
| 159816 | IIEES SC | SBZV | Z | 12 | 0.91 | 2020-12-11 20:50:37 | 2020-12-13 09:42:00 | n |
| 159817 | IIEES SC | TBJM | Z | 5.7 | 0.93 | 2020-12-11 20:50:32 | 2020-12-13 09:42:00 | n |
| 159818 | IIEES SC | SNGE | Z | 20 | 0.47 | 2020-12-11 20:50:25 | 2020-12-13 09:42:00 | n |
| 159819 | IIEES SC | GIDE | Z | 110 | 0.89 | 2020-12-11 20:50:29 | 2020-12-13 09:42:00 | n |
| 159820 | IIEES SC | MRVT | Z | 5.9 | 0.69 | 2020-12-11 20:50:43 | 2020-12-13 09:42:00 | n |
| 159821 | IIEES SC | BJRD | Z | 5.8 | 0.83 | 2020-12-11 20:50:58 | 2020-12-13 09:42:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | LMD1 | Z | IP | I | 2020-12-11 20:48:11 | -0.1 | y | 100 | 264 | |||
| IIEES SC | BNDS | Z | IP | I | 2020-12-11 20:48:26 | -0.6 | n | 4 | 200 | 91 | ||
| IIEES SC | AHRM | Z | IP | I | 2020-12-11 20:48:43 | 0.1 | y | 322 | 300 | |||
| IIEES SC | KRBR | Z | IP | I | 2020-12-11 20:48:50 | 0 | y | 378 | 42 | |||
| IIEES SC | MEH | Z | IP | I | 2020-12-11 20:48:58 | 0.5 | y | 444 | 6 | |||
| IIEES SC | KLNJ | Z | IP | I | 2020-12-11 20:48:54 | -7.1 | n | 4 | 467 | 328 | ||
| IIEES SC | YZKH | Z | IP | I | 2020-12-11 20:49:11 | -0.3 | y | 556 | 4 | |||
| IIEES SC | CHBR | Z | IP | I | 2020-12-11 20:49:23 | -1.4 | n | 4 | 667 | 108 | ||
| IIEES SC | AMIS | Z | IP | I | 2020-12-11 20:49:21 | -4 | n | 4 | 667 | 315 | ||
| IIEES SC | BSRN | Z | IP | I | 2020-12-11 20:49:29 | 0 | y | 700 | 44 | |||
| IIEES SC | GTMR | Z | IP | I | 2020-12-11 20:49:31 | -4 | n | 4 | 745 | 319 | ||
| IIEES SC | TABS | Z | IP | I | 2020-12-11 20:49:35 | -0.6 | y | 745 | 22 | |||
| IIEES SC | KHMZ | Z | IP | I | 2020-12-11 20:49:41 | -2.1 | n | 4 | 811 | 330 | ||
| IIEES SC | SRVN | Z | IP | I | 2020-12-11 20:49:43 | -0.3 | n | 4 | 811 | 90 | ||
| IIEES SC | GHVR | Z | IP | I | 2020-12-11 20:49:45 | -0.7 | y | 834 | 340 | |||
| IIEES SC | ASAO | Z | IP | I | 2020-12-11 20:49:51 | -1 | y | 878 | 333 | |||
| IIEES SC | SHRT | Z | IP | I | 2020-12-11 20:49:55 | 0.2 | y | 911 | 40 | |||
| IIEES SC | DAMV | Z | IP | I | 2020-12-11 20:49:57 | -2 | n | 4 | 934 | 347 | ||
| IIEES SC | SHRO | Z | IP | I | 2020-12-11 20:50:02 | -0.2 | y | 967 | 10 | |||
| IIEES SC | CHTH | Z | IP | I | 2020-12-11 20:50:02 | -2.5 | n | 4 | 978 | 343 | ||
| IIEES SC | GLO | Z | IP | I | 2020-12-11 20:50:09 | 0.8 | y | 1011 | 358 | |||
| IIEES SC | ABGH | Z | IP | I | 2020-12-11 20:50:12 | 0.8 | y | 1034 | 3 | |||
| IIEES SC | SBZV | Z | IP | I | 2020-12-11 20:50:12 | -0.4 | y | 1045 | 18 | |||
| IIEES SC | TBJM | Z | IP | I | 2020-12-11 20:50:12 | -0.7 | y | 1045 | 34 | |||
| IIEES SC | SNGE | Z | IP | I | 2020-12-11 20:50:12 | -3.8 | y | 1067 | 323 | |||
| IIEES SC | GIDE | Z | IP | I | 2020-12-11 20:50:22 | -0.2 | y | 1123 | 339 | |||
| IIEES SC | MRVT | Z | IP | I | 2020-12-11 20:50:25 | -0.6 | y | 1145 | 9 | |||
| IIEES SC | BJRD | Z | IP | I | 2020-12-11 20:50:30 | 0.5 | y | 1178 | 15 | |||
| IIEES SC | SRSL | N | IP | I | 2020-12-11 20:50:36 | -4.8 | n | 4 | 1278 | 320 | ||
| IIEES SC | ASAO | Z | IVmB_BB | 2020-12-11 20:50:27 | y | 1 | 878 | 333 | ||||
| IIEES SC | SHRT | Z | IVmB_BB | 2020-12-11 20:49:59 | y | 1 | 911 | 40 | ||||
| IIEES SC | GLO | Z | IVmB_BB | 2020-12-11 20:50:20 | y | 1 | 1011 | 358 | ||||
| IIEES SC | SBZV | Z | IVmB_BB | 2020-12-11 20:51:06 | y | 1 | 1045 | 18 | ||||
