Magnitude |
:3.4 |
| Date & Time (UTC) | 2020-12-12 06:28:32.0 |
| Date & Time (Local) | 1399/9/22 09:58:32.0 |
| Location | Lat:31.32 Lon: 56.55 |
| Region | Kerman Province, 26 km -West of Ravar |
Nearest Cities |
|
| 23 km North East of Toghroljerd, Kerman Province | |
| 23 km West of Dehali, Kerman Province | |
| 26 km East of Jor, Kerman Province | |
| 26 km North West of Ravar, Kerman Province | |
| 27 km East of Kuhbanan, Kerman Province | |
| Depth | 10 km |
| Agency | |

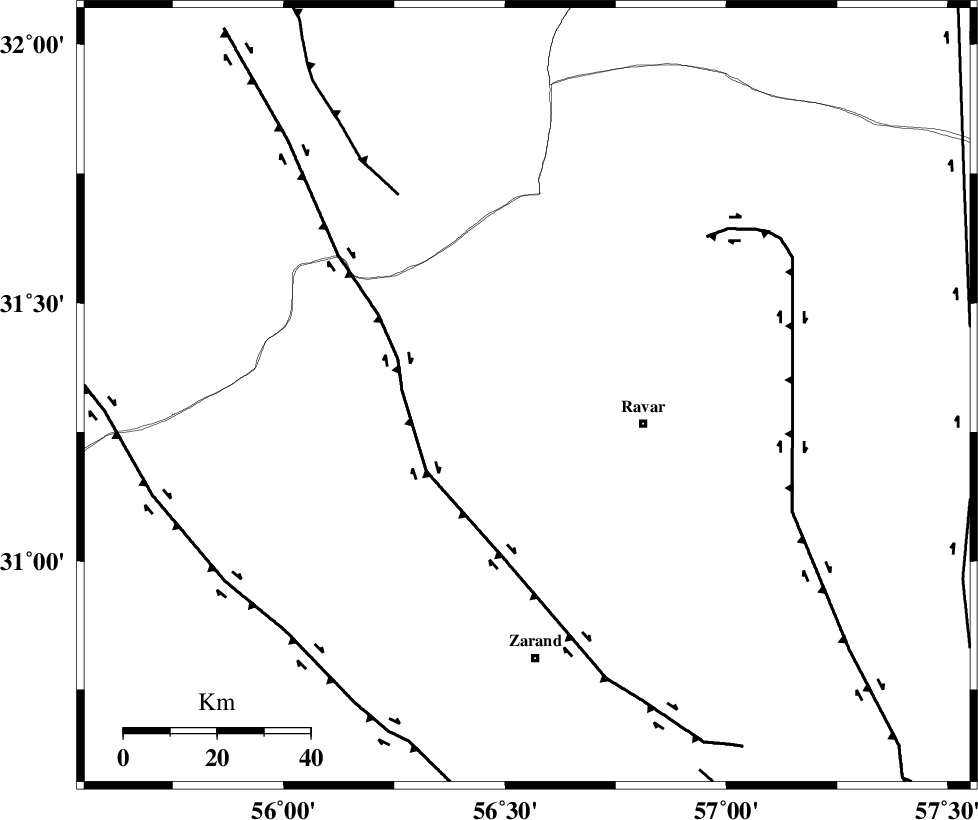

Faults within 150 km: |
|
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 27 km | |
| JAFARABAD_F (Length: 60 km) , Distance to epicenter: 51 km | |
| LAKARKUH_F (Length: 138 km) , Distance to epicenter: 52 km | |
| Number of Phases | 8 |
| RMS | 0.2 |
| Number of Stations | 6 |
| Error in Latitude | >3 km |
| Error in Longitude | 0 km |
| Error in Depth | 331 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 159866 | IIEES SC | YZKH | Z | 320 | 1 | 2020-12-12 06:29:37 | 2020-12-13 12:39:00 | n |
| 159867 | IIEES SC | BSRN | Z | 150 | 1 | 2020-12-12 06:29:55 | 2020-12-13 12:39:00 | n |
| 159868 | IIEES SC | TABS | Z | 83 | 1 | 2020-12-12 06:29:57 | 2020-12-13 12:39:00 | n |
| 159869 | IIEES SC | SHRT | Z | 26 | 1 | 2020-12-12 06:30:52 | 2020-12-13 12:39:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | KRBR | Z | IP | I | 2020-12-12 06:28:56 | -0.4 | n | 4 | 155 | 172 | ||
| IIEES SC | YZKH | Z | IP | I | 2020-12-12 06:29:07 | -0.1 | y | 222 | 302 | |||
| IIEES SC | BSRN | Z | IP | I | 2020-12-12 06:29:11 | -0.3 | y | 255 | 74 | |||
| IIEES SC | TABS | Z | IP | I | 2020-12-12 06:29:12 | -0.1 | y | 266 | 12 | |||
| IIEES SC | SHRT | Z | IP | I | 2020-12-12 06:29:34 | 0.3 | y | 433 | 54 | |||
| IIEES SC | KLNJ | Z | IP | I | 2020-12-12 06:29:39 | 0.1 | y | 478 | 266 | |||
| IIEES SC | SHRO | Z | IP | I | 2020-12-12 06:29:45 | -0.1 | n | 4 | 522 | 354 | ||
| IIEES SC | TBJM | Z | IP | I | 2020-12-12 06:29:50 | 0.2 | y | 556 | 39 | |||
