Magnitude |
:3.9 |
| Date & Time (UTC) | 2020-09-02 12:14:15.9 |
| Date & Time (Local) | 1399/6/12 16:44:15.9 |

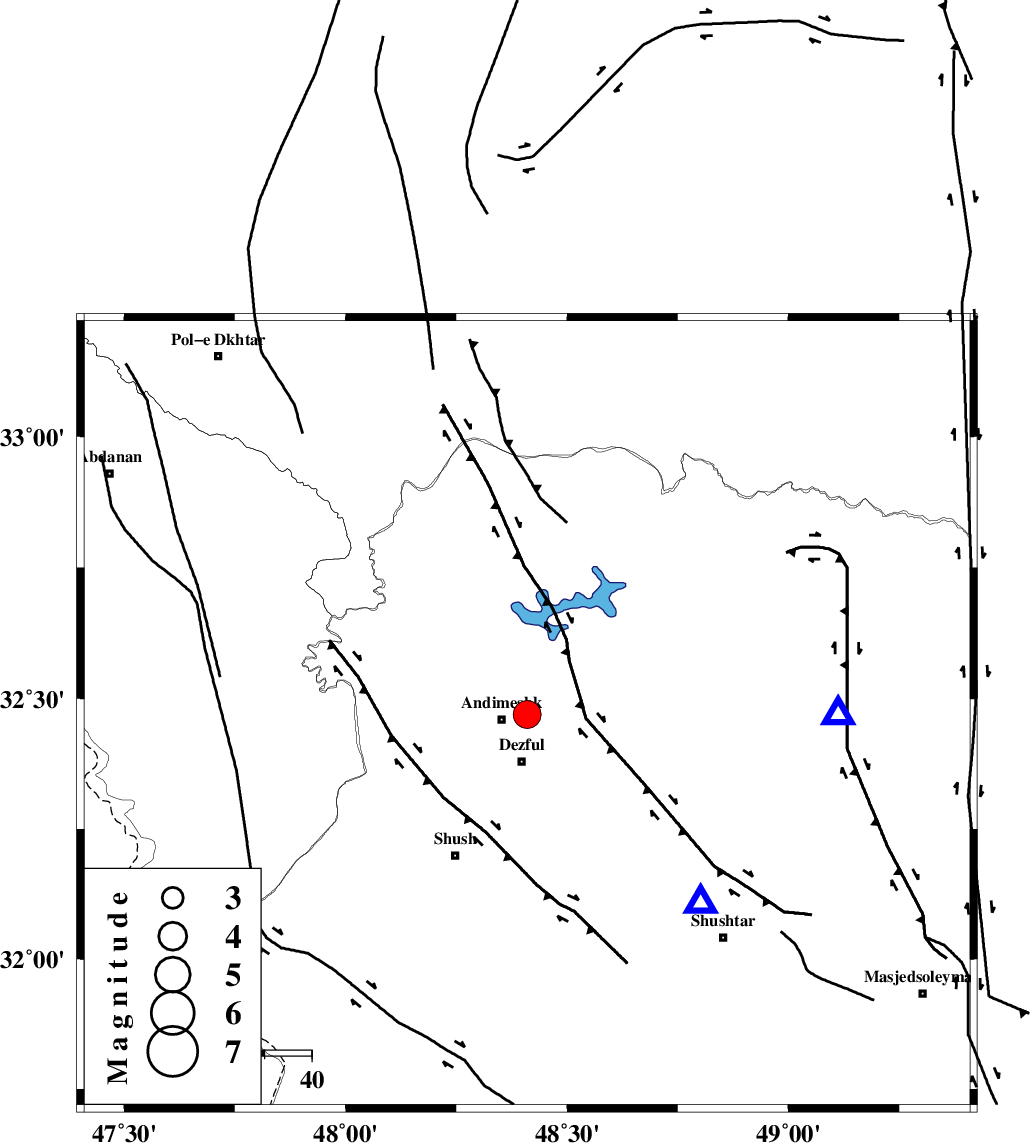

| Location | Lat:32.47 Lon: 48.41 |
| Region | Khoozestan Province, 6 km of Andimeshk |
Nearest Cities |
|
| 6 km North of Andimeshk, Khoozestan Province | |
| 10 km North of Dezful, Khoozestan Province | |
| 19 km North of Shamsabad, Khoozestan Province | |
| 25 km North West of Mahur berenji, Khoozestan Province | |
| 28 km South East of Hoseinieh, Khoozestan Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 9 km | |
| BALARUD_F_Z3 (Length: 53 km) , Distance to epicenter: 33 km | |
| BALARUD_F_Z2 (Length: 58 km) , Distance to epicenter: 37 km | |
| Number of Phases | 14 |
| RMS | 0.4 |
| Number of Stations | 13 |
| Error in Latitude | >2 km |
| Error in Longitude | 0 km |
| Error in Depth | 5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 160648 | IIEES SC | GTMR | Z | 1200 | 1 | 2020-09-02 12:14:42 | 2021-01-10 12:48:00 | n |
| 160649 | IIEES SC | AMIS | Z | 970 | 1 | 2020-09-02 12:14:56 | 2021-01-10 12:48:00 | n |
| 160650 | IIEES SC | KHMZ | Z | 300 | 1 | 2020-09-02 12:15:18 | 2021-01-10 12:48:00 | n |
| 160651 | IIEES SC | ILBA | Z | 860 | 1 | 2020-09-02 12:15:36 | 2021-01-10 12:48:00 | n |
| 160652 | IIEES SC | ASAO | Z | 360 | 1 | 2020-09-02 12:15:42 | 2021-01-10 12:48:00 | n |
| 160653 | IIEES SC | SNGE | Z | 420 | 1 | 2020-09-02 12:15:53 | 2021-01-10 12:48:00 | n |
| 160654 | IIEES SC | NASN | Z | 41 | 1 | 2020-09-02 12:16:23 | 2021-01-10 12:48:00 | n |
| 160655 | IIEES SC | CHTH | Z | 2.7 | 1 | 2020-09-02 12:15:51 | 2021-01-10 12:48:00 | n |
| 160656 | IIEES SC | DAMV | Z | 81 | 1 | 2020-09-02 12:16:36 | 2021-01-10 12:48:00 | n |
| 160657 | IIEES SC | SRSL | Z | 140 | 1 | 2020-09-02 12:16:58 | 2021-01-10 12:48:00 | n |
| 160658 | IIEES SC | GIDE | Z | 170 | 1 | 2020-09-02 12:16:59 | 2021-01-10 12:48:00 | n |
| 160659 | IIEES SC | YZKH | Z | 20 | 1 | 2020-09-02 12:17:23 | 2021-01-10 12:48:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GTMR | Z | IP | I | 2020-09-02 12:14:27 | -0.6 | y | 66 | 90 | |||
| IIEES SC | AMIS | Z | IP | I | 2020-09-02 12:14:36 | 0.1 | y | 122 | 137 | |||
| IIEES SC | KHMZ | Z | IP | I | 2020-09-02 12:14:49 | 0.6 | y | 200 | 46 | |||
| IIEES SC | ILBA | Z | IP | I | 2020-09-02 12:14:54 | -0.2 | y | 244 | 302 | |||
| IIEES SC | ASAO | Z | IP | I | 2020-09-02 12:14:59 | 0.9 | y | 278 | 33 | |||
| IIEES SC | SNGE | Z | IP | I | 2020-09-02 12:15:02 | 0.2 | y | 311 | 341 | |||
| IIEES SC | KLNJ | Z | IP | I | 2020-09-02 12:15:05 | -1.3 | n | 4 | 344 | 118 | ||
| IIEES SC | QABG | Z | IP | I | 2020-09-02 12:15:10 | 0.1 | y | 378 | 17 | |||
| IIEES SC | NASN | Z | IP | I | 2020-09-02 12:15:15 | -0.4 | y | 411 | 85 | |||
| IIEES SC | CHTH | Z | IP | I | 2020-09-02 12:15:20 | -0.1 | y | 455 | 33 | |||
| IIEES SC | DAMV | Z | IP | I | 2020-09-02 12:15:22 | -1 | y | 478 | 43 | |||
| IIEES SC | SRSL | Z | IP | I | 2020-09-02 12:15:26 | 0.6 | y | 500 | 327 | |||
| IIEES SC | GIDE | Z | IP | I | 2020-09-02 12:15:28 | 0.3 | y | 511 | 16 | |||
| IIEES SC | YZKH | Z | IP | I | 2020-09-02 12:15:35 | -0.7 | y | 578 | 91 | |||
