Magnitude |
:3.5 |
| Date & Time (UTC) | 2020-09-02 11:31:30.8 |
| Date & Time (Local) | 1399/6/12 16:01:30.8 |

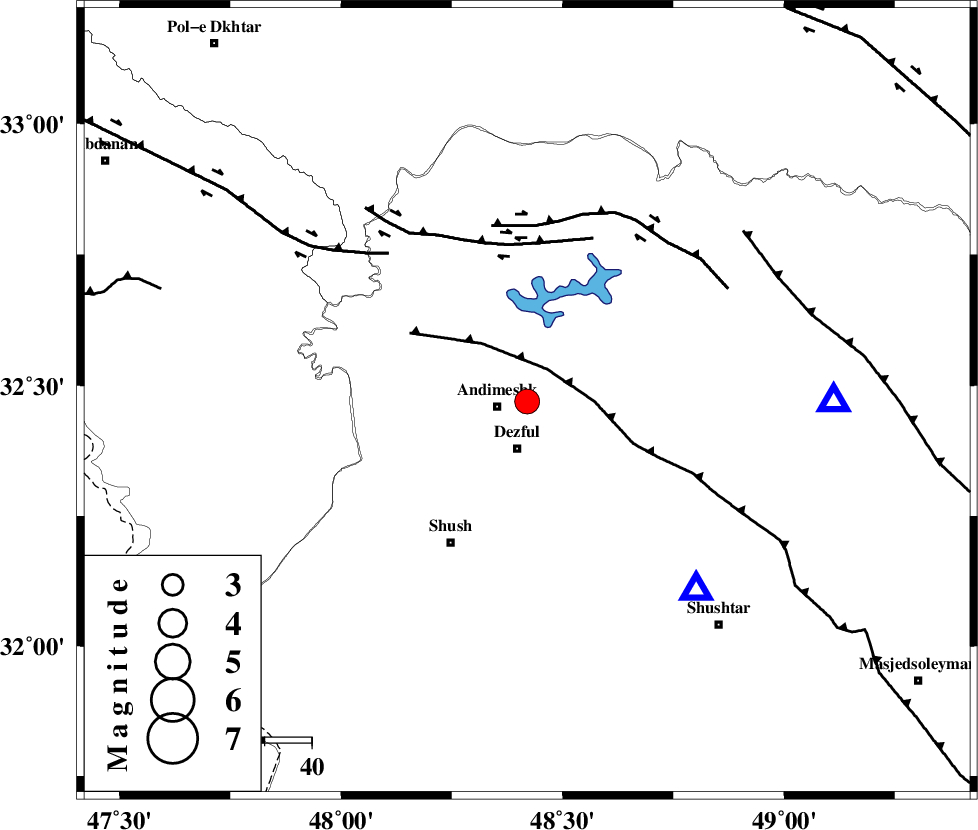

| Location | Lat:32.47 Lon: 48.42 |
| Region | Khoozestan Province, 6 km of Andimeshk |
Nearest Cities |
|
| 6 km North of Andimeshk, Khoozestan Province | |
| 10 km North of Dezful, Khoozestan Province | |
| 19 km North of Shamsabad, Khoozestan Province | |
| 24 km North West of Mahur berenji, Khoozestan Province | |
| 28 km South East of Hoseinieh, Khoozestan Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 8 km | |
| BALARUD_F_Z3 (Length: 53 km) , Distance to epicenter: 33 km | |
| BALARUD_F_Z2 (Length: 58 km) , Distance to epicenter: 37 km | |
| Number of Phases | 13 |
| RMS | 0.3 |
| Number of Stations | 13 |
| Error in Latitude | >2 km |
| Error in Longitude | 0 km |
| Error in Depth | 5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 161081 | IIEES SC | GTMR | Z | 1800 | 1 | 2020-09-02 11:31:56 | 2021-01-19 11:35:00 | n |
| 161082 | IIEES SC | AMIS | Z | 890 | 1 | 2020-09-02 11:32:12 | 2021-01-19 11:35:00 | n |
| 161083 | IIEES SC | KHMZ | Z | 220 | 1 | 2020-09-02 11:32:36 | 2021-01-19 11:35:00 | n |
| 161084 | IIEES SC | ILBA | Z | 66 | 1 | 2020-09-02 11:32:52 | 2021-01-19 11:35:00 | n |
| 161085 | IIEES SC | ASAO | Z | 160 | 1 | 2020-09-02 11:33:01 | 2021-01-19 11:35:00 | n |
| 161086 | IIEES SC | SNGE | Z | 58 | 1 | 2020-09-02 11:33:16 | 2021-01-19 11:35:00 | n |
| 161087 | IIEES SC | KLNJ | Z | 110 | 1 | 2020-09-02 11:33:24 | 2021-01-19 11:35:00 | n |
| 161088 | IIEES SC | NASN | Z | 37 | 1 | 2020-09-02 11:33:35 | 2021-01-19 11:35:00 | n |
| 161089 | IIEES SC | CHTH | Z | 5.3 | 1 | 2020-09-02 11:32:32 | 2021-01-19 11:35:00 | n |
| 161090 | IIEES SC | DAMV | Z | 44 | 1 | 2020-09-02 11:33:53 | 2021-01-19 11:35:00 | n |
| 161091 | IIEES SC | SRSL | Z | 19 | 1 | 2020-09-02 11:34:13 | 2021-01-19 11:35:00 | n |
| 161092 | IIEES SC | YZKH | Z | 15 | 1 | 2020-09-02 11:34:31 | 2021-01-19 11:35:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GTMR | Z | IP | I | 2020-09-02 11:31:42 | -0.3 | y | 66 | 90 | |||
| IIEES SC | AMIS | Z | IP | I | 2020-09-02 11:31:51 | 0.1 | y | 122 | 137 | |||
| IIEES SC | KHMZ | Z | IP | I | 2020-09-02 11:32:04 | 0.8 | y | 200 | 46 | |||
| IIEES SC | ILBA | Z | IP | I | 2020-09-02 11:32:09 | -0.1 | y | 244 | 302 | |||
| IIEES SC | ASAO | Z | IP | I | 2020-09-02 11:32:13 | 0.2 | y | 278 | 33 | |||
| IIEES SC | SNGE | Z | IP | I | 2020-09-02 11:32:17 | 0.3 | y | 311 | 341 | |||
| IIEES SC | KLNJ | Z | IP | I | 2020-09-02 11:32:21 | -0.6 | y | 344 | 118 | |||
| IIEES SC | QABG | Z | IP | I | 2020-09-02 11:32:26 | 0.8 | y | 378 | 17 | |||
| IIEES SC | NASN | Z | IP | I | 2020-09-02 11:32:29 | -0.9 | y | 411 | 85 | |||
| IIEES SC | CHTH | Z | IP | I | 2020-09-02 11:32:35 | -0.5 | y | 455 | 33 | |||
| IIEES SC | DAMV | Z | IP | I | 2020-09-02 11:32:38 | -0.4 | y | 478 | 43 | |||
| IIEES SC | SRSL | Z | IP | I | 2020-09-02 11:32:41 | 0.4 | y | 500 | 327 | |||
| IIEES SC | YZKH | Z | IP | I | 2020-09-02 11:32:51 | -0.3 | y | 578 | 91 | |||
