Magnitude |
:3.5 |
| Date & Time (UTC) | 2021-02-06 16:35:50.6 |
| Date & Time (Local) | 1399/11/18 20:05:50.6 |
| Location | Lat:31.47 Lon: 56.74 |
| Region | Kerman Province, 24 km North of Ravar |
Nearest Cities |
|
| 17 km North of Dehali, Kerman Province | |
| 24 km North of Ravar, Kerman Province | |
| 43 km North East of Kuhbanan, Kerman Province | |
| 45 km North East of Jor, Kerman Province | |
| 47 km North East of Toghroljerd, Kerman Province | |
| Depth | 10 km |
| Agency | |

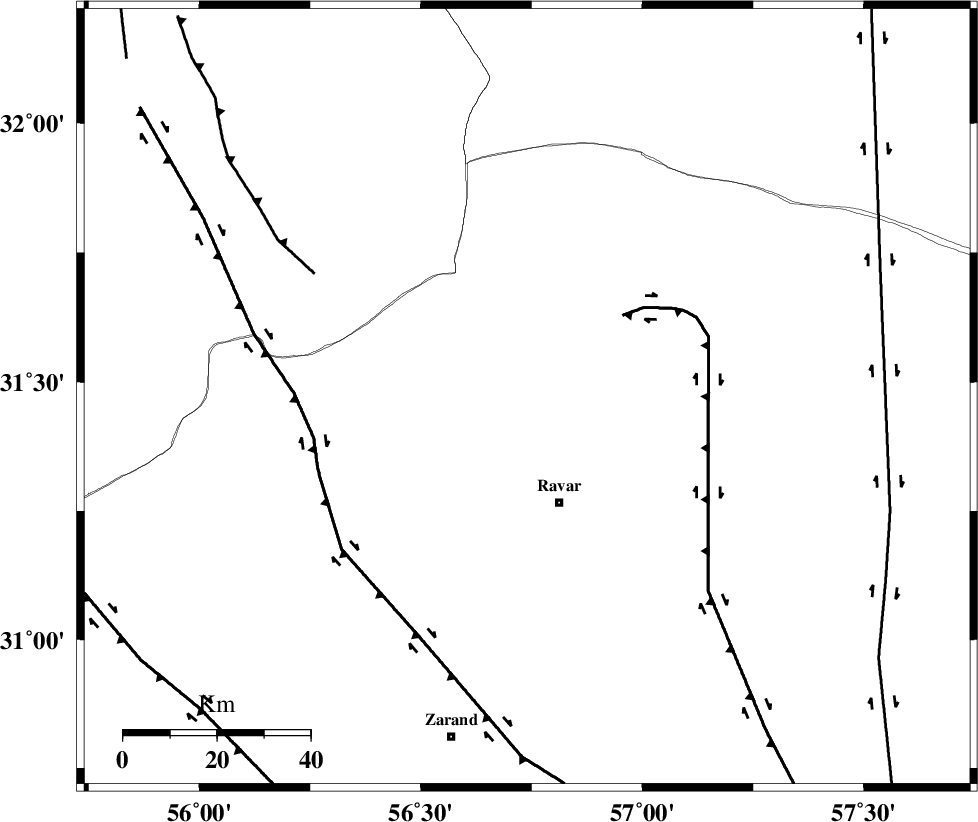

Faults within 150 km: |
|
| LAKARKUH_F (Length: 138 km) , Distance to epicenter: 27 km | |
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 47 km | |
| JAFARABAD_F (Length: 60 km) , Distance to epicenter: 53 km | |
| Number of Phases | 12 |
| RMS | 0.2 |
| Number of Stations | 9 |
| Error in Latitude | >1 km |
| Error in Longitude | 0 km |
| Error in Depth | 317 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 161802 | IIEES SC | YZKH | Z | 240 | 1 | 2021-02-06 16:36:58 | 2021-02-08 09:11:00 | n |
| 161803 | IIEES SC | TABS | Z | 200 | 1 | 2021-02-06 16:37:13 | 2021-02-08 09:11:00 | n |
| 161804 | IIEES SC | NASN | Z | 29 | 1 | 2021-02-06 16:37:54 | 2021-02-08 09:11:00 | n |
| 161805 | IIEES SC | SHRT | Z | 29 | 1 | 2021-02-06 16:37:56 | 2021-02-08 09:11:00 | n |
| 161806 | IIEES SC | SHRO | Z | 2.8 | 1 | 2021-02-06 16:38:22 | 2021-02-08 09:11:00 | n |
| 161807 | IIEES SC | TBJM | Z | 33 | 1 | 2021-02-06 16:38:40 | 2021-02-08 09:11:00 | n |
| 161808 | IIEES SC | MRVT | Z | 14 | 1 | 2021-02-06 16:38:25 | 2021-02-08 09:11:00 | n |
| 161809 | IIEES SC | MRVT | Z | 17 | 0.8 | 2021-02-06 16:37:25 | 2021-02-08 09:11:00 | n |
| 161810 | IIEES SC | BJRD | Z | 3.8 | 1 | 2021-02-06 16:39:39 | 2021-02-08 09:11:00 | n |
| 161811 | IIEES SC | BJRD | Z | 3.3 | 0.84 | 2021-02-06 16:37:37 | 2021-02-08 09:11:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | KRBR | Z | IP | I | 2021-02-06 16:36:15 | -2.6 | n | 4 | 166 | 179 | ||
| IIEES SC | YZKH | Z | IP | I | 2021-02-06 16:36:27 | -0.1 | y | 233 | 297 | |||
| IIEES SC | TABS | Z | IP | I | 2021-02-06 16:36:29 | -0.2 | y | 244 | 8 | |||
| IIEES SC | NASN | Z | IP | I | 2021-02-06 16:36:48 | 0.1 | y | 400 | 292 | |||
| IIEES SC | SHRT | Z | IP | I | 2021-02-06 16:36:49 | -0.3 | y | 411 | 54 | |||
| IIEES SC | ZHSF | Z | IP | I | 2021-02-06 16:36:53 | 0 | y | 433 | 118 | |||
| IIEES SC | SHRO | Z | IP | I | 2021-02-06 16:37:01 | -0.3 | y | 511 | 352 | |||
| IIEES SC | TBJM | Z | IP | I | 2021-02-06 16:37:06 | 0.7 | y | 533 | 38 | |||
| IIEES SC | SBZV | Z | IP | I | 2021-02-06 16:37:07 | 0.4 | n | 4 | 556 | 8 | ||
| IIEES SC | MRVT | Z | IP | I | 2021-02-06 16:37:25 | 0.6 | y | 689 | 355 | |||
| IIEES SC | BJRD | Z | IP | I | 2021-02-06 16:37:25 | 0.1 | y | 689 | 5 | |||
| IIEES SC | MRVT | Z | IVmB_BB | 2021-02-06 16:37:25 | y | 1 | 689 | 355 | ||||
