Magnitude |
:3.7 |
| Date & Time (UTC) | 2021-04-11 02:22:36.3 |
| Date & Time (Local) | 1400/1/22 06:52:36.3 |

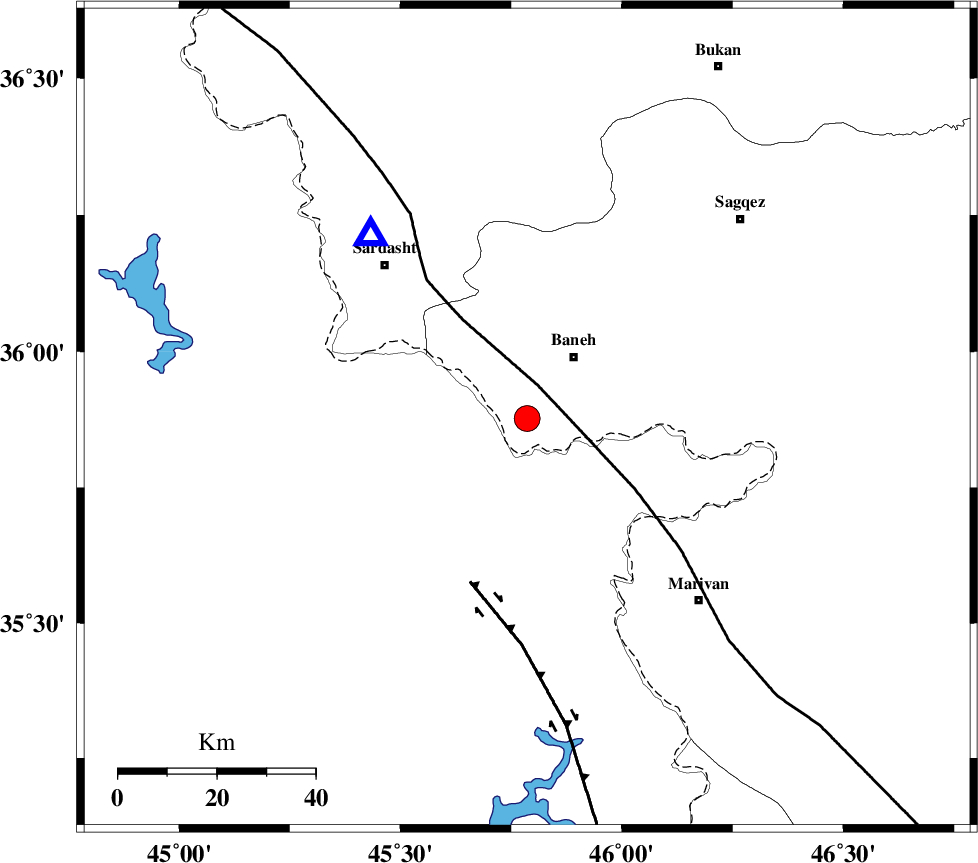

| Location | Lat:35.877 Lon: 45.786 |
| Region | Kurdistan Province, 16 km South-West of Baneh |
Nearest Cities |
|
| 3 km of Armarde, Kurdistan Province | |
| 3 km North of Balekeh, Kurdistan Province | |
| 14 km South of Bolhasan, Kurdistan Province | |
| 15 km West of Buein-esofla, Kurdistan Province | |
| 16 km South West of Baneh, Kurdistan Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| PIRANSHAHR_F (Length: 253 km) , Distance to epicenter: 7 km | |
| HZF4 (Length: 492 km) , Distance to epicenter: 35 km | |
| MFF8 (Length: 48 km) , Distance to epicenter: 129 km | |
| Number of Phases | 12 |
| RMS | 0.7 |
| Number of Stations | 12 |
| Error in Latitude | >3.3 km |
| Error in Longitude | 3.3 km |
| Error in Depth | 9.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 162507 | IIEES SC | MAHB | Z | 4 | 1 | 2021-04-11 02:22:52 | 2021-04-12 05:50:00 | n |
| 162508 | IIEES SC | SNGE | Z | 2 | 1 | 2021-04-11 02:23:02 | 2021-04-12 05:50:00 | n |
| 162509 | IIEES SC | ILBA | Z | 0.4 | 1 | 2021-04-11 02:23:16 | 2021-04-12 05:50:00 | n |
| 162510 | IIEES SC | GIDE | Z | 0.3 | 1 | 2021-04-11 02:23:32 | 2021-04-12 05:50:00 | n |
| 162511 | IIEES SC | ASAO | Z | 0.1 | 1 | 2021-04-11 02:23:35 | 2021-04-12 05:50:00 | n |
| 162512 | IIEES SC | GTMR | Z | 0.1 | 1 | 2021-04-11 02:23:45 | 2021-04-12 05:50:00 | n |
| 162513 | IIEES SC | KLNJ | Z | 0.03 | 1 | 2021-04-11 02:24:19 | 2021-04-12 05:50:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | MAHB | Z | EPg | E | 2021-04-11 02:22:52 | -0.9 | y | 0 | 99 | 356 | ||
| IIEES SC | SNGE | Z | EPg | E | 2021-04-11 02:23:02 | -1 | y | 0 | 166 | 122 | ||
| IIEES SC | AZR | Z | EPn | E | 2021-04-11 02:23:09 | -0.1 | y | 0 | 200 | 5 | ||
| IIEES SC | ILBA | Z | EPn | E | 2021-04-11 02:23:16 | 0.9 | y | 0 | 253 | 171 | ||
| IIEES SC | ZNJK | Z | EPn | E | 2021-04-11 02:23:19 | 0.6 | y | 0 | 275 | 71 | ||
| IIEES SC | QABG | Z | EPn | E | 2021-04-11 02:23:29 | 1.7 | n | 4 | 344 | 93 | ||
| IIEES SC | GRMI | Z | EPn | E | 2021-04-11 02:23:32 | 0.9 | y | 0 | 375 | 30 | ||
| IIEES SC | GIDE | Z | EPn | E | 2021-04-11 02:23:32 | 0.1 | y | 0 | 388 | 73 | ||
| IIEES SC | GZV | Z | EPn | E | 2021-04-11 02:23:42 | 7.3 | n | 4 | 403 | 82 | ||
| IIEES SC | ASAO | Z | EPn | E | 2021-04-11 02:23:35 | -1 | y | 0 | 413 | 111 | ||
| IIEES SC | GTMR | Z | EPn | E | 2021-04-11 02:23:45 | 0.3 | y | 0 | 487 | 141 | ||
| IIEES SC | KLNJ | Z | EPn | E | 2021-04-11 02:24:19 | 0 | y | 0 | 764 | 135 | ||
