Magnitude |
:4.1 |
| Date & Time (UTC) | 2021-07-18 17:32:34.2 |
| Date & Time (Local) | 1400/4/27 22:02:34.2 |

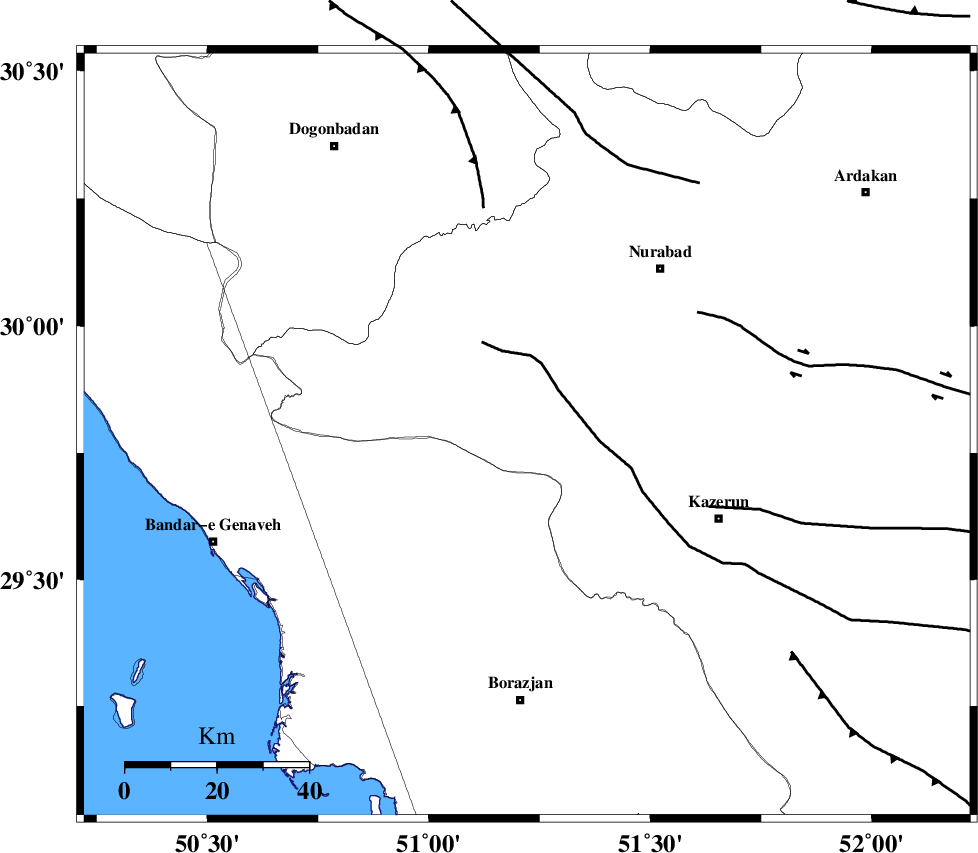

| Location | Lat:29.785 Lon: 51.222 |
| Region | Fars Province, 58 km North of Borazjan |
Nearest Cities |
|
| 27 km North West of Khesht, Fars Province | |
| 30 km North West of Kamaraj, Fars Province | |
| 31 km South of Babamonir, Fars Province | |
| 36 km North West of Deris, Fars Province | |
| 39 km West of Seyyed hasan, Fars Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| BORAZJAN_F (Length: 168 km) , Distance to epicenter: 27 km | |
| KAZERUN_F (Length: 96 km) , Distance to epicenter: 31 km | |
| ZFF3 (Length: 125 km) , Distance to epicenter: 38 km | |
| Number of Phases | 22 |
| RMS | 0.5 |
| Number of Stations | 22 |
| Error in Latitude | >1.8 km |
| Error in Longitude | 1.8 km |
| Error in Depth | 9.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 164206 | IIEES SC | KHRK | Z | 20 | 1 | 2021-07-18 17:32:52 | 2021-07-19 05:13:00 | n |
| 164207 | IIEES SC | KLNJ | Z | 10 | 1 | 2021-07-18 17:32:58 | 2021-07-19 05:13:00 | n |
| 164208 | IIEES SC | LMD1 | Z | 2 | 1 | 2021-07-18 17:33:23 | 2021-07-19 05:13:00 | n |
| 164209 | IIEES SC | GTMR | Z | 1 | 1 | 2021-07-18 17:33:26 | 2021-07-19 05:13:00 | n |
| 164210 | IIEES SC | MEH | Z | 0.1 | 1 | 2021-07-18 17:33:29 | 2021-07-19 05:13:00 | n |
| 164211 | IIEES SC | YZKH | Z | 0.2 | 1 | 2021-07-18 17:33:36 | 2021-07-19 05:13:00 | n |
| 164212 | IIEES SC | GHVR | Z | 0.3 | 1 | 2021-07-18 17:33:47 | 2021-07-19 05:13:00 | n |
| 164213 | IIEES SC | KRBR | Z | 0.2 | 1 | 2021-07-18 17:33:48 | 2021-07-19 05:13:00 | n |
| 164214 | IIEES SC | ILBA | Z | 0.1 | 1 | 2021-07-18 17:34:00 | 2021-07-19 05:13:00 | n |
| 164215 | IIEES SC | SNGE | Z | 0.04 | 1 | 2021-07-18 17:34:07 | 2021-07-19 05:13:00 | n |
| 164216 | IIEES SC | TABS | Z | 0.07 | 1 | 2021-07-18 17:34:09 | 2021-07-19 05:13:00 | n |
| 164217 | IIEES SC | GZV | Z | 0.07 | 1 | 2021-07-18 17:34:13 | 2021-07-19 05:13:00 | n |
| 164218 | IIEES SC | BSRN | Z | 0.03 | 1 | 2021-07-18 17:34:20 | 2021-07-19 05:13:00 | n |
| 164219 | IIEES SC | ABGH | Z | 0.03 | 1 | 2021-07-18 17:34:27 | 2021-07-19 05:13:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | AHRM | Z | EPg | E | 2021-07-18 17:32:51 | -0.2 | y | 0 | 102 | 185 | ||
| IIEES SC | KHRK | Z | EPg | E | 2021-07-18 17:32:52 | 0.1 | y | 0 | 106 | 236 | ||
| IIEES SC | KLNJ | Z | EPg | E | 2021-07-18 17:32:58 | 0.5 | y | 0 | 140 | 15 | ||
| IIEES SC | GHIR | Z | EPn | E | 2021-07-18 17:33:11 | -0.5 | y | 0 | 239 | 134 | ||
| IIEES SC | LMD1 | Z | EPn | E | 2021-07-18 17:33:23 | 0.7 | y | 0 | 331 | 145 | ||
| IIEES SC | GTMR | Z | EPn | E | 2021-07-18 17:33:26 | -0.5 | y | 0 | 359 | 326 | ||
| IIEES SC | MEH | Z | EPn | E | 2021-07-18 17:33:29 | 0.9 | y | 0 | 371 | 61 | ||
| IIEES SC | YZKH | Z | EPn | E | 2021-07-18 17:33:36 | 0.6 | y | 0 | 432 | 48 | ||
| IIEES SC | KHMZ | Z | EPn | E | 2021-07-18 17:33:31 | -7.5 | n | 4 | 454 | 345 | ||
| IIEES SC | GHVR | Z | EPn | E | 2021-07-18 17:33:47 | 0.7 | y | 0 | 521 | 0 | ||
| IIEES SC | KRBR | Z | EPn | E | 2021-07-18 17:33:48 | -0.6 | y | 0 | 536 | 88 | ||
| IIEES SC | ILBA | Z | EPn | E | 2021-07-18 17:34:00 | -1 | y | 0 | 638 | 312 | ||
| IIEES SC | QABG | Z | EPn | E | 2021-07-18 17:34:06 | 0.2 | y | 0 | 675 | 347 | ||
| IIEES SC | SNGE | Z | EPn | E | 2021-07-18 17:34:07 | -0.7 | y | 0 | 692 | 328 | ||
| IIEES SC | TABS | Z | EPn | E | 2021-07-18 17:34:09 | 0.1 | y | 0 | 704 | 53 | ||
| IIEES SC | GZV | Z | EPn | E | 2021-07-18 17:34:13 | -0.3 | y | 0 | 738 | 353 | ||
| IIEES SC | GLO | Z | EPn | E | 2021-07-18 17:34:20 | 0.9 | y | 0 | 784 | 18 | ||
| IIEES SC | BSRN | Z | EPn | E | 2021-07-18 17:34:20 | 0 | y | 0 | 794 | 72 | ||
| IIEES SC | SHRO | Z | EPn | E | 2021-07-18 17:34:24 | -0.3 | y | 0 | 823 | 33 | ||
| IIEES SC | ABGH | Z | EPn | E | 2021-07-18 17:34:27 | 0.5 | y | 0 | 840 | 23 | ||
| IIEES SC | SHRT | Z | EPn | E | 2021-07-18 17:34:40 | -0.7 | y | 0 | 960 | 64 | ||
| IIEES SC | MRVT | Z | EPn | E | 2021-07-18 17:34:44 | 0.2 | y | 0 | 983 | 27 | ||
