Magnitude |
:3.1 |
| Date & Time (UTC) | 2021-09-13 14:14:27.5 |
| Date & Time (Local) | 1400/6/22 18:44:27.5 |

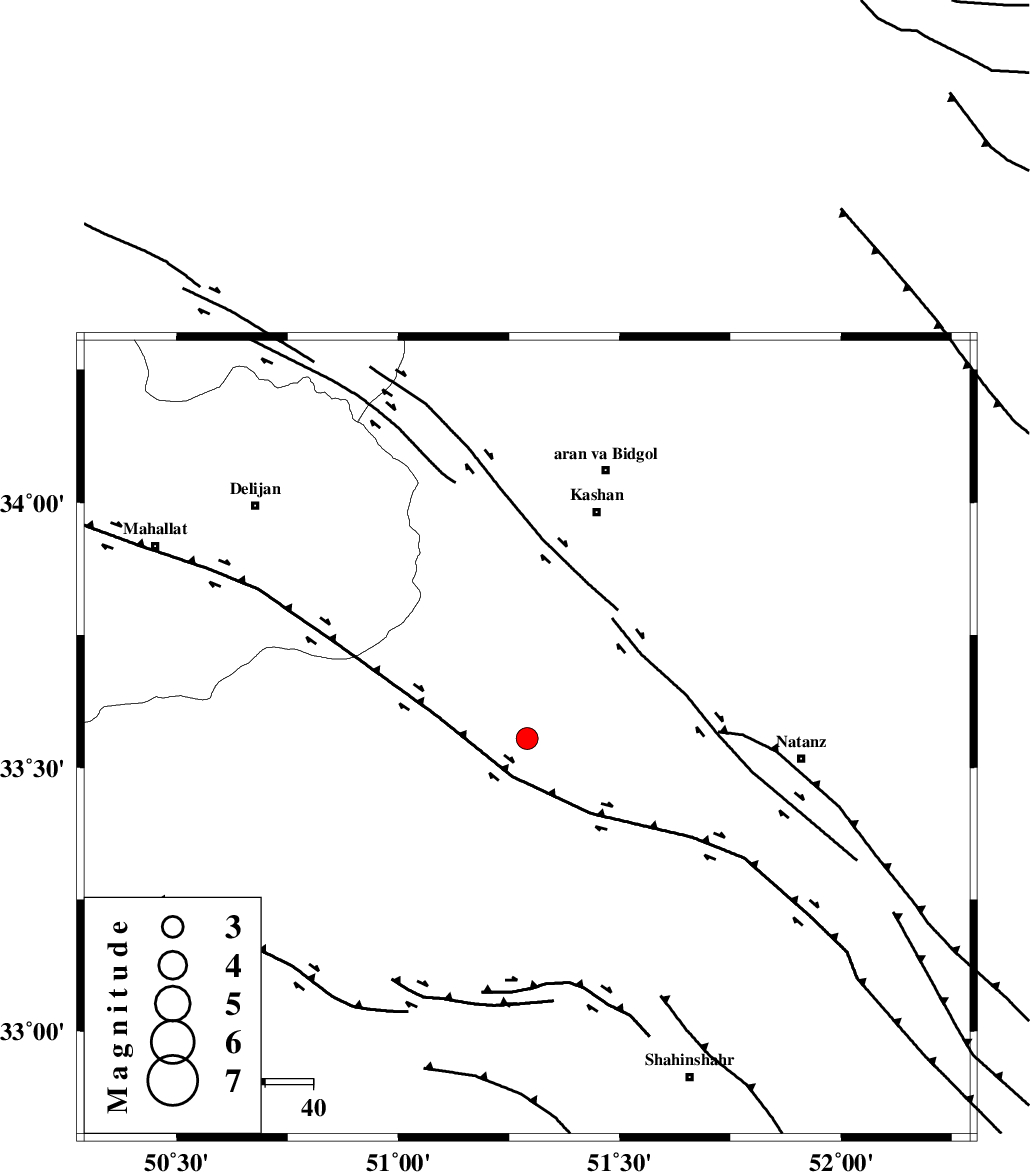

| Location | Lat:33.555 Lon: 51.291 |
| Region | Esfahan Province, 50 km South-West of Kashan |
Nearest Cities |
|
| 8 km of Joshqan qali, Esfahan Province | |
| 17 km North East of Meymeh, Esfahan Province | |
| 17 km South West of Qahrud, Esfahan Province | |
| 18 km North East of Vazvan, Esfahan Province | |
| 21 km North of Vandadeh, Esfahan Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| ZEFREH_F (Length: 124 km) , Distance to epicenter: 34 km | |
| KASHAN_F (Length: 44 km) , Distance to epicenter: 35 km | |
| CHAH_ZANGUL_F (Length: 123 km) , Distance to epicenter: 82 km | |
| Number of Phases | 24 |
| RMS | 0.5 |
| Number of Stations | 24 |
| Error in Latitude | >1.1 km |
| Error in Longitude | 1.1 km |
| Error in Depth | 4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 165204 | IIEES SC | GHVR | Z | 1 | 1 | 2021-09-13 14:14:44 | 2021-09-15 04:34:00 | n |
| 165205 | IIEES SC | GHVR | Z | 1 | 1 | 2021-09-13 14:14:57 | 2021-09-15 04:34:00 | n |
| 165206 | IIEES SC | NASN | Z | 0.2 | 1 | 2021-09-13 14:15:14 | 2021-09-15 04:34:00 | n |
| 165207 | IIEES SC | NASN | Z | 0.2 | 1 | 2021-09-13 14:14:54 | 2021-09-15 04:34:00 | n |
| 165208 | IIEES SC | GTMR | Z | 0.4 | 1 | 2021-09-13 14:15:04 | 2021-09-15 04:34:00 | n |
| 165209 | IIEES SC | GTMR | Z | 0.4 | 1 | 2021-09-13 14:15:32 | 2021-09-15 04:34:00 | n |
| 165210 | IIEES SC | CHTH | Z | 0.2 | 1 | 2021-09-13 14:15:38 | 2021-09-15 04:34:00 | n |
| 165211 | IIEES SC | CHTH | Z | 0.2 | 1 | 2021-09-13 14:15:07 | 2021-09-15 04:34:00 | n |
| 165212 | IIEES SC | THKV | Z | 0.3 | 1 | 2021-09-13 14:15:08 | 2021-09-15 04:34:00 | n |
| 165213 | IIEES SC | KLNJ | Z | 0.1 | 1 | 2021-09-13 14:15:11 | 2021-09-15 04:34:00 | n |
| 165214 | IIEES SC | YZKH | Z | 0.06 | 1 | 2021-09-13 14:15:18 | 2021-09-15 04:34:00 | n |
| 165215 | IIEES SC | SNGE | Z | 0.06 | 1 | 2021-09-13 14:15:26 | 2021-09-15 04:34:00 | n |
| 165216 | IIEES SC | ZNJK | Z | 0.02 | 1 | 2021-09-13 14:15:27 | 2021-09-15 04:34:00 | n |
| 165217 | IIEES SC | ABGH | Z | 0.02 | 1 | 2021-09-13 14:15:34 | 2021-09-15 04:34:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GHVR | Z | EPg | E | 2021-09-13 14:14:44 | -1 | y | 0 | 103 | 358 | ||
| IIEES SC | GHVR | Z | ESg | E | 2021-09-13 14:14:57 | -0.4 | y | 0 | 103 | 358 | ||
| IIEES SC | KHMZ | Z | EPg | E | 2021-09-13 14:14:41 | -7.3 | n | 4 | 125 | 279 | ||
| IIEES SC | KHMZ | Z | ESg | E | 2021-09-13 14:14:54 | -10.1 | n | 4 | 125 | 279 | ||
| IIEES SC | NASN | Z | EPg | E | 2021-09-13 14:14:54 | -0.4 | y | 0 | 164 | 121 | ||
| IIEES SC | NASN | Z | ESg | E | 2021-09-13 14:15:14 | -0.3 | y | 0 | 164 | 121 | ||
| IIEES SC | GTMR | Z | EPn | E | 2021-09-13 14:15:04 | -0.7 | y | 0 | 236 | 239 | ||
| IIEES SC | GTMR | Z | ES | E | 2021-09-13 14:15:32 | 0 | y | 0 | 236 | 239 | ||
| IIEES SC | CHTH | Z | EPn | E | 2021-09-13 14:15:07 | -0.8 | y | 0 | 261 | 357 | ||
| IIEES SC | CHTH | Z | ES | E | 2021-09-13 14:15:38 | 0.2 | y | 0 | 261 | 357 | ||
| IIEES SC | THKV | Z | EPn | E | 2021-09-13 14:15:08 | -0.1 | y | 0 | 265 | 352 | ||
| IIEES SC | KLNJ | Z | EPn | E | 2021-09-13 14:15:11 | 0.3 | y | 0 | 284 | 174 | ||
| IIEES SC | QABG | Z | EPn | E | 2021-09-13 14:15:11 | -0.3 | y | 0 | 286 | 327 | ||
| IIEES SC | ANJ | Z | EPn | E | 2021-09-13 14:15:16 | 0.5 | y | 0 | 321 | 49 | ||
| IIEES SC | GZV | Z | EPn | E | 2021-09-13 14:15:17 | 0.3 | y | 0 | 329 | 343 | ||
| IIEES SC | YZKH | Z | EPn | E | 2021-09-13 14:15:18 | 0.8 | y | 0 | 334 | 113 | ||
| IIEES SC | MEH | Z | EPn | E | 2021-09-13 14:15:28 | 3.8 | n | 4 | 394 | 128 | ||
| IIEES SC | GIDE | Z | EPn | E | 2021-09-13 14:15:24 | -0.3 | y | 0 | 397 | 340 | ||
| IIEES SC | GLO | Z | EPn | E | 2021-09-13 14:15:26 | 0.7 | y | 0 | 401 | 35 | ||
| IIEES SC | SNGE | Z | EPn | E | 2021-09-13 14:15:26 | 0.4 | y | 0 | 401 | 295 | ||
| IIEES SC | ZNJK | Z | EPn | E | 2021-09-13 14:15:27 | -0.1 | y | 0 | 419 | 325 | ||
| IIEES SC | ILBA | Z | EPn | E | 2021-09-13 14:15:34 | 0.5 | y | 0 | 472 | 271 | ||
| IIEES SC | ABGH | Z | EPn | E | 2021-09-13 14:15:34 | -0.4 | y | 0 | 476 | 42 | ||
| IIEES SC | SHRO | Z | EPn | E | 2021-09-13 14:15:39 | 0.6 | y | 0 | 511 | 58 | ||
