Magnitude |
:4 |
| Date & Time (UTC) | 2021-09-29 11:01:45.1 |
| Date & Time (Local) | 1400/7/7 14:31:45.1 |

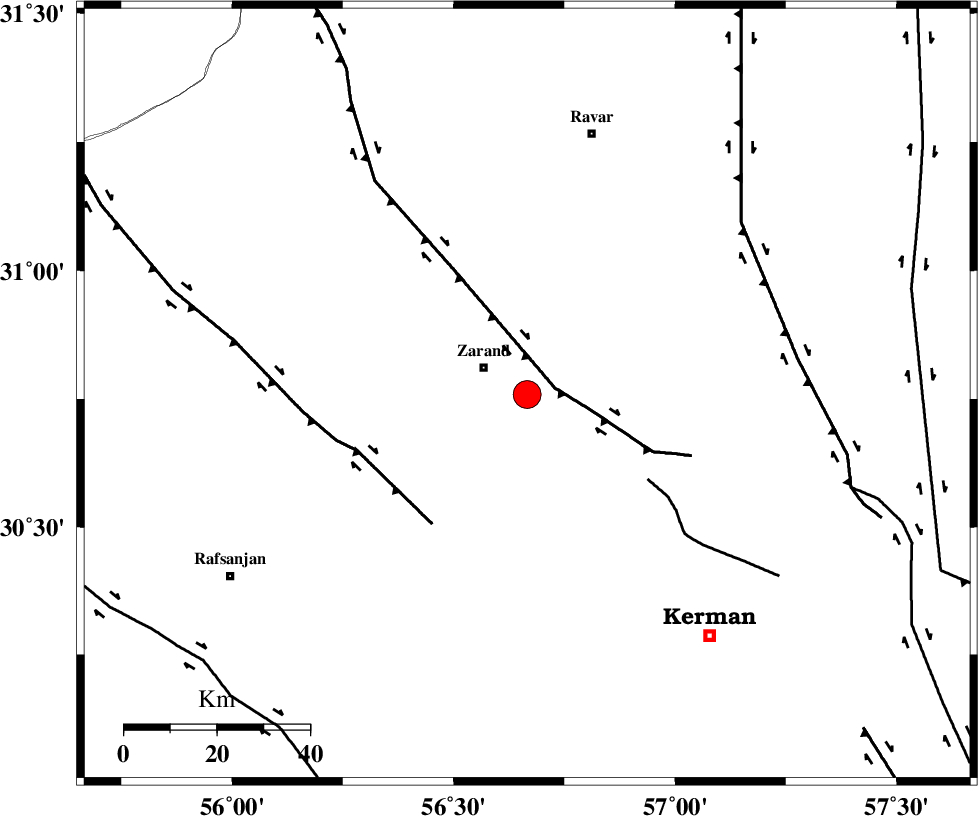

| Location | Lat:30.759 Lon: 56.666 |
| Region | Kerman Province, 11 km of Zarand |
Nearest Cities |
|
| 3 km North of Bahaabad, Kerman Province | |
| 11 km of Zarand, Kerman Province | |
| 12 km East of Mohammadabad, Kerman Province | |
| 12 km North West of Khankuk, Kerman Province | |
| 15 km West of Hatkan, Kerman Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 6 km | |
| CHATRUD_F (Length: 37 km) , Distance to epicenter: 32 km | |
| DARIVAN_F (Length: 131 km) , Distance to epicenter: 35 km | |
| Number of Phases | 13 |
| RMS | 0.5 |
| Number of Stations | 13 |
| Error in Latitude | >1.8 km |
| Error in Longitude | 1.8 km |
| Error in Depth | 8.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 165460 | IIEES SC | KRBR | Z | 10 | 1 | 2021-09-29 11:01:59 | 2021-10-03 04:51:00 | n |
| 165461 | IIEES SC | MEH | Z | 3 | 1 | 2021-09-29 11:02:19 | 2021-10-03 04:51:00 | n |
| 165462 | IIEES SC | YZKH | Z | 2 | 1 | 2021-09-29 11:02:26 | 2021-10-03 04:51:00 | n |
| 165463 | IIEES SC | TABS | Z | 0.6 | 1 | 2021-09-29 11:02:33 | 2021-10-03 04:51:00 | n |
| 165464 | IIEES SC | NASN | Z | 0.4 | 1 | 2021-09-29 11:02:47 | 2021-10-03 04:51:00 | n |
| 165465 | IIEES SC | SHRT | Z | 0.09 | 1 | 2021-09-29 11:02:51 | 2021-10-03 04:51:00 | n |
| 165466 | IIEES SC | SHRO | Z | 0.1 | 1 | 2021-09-29 11:03:05 | 2021-10-03 04:51:00 | n |
| 165467 | IIEES SC | TBJM | Z | 0.1 | 1 | 2021-09-29 11:03:07 | 2021-10-03 04:51:00 | n |
| 165468 | IIEES SC | GHVR | Z | 0.2 | 1 | 2021-09-29 11:03:14 | 2021-10-03 04:51:00 | n |
| 165469 | IIEES SC | SRVN | Z | 0.03 | 1 | 2021-09-29 11:03:17 | 2021-10-03 04:51:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | KRBR | Z | EPg | E | 2021-09-29 11:01:59 | -0.8 | y | 0 | 86 | 174 | ||
| IIEES SC | MEH | Z | EPn | E | 2021-09-29 11:02:19 | 0.2 | y | 0 | 208 | 290 | ||
| IIEES SC | YZKH | Z | EPn | E | 2021-09-29 11:02:26 | 0.4 | y | 0 | 267 | 313 | ||
| IIEES SC | TABS | Z | EPn | E | 2021-09-29 11:02:33 | -0.2 | y | 0 | 323 | 8 | ||
| IIEES SC | BNDS | Z | EPn | E | 2021-09-29 11:02:39 | -0.1 | y | 0 | 375 | 187 | ||
| IIEES SC | ZHSF | Z | EPn | E | 2021-09-29 11:02:41 | -2.8 | n | 4 | 415 | 108 | ||
| IIEES SC | NASN | Z | EPn | E | 2021-09-29 11:02:47 | 0.5 | y | 0 | 430 | 302 | ||
| IIEES SC | GHIR | Z | EPn | E | 2021-09-29 11:02:49 | 0.4 | y | 0 | 450 | 232 | ||
| IIEES SC | SHRT | Z | EPn | E | 2021-09-29 11:02:51 | 0.4 | y | 0 | 468 | 47 | ||
| IIEES SC | SHRO | Z | EPn | E | 2021-09-29 11:03:05 | -0.8 | y | 0 | 585 | 354 | ||
| IIEES SC | TBJM | Z | EPn | E | 2021-09-29 11:03:07 | -0.8 | y | 0 | 606 | 34 | ||
| IIEES SC | GHVR | Z | EPn | E | 2021-09-29 11:03:14 | 0.5 | y | 0 | 655 | 309 | ||
| IIEES SC | SRVN | Z | EPn | E | 2021-09-29 11:03:17 | 0.7 | y | 0 | 671 | 124 | ||
